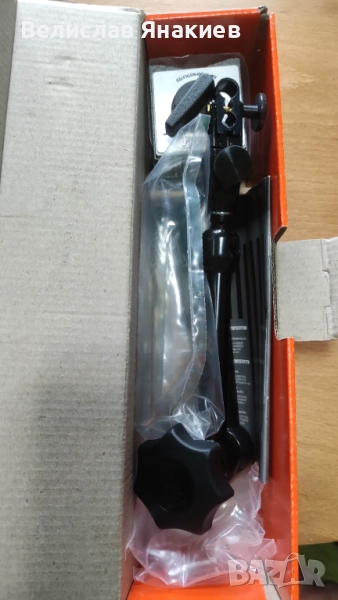

Магнитна измервателна стойка с фино регулиране

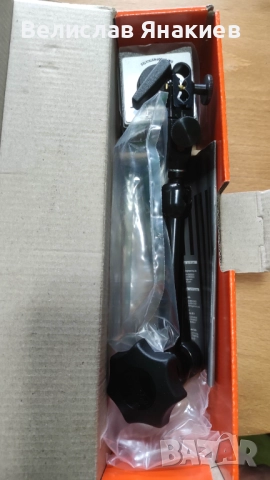

Чисто нова висококачествена мегнитна стойка с прецизни регулиране, с кутията. Купена е от Hoffmann, прикачвам линк от сайта с пълното описание.

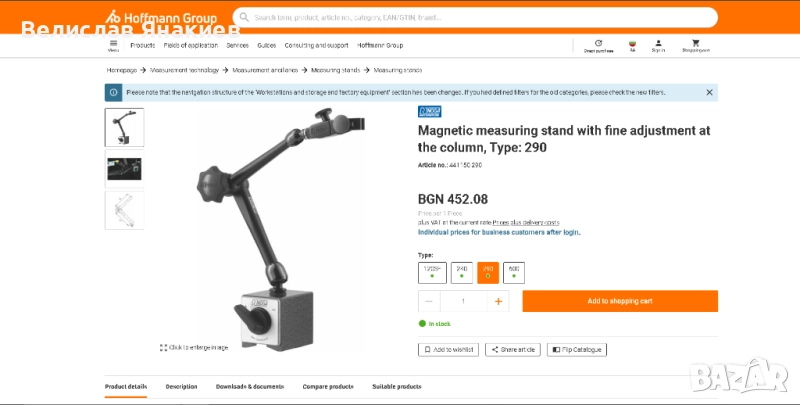

https://www.hoffmann-group.com/BG/en/soltec/p/441150-290?tId=468&search=441150%2F290
Version:

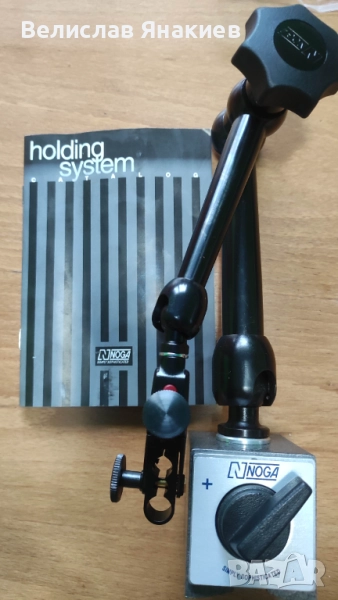

Mechanical magnetic measuring stand with central locking mechanism. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Magnetic base with rotary switch and Vee sole.
Universal indicator holder with fine adjustment, for clamping shank ⌀ 8 mm, ⌀ 6 mm, ⌀ 3/8 inch and indicators with dovetail clamping shanks.
Version - image:

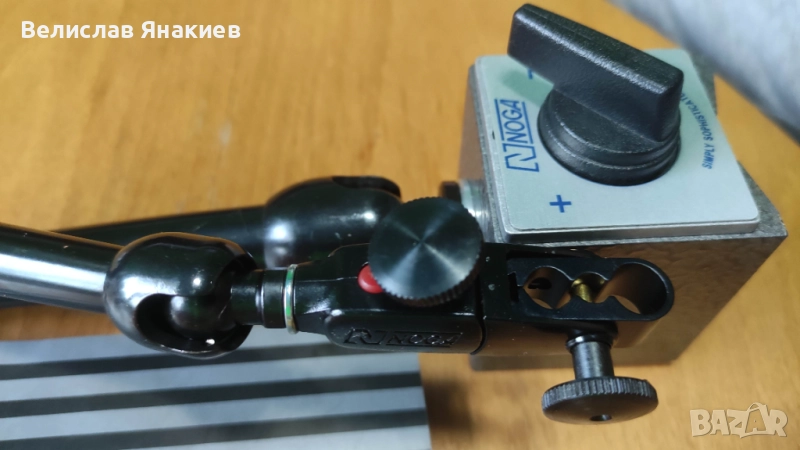

Fine adjustment at the indicator holder
Technical Data
Throat 317 mm
Length of jointed arm L1 133 mm
Length of jointed arm L2 113 mm
Connection thread at bottom M8
Magnetic force 800 N
maximum loading 8 kg
Magnetic base length 60 mm
Magnetic base width 50 mm
Magnetic base height 55 mm
Type of product measuring stand
Identification & Classification

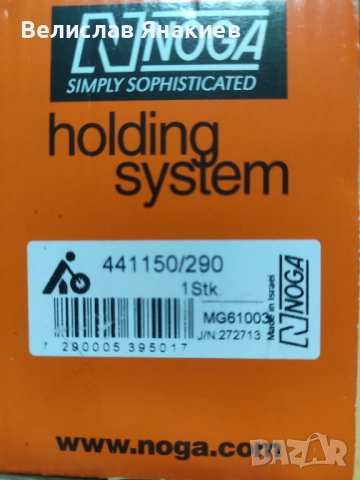

Article number 441150 290
EAN / GTIN 7290005395017
