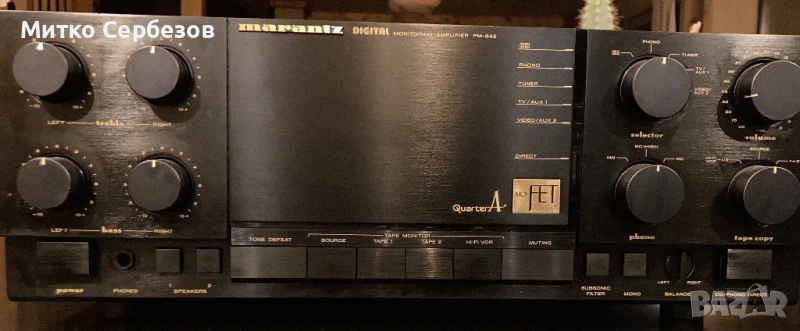

Marantz PM-84 mk II → Обява 52136430

Обявата изтича на 20-ти Ноември, до тогава намалям цената от 1750лв на 1400лв, след това се сваля от продажба. Страхотна машина! Няма смисъл от хвалби. Работи перфектно. Не е имал повреди. Купих лампов усилвател и този почти не го ползвам. Предпочитам лично предаване. Намира се в София.
С куриер само с предплата.
Договаряне само на място при оглед.

Усилвател Marantz PM-84MarkII - 120 W. +120 W. 30W+30W (чист клас A, 8 ома, 10Hz - 80kHz).
Marantz integrated Amplifier model PM84 MK2 class AB amplifier series.

Type Pre-main amplifier
Rated output 130W + 130WClass AB, 8 Ω, 20 Hz to 20 kHz)

30W + 30W (Pure Class A, 8 Ω, 20 Hz to 20 kHz)

190W + 190W (4 ω, 1 kHz)

Output Bandwidth (8 Ω, 0.03% THD) 5 Hz to 40 kHz

Total Harmonic Distortion Factor (20 Hz to 20 kHz, 8 Ω) 0.015%

Cross modulation distortion factor 0.015%

Frequency characteristic 20 Hz ~ 20 kHz + 0 -0.2 dB

Damping factor (8 Ω) 120

Input Sensitivity / Impedance Phono MM : 2.5mV/47k Ω

Phono MC : 250 μ V/100 Ω

Phono High MC : 2.5mV/1k Ω

Tape, Tuner, Aux, CD : 150mV/47k Ω

Output impedance Tape out : 270 Ω

RIAA deviation 20 Hz to 20 kHz ± 0.2 dB

Signal-to-noise ratio (IHF-A network) Phono MM:90dB

Phono MC:76dB

Tape, Tuner, Aux, CD : 100 dB

Phono maximum allowable input MM:220mV
MC:24mV
Tone control characteristics Bass : ± 10 dB (100 Hz)
Treble : ± 10 dB (10 kHz)
Subsonic filter characteristics 50Hz

Pwer 100 V, 50/60Hz

Power consumption 290W

External dimensions Width 416x Height 146x Depth 410 mm

Weight 18kg

Multi region Multi Voltage

110/120-220/240 volts

Made in Japan

120/130 watt per channel 8 ohms

180/190 watts per channel into 4 ohms first 30-60 watts pure class A

This is a pre-main amplifier equipped with Marantz digital support technology and designed for high sound quality with Quarter A and AVSS.

A Quarter A circuit has been developed and installed on the PM-84 in order to achieve both high output, which does not clip even at high level, and quality at low output, which reproduces low level.

This Quarter A operates in pure A class with excellent linearity for low level up to 1/4 (quarter) of maximum output, and moves to AB class at higher level to realize high power.

Very low hours and is in spectacular condition. Serviced. Tested and works as it came new.

Very heavy 18KG. I have listed a PM84 MK2 in my other listing.

This is a pre-main amplifier equipped with Marantz digital support technology and designed for high sound quality with Quarter A and AVSS.

A Quarter A circuit has been developed and installed on the PM-84 in order to achieve both high output, which does not clip even at high level, and quality at low output, which reproduces low level.

This Quarter A operates in pure A class with excellent linearity for low level up to 1/4 (quarter) of maximum output, and moves to AB class at higher level to realize high power.

Each operation achieves a smooth shift by controlling the bias current with a high-speed switch circuit.

Equipped with an AVSS (Auto Voltage Shift Supply) that shifts the output supply voltage according to the power. The optimum output supply voltage allows the power element to operate in a region with minimal distortion and noise, etc., realizing high quality at all power levels from small output to large output.

Moreover, improves stability by suppressing unnecessary temperature rise at low power.

Designed for low impedance, it maintains power even when the speaker impedance momentarily fluctuates to an extremely low value.

Equipped with a direct switch, power is directly connected to enable higher SN ratio and high-speed signal transmission.

Analog disk playback is handled by configuring a phono amplifier with a dedicated phono IC and dual FET.

In addition, it has a 2-position MC input.
