DBX BX-3 MK2 CX-3 → Обява 52396750

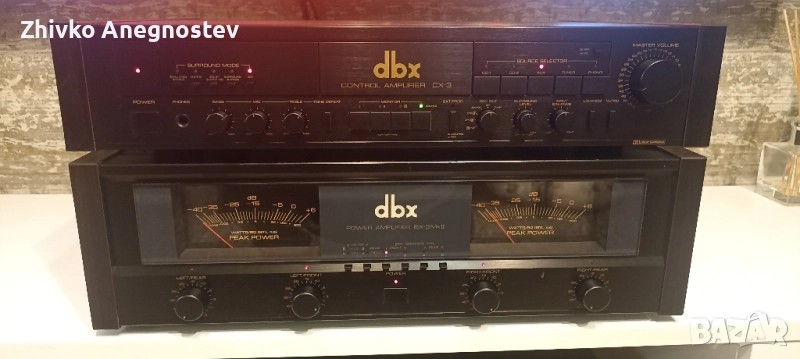

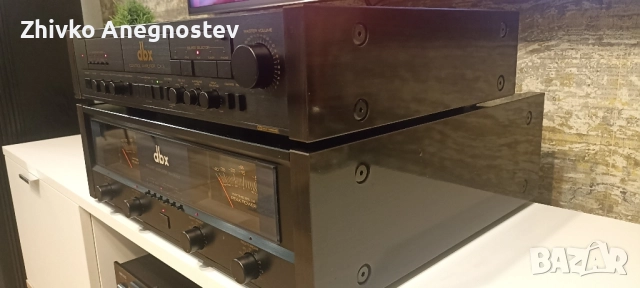

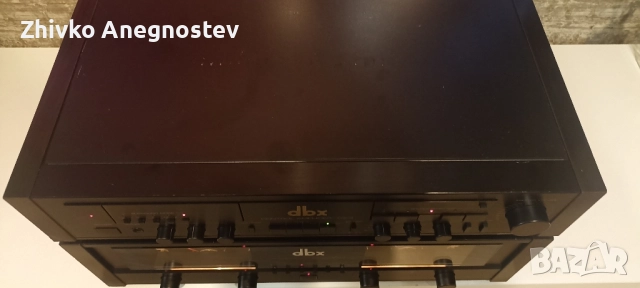

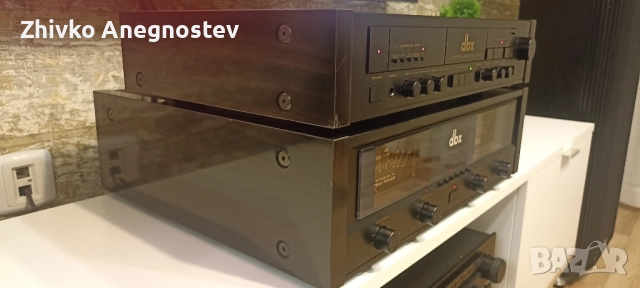

DBX BX-3 MK2 CX-3
Състояние
Използвано
Доставка
Лично предаване; Купувача

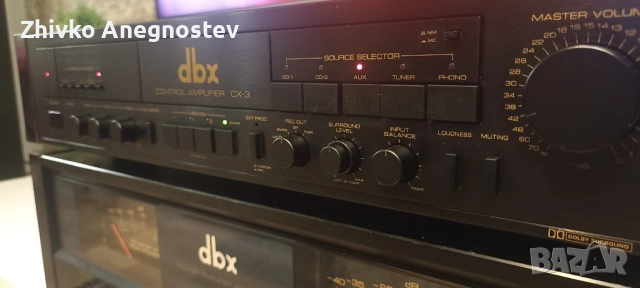

Пред-усилвател CX-3
Type Control amplifier
Phono MM:2.5mV
Phono MC:0.25mV
CD, Line, Tape : 200 mv
Maximum allowable input Phono MM:150mV
Phono MC:15mV
Input impedance Phono MM : 47k Ω
Phono MC : 100 Ω
CD, Line, Tape : 30k Ω
Frequency characteristic Phono MM : 20 Hz to 20 kHz ± 0.25 dB
CD, Line, Tape : 10 Hz to 50 kHz + 0 -1dB
S/N ratio (IHF-A) Phono MM : 85 dB or more
Phono MC : 67 dB or more
CD, Line, Tape : 100 dB or more
Total harmonic distortion factor Phono MM : 0.01% (20 Hz to 20 kHz, 3 V)
Phono MC : 0.02% (20 Hz to 20 kHz, 3 V)
CD, Line, Tape : 0.008% (20 Hz to 20 kHz, 5 V)
Maximum output level 8 v (20 Hz ~ 20 kHz)
Output impedance 600 Ω
Tone control Bass : + / - 10 dB
Mid : ± 10 dB
Treble : + / - 10 dB
Infrasonic filter -3dB (-6dB/oct) at 15 hz
Surround part Dolby Surround
Delay time : 20 ms
Total harmonic distortion rate : 0.2% (1 kHz)
Pwer 100 VAC, 50Hz/60Hz
Power consumption 11W

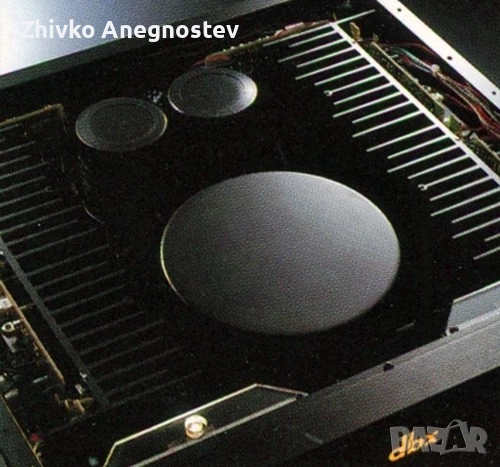

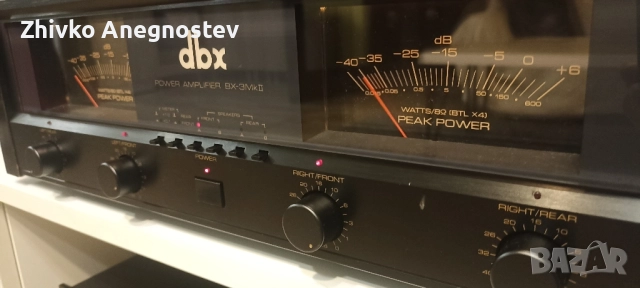

Усилвател BX-3 MK2
Type Power amplifier
Actual Output (RMS, 20 Hz to 20 kHz) When four channels are driven
150Wx4 (4 Ω, THD 0.02% or less)
105Wx4 (6 Ω, THD 0.003% or Less)
90Wx4 (8 Ω, THD 0.003% or Less)
When 3 channels are driven
150Wx2 (4 Ω, THD 0.02% or less)
400W (4 Ω, THD 0.02% or less)
105Wx2 (6 Ω, THD 0.003% or less)
300W (6 Ω, THD 0.01% or less) 90Wx2 (8 Ω, THD 0.003% or less)
220W (8 Ω, THD 0.01% or less)
When 2 channels are driven
400Wx2 (4 Ω, THD 0.02% or less)
300Wx2 (6 Ω, THD 0.01% or less)
220Wx2 (8 Ω, THD 0.01% or less)
Dynamic Power (IHF A-202) Independent mode time
400W/ch (2 Ω)
300W/ch (4 Ω)
200W/ch (6 Ω)
160W/ch (8 Ω)
Bridge connection time
850W/ch (2 Ω)
800W/ch (4 Ω)
650W/ch (6 Ω)
550W/ch (8 Ω)
Load impedance 2 Ω ~ 16 Ω
Total harmonic distortion factor 0.003% or Less (at 4-channel rated output)
Cross modulation distortion factor 0.003% or Less (at 4-channel rated output)
Input sensitivity 1.2 v (in independent mode)
0.9 v (Bridge Connected)
Input impedance 20k Ω
Damping factor 50 or more
S/N ratio (IHF-A) 115dB
Channel separation 90 dB or more
Pwer 100 VAC, 50Hz/60Hz
Power consumption 600W
External dimensions Width 475x Height 143x Depth 450 mm
Weight 21.5kg
Type Control amplifier
Phono MM:2.5mV
Phono MC:0.25mV
CD, Line, Tape : 200 mv
Maximum allowable input Phono MM:150mV
Phono MC:15mV
Input impedance Phono MM : 47k Ω
Phono MC : 100 Ω
CD, Line, Tape : 30k Ω
Frequency characteristic Phono MM : 20 Hz to 20 kHz ± 0.25 dB
CD, Line, Tape : 10 Hz to 50 kHz + 0 -1dB
S/N ratio (IHF-A) Phono MM : 85 dB or more
Phono MC : 67 dB or more
CD, Line, Tape : 100 dB or more
Total harmonic distortion factor Phono MM : 0.01% (20 Hz to 20 kHz, 3 V)
Phono MC : 0.02% (20 Hz to 20 kHz, 3 V)
CD, Line, Tape : 0.008% (20 Hz to 20 kHz, 5 V)
Maximum output level 8 v (20 Hz ~ 20 kHz)
Output impedance 600 Ω
Tone control Bass : + / - 10 dB
Mid : ± 10 dB
Treble : + / - 10 dB
Infrasonic filter -3dB (-6dB/oct) at 15 hz
Surround part Dolby Surround
Delay time : 20 ms
Total harmonic distortion rate : 0.2% (1 kHz)
Pwer 100 VAC, 50Hz/60Hz
Power consumption 11W
Усилвател BX-3 MK2
Type Power amplifier
Actual Output (RMS, 20 Hz to 20 kHz) When four channels are driven
150Wx4 (4 Ω, THD 0.02% or less)
105Wx4 (6 Ω, THD 0.003% or Less)
90Wx4 (8 Ω, THD 0.003% or Less)
When 3 channels are driven
150Wx2 (4 Ω, THD 0.02% or less)
400W (4 Ω, THD 0.02% or less)
105Wx2 (6 Ω, THD 0.003% or less)
300W (6 Ω, THD 0.01% or less) 90Wx2 (8 Ω, THD 0.003% or less)
220W (8 Ω, THD 0.01% or less)
When 2 channels are driven
400Wx2 (4 Ω, THD 0.02% or less)
300Wx2 (6 Ω, THD 0.01% or less)
220Wx2 (8 Ω, THD 0.01% or less)
Dynamic Power (IHF A-202) Independent mode time
400W/ch (2 Ω)
300W/ch (4 Ω)
200W/ch (6 Ω)
160W/ch (8 Ω)
Bridge connection time
850W/ch (2 Ω)
800W/ch (4 Ω)
650W/ch (6 Ω)
550W/ch (8 Ω)
Load impedance 2 Ω ~ 16 Ω
Total harmonic distortion factor 0.003% or Less (at 4-channel rated output)
Cross modulation distortion factor 0.003% or Less (at 4-channel rated output)
Input sensitivity 1.2 v (in independent mode)
0.9 v (Bridge Connected)
Input impedance 20k Ω
Damping factor 50 or more
S/N ratio (IHF-A) 115dB
Channel separation 90 dB or more
Pwer 100 VAC, 50Hz/60Hz
Power consumption 600W
External dimensions Width 475x Height 143x Depth 450 mm
Weight 21.5kg
