Yamaha AX-900 → Обява 52857084

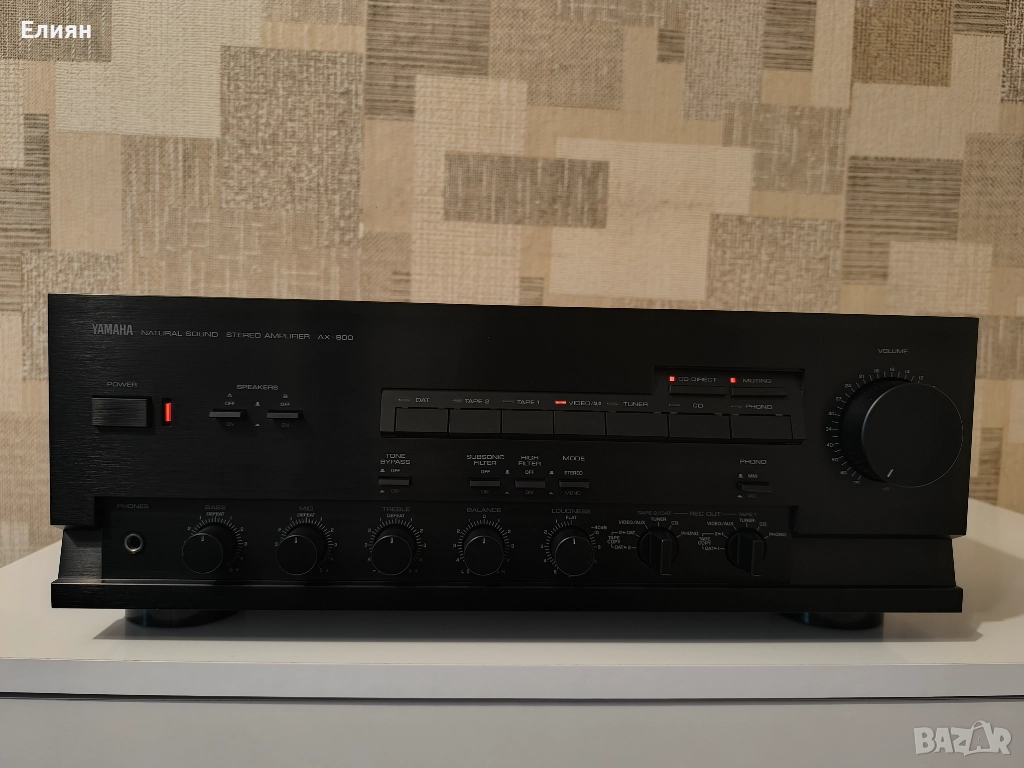

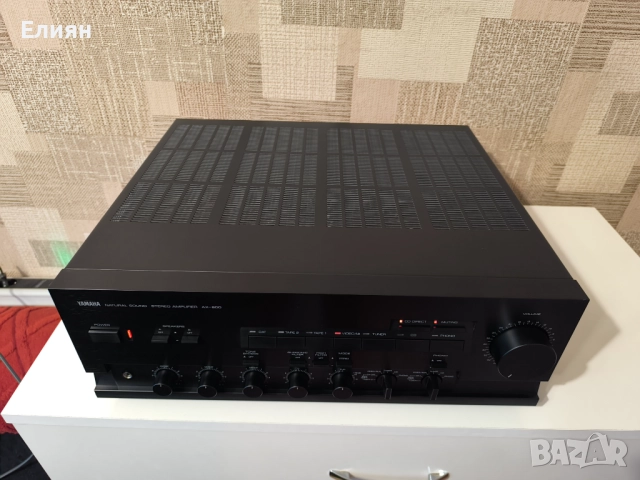

Yamaha AX-900
Състояние
Използвано
Доставка
Купувача
- Model: AX-900
- Type: Integrated amplifier
- Years of manufacture: 1986 - 1988
- Made in: Japan
- Colors: Silver, Black
- Remote control: No
- Power Consumption:
- Europe model: 600 watts
- UK/Australia model: 600 watts
- Europe model: 600 watts
Canada model: 450 watts
- General model: 250 watts
- General model: 250 watts
Dimensions: 435 x 165 x 416 mm (WxHxD)
- Weight: 17 kg
- Original price approx.: 1'350 DM

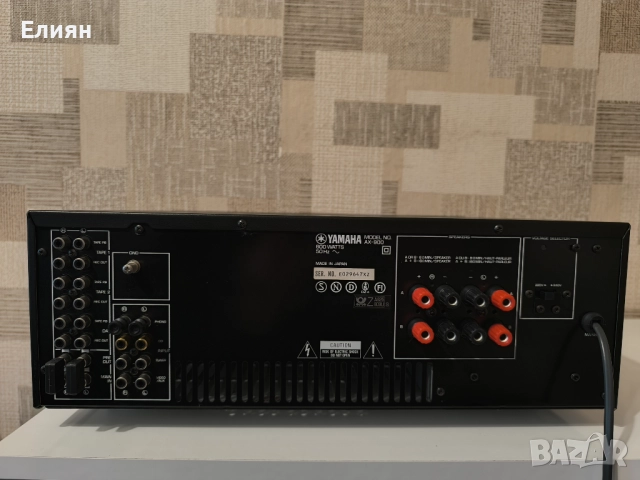

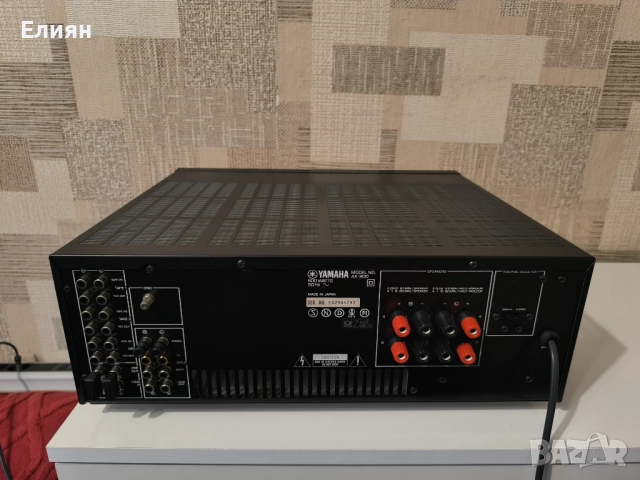

Connections
- Number of inputs:
- Phono MM/MC, tuner, 2 x tape, DAT, aux, CD, preamplifier.
- Phono MM/MC, tuner, 2 x tape, DAT, aux, CD, preamplifier.
- Number of outputs:
- 2 x speakers, 3 x rec-out, headphones, power amp.
- 2 x speakers, 3 x rec-out, headphones, power amp.
Technical Data
- Continuous power (at distortion factor)
- 8 Ohm: 2 x 130 Watt at 0,005 %
- 6 Ohm: 2 x 150 Watt at 0,008 % (DIN)
- 4 Ohm: 2 x 217 Watt at 1,000 % (according to DIN)
- 8 Ohm: 2 x 130 Watt at 0,005 %
IEC power
- 4 Ohm, 1 kHz: 140 Watt (1 % distortion)
- 4 Ohm, 1 kHz: 140 Watt (1 % distortion)
- Dynamic power
- 8 Ohm: 2 x 180 Watt
- 4 Ohm: 2 x 320 Watt
- 2 Ohm: 2 x 440 Watt
- 1 Ohm: 2 x 520 Watt
- Buffering : 2 x 22.000 µF
- 8 Ohm: 2 x 180 Watt
- Total harmonic distortion: 0,005 %
- Intermodulation distortion
- CD, Video-AUX, Tuner, Tape (up to Speaker Out 130 Watt / 8 Ohm): 0.002 %
- CD, Video-AUX, Tuner, Tape (up to Speaker Out 130 Watt / 8 Ohm): 0.002 %
1 Watt / 8 Ohm: 0.003 % * Power bandwidth
- Power bandwidth
- 8 Ohm, 65 Watt, distortion factor 0.03 %: 10-50,000 Hz
- 8 Ohm, 65 Watt, distortion factor 0.03 %: 10-50,000 Hz
- Attenuation factor: 150 (8 Ohm, 1 kHz)
- Input (Sensitivity / Impedance)
- Phono MM: 2.5 mV / 47 kOhm
- Phono MC: 160 µV / 220 Ohm
- Tuner, CD, Aux, DAT, Tape: 150 mV / 47 kOhm
- Phono MM: 2.5 mV / 47 kOhm
- Output (level / impedance)
Rec-Out 150 mV / 470 Ohm
- Headphones 0.93 V / 8 Ohm (distortion factor 0.005 %)
- Headphones 0.93 V / 8 Ohm (distortion factor 0.005 %)
- Frequency response CD, Video-AUX, Tuner,
- Tape, Main-In: 20-20,000 Hz (+0db, -0.5 dB)
- Tone control:
- Bass: ±10 dB at 20 Hz, crossover frequency 350 Hz.
- Mids: ±10 dB at 1,000 Hz
- Treble: ±10 dB at 20,000 Hz, crossover frequency 3,500 Hz.
- Bass: ±10 dB at 20 Hz, crossover frequency 350 Hz.
- Loudness:
- Level-related attenuation control
- Attenuation -40 dB (1 kHz)
- Level-related attenuation control
- Subsonic: 15 Hz / 12 dB/octave, switchable
- Mute: yes (-20 dB)
- Direct/Line-Straight: CD-Direct, tone control switchable
- Ripple spacing (short-circuited): 106 dB
- Stereo channel separation: 70 dB (volume -30 Db)
- Signal-to-noise ratio
- Phono MC: 74.5 dB; IHF value 72 dB
- Phono MC: 74.5 dB; IHF value 72 dB
Phono MM: 78 dB; IHF value 92 dB CD, Video-AUX, Tuner, Tape: 85 dB; IHF value: 100 dB
- Intermodulation distortion
- CD, Video-AUX, Tuner, Tape (nominal output/8 Ohm): 0.002 %
- 1 Watt / 8 Ohm: 0.003 %
- CD, Video-AUX, Tuner, Tape (nominal output/8 Ohm): 0.002 %
- Gain tracking error
- 0 dB to -60 dB: 2 dB
- 0 dB to -60 dB: 2 dB
