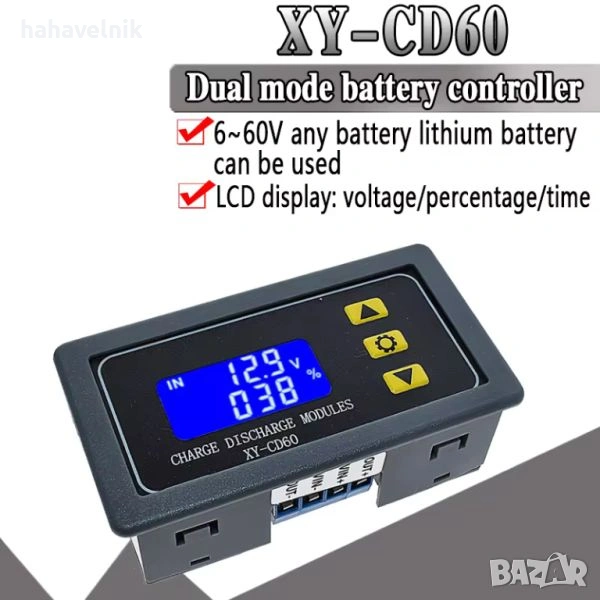

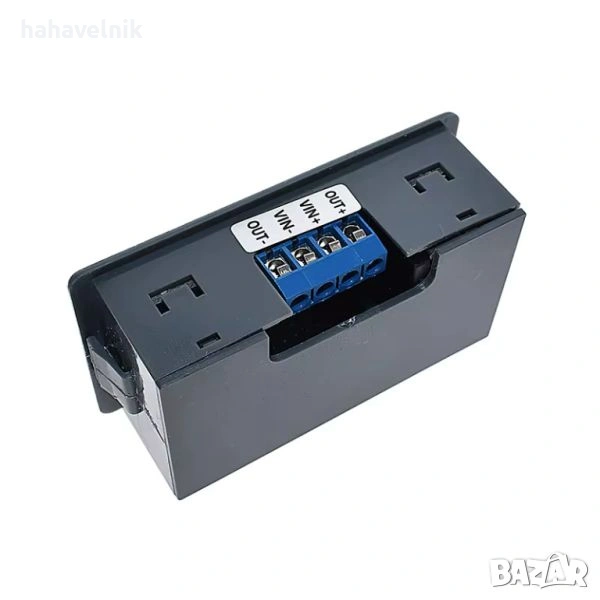

Заряден контролер за батерии и акумулатори от 6 до 60V XY-CD60 → Обява 53248822

• Материал: пластмаса

• Модел: XY-CD60

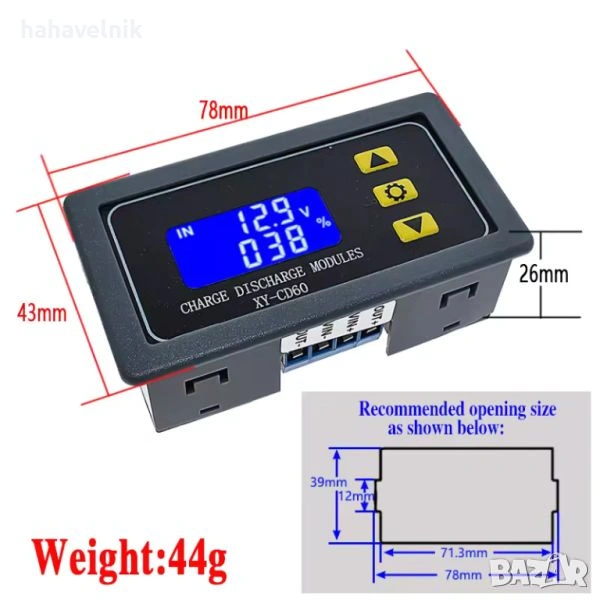

• Размер: прибл.79 x 43 x 38 мм/3,11 x 1,69 x 1,50 инча

• Контролно напрежение: 6-60V

• Режими: Режим на зареждане; Режим на разреждане

• Цвят: Както е показано на снимката

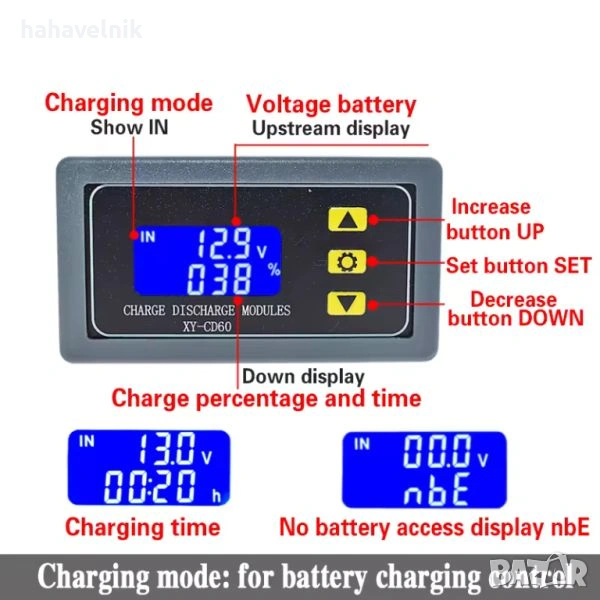

Charging mode IN:

By

setting the upper limit voltage UP and the lower limit voltage dn; when

the battery voltage is less than or equal to the lower limit voltage

dn, the relay turns on and the charger starts charging the battery; when

the battery voltage is more than or equal to the upper limit voltage

UP, the relay disconnects to complete an automatic charging; when the

relay turns on, IN flickers, indicating that it is charging.

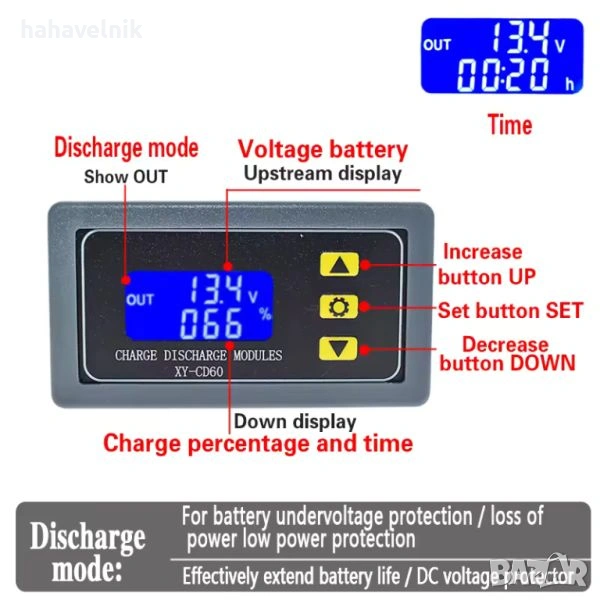

Discharging mode OUT:

By

setting the upper limit voltage UP and the lower limit voltage dn; when

the battery voltage is greater than or equal to the upper limit voltage

UP, the relay turns on and starts discharging; when the battery voltage

is less than or equal to the lower limit voltage dn, the relay turns

off and completes an automatic discharging function; when the relay

turns on, the OUT flickers, indicating that it is discharging.

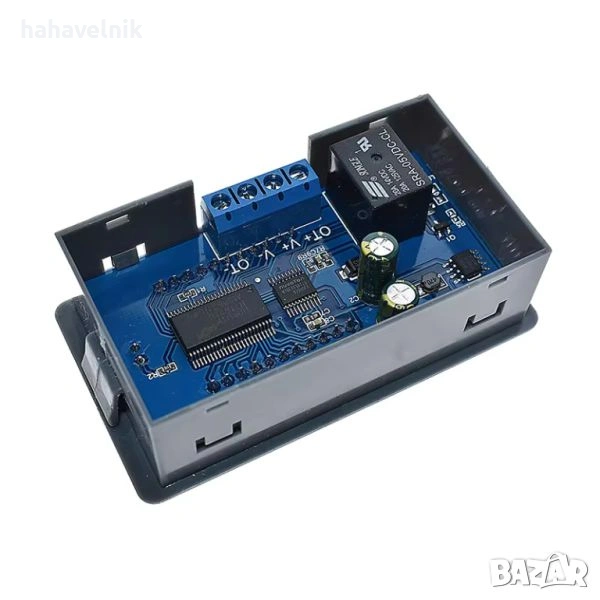

Tip:

This

product is a simple voltage controller. It can turn on and off the

output by relay. It only plays the role of switching, and can not change

the voltage.

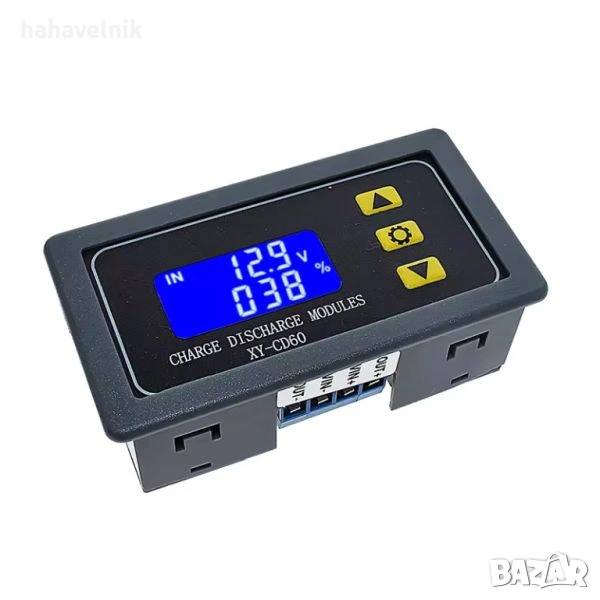

Functional instruction:

1. Calculation of Voltage Percentage: Battery Voltage/(Upper Voltage-Lower Voltage)

2. Key function:

UP: Short press display % and time, long press 5 seconds to switch mode; charging mode: IN, discharge mode: OUT.

SET:

Short press to check the parameters currently set; long press to enter

the parameter setting interface, set UP: voltage upper limit, dn:

voltage

lower

limit, OP: turn-on time, dOP: delay turn-on time (0-999 seconds), FOP:

forced turn-on time (0-10 seconds) in discharge mode.

DOWN:

Turn off/on electric relay enable (emergency stop function) turn off,

LCD display OFF, relay disconnect: long press to set the status of LCD

backlight,

L-P: OFF backlight constant brightness, ON: Backlight automatically

extinguishes after 5-10 minutes; after extinguishing, press

any keys to wake up.

3. Parameter Settings

a. Enter the parameter setting interface by pressing the SET;

b. After entering the parameter setting interface, switch the setting parameters by short pressing SET;

c. After choosing parameters, it can be set by UP/DOWN key, supporting short press or long press.

d. If you want to set other parameters, repeat steps b and c;

e. After all parameters are set, long press SET to exit and save;

3.1 Charging/Discharging Time Control Function

1) When the time parameter OP is non-zero, start charging/discharging time control.

2)

When the relay turns on a charge/discharge, the countdown begins; when

it is completed, the relay is automatically disconnected to complete a

charge/discharge

process; if the time is completed, under the charging mode, the

detection voltage is less than the lower limit voltage dn or in

the

discharge mode, the detection voltage is larger than the upper limit

voltage UP, and the charging time control function is automatically

turned

off and flashes. Indicate H: ER reminds users that time parameter setting is unreasonable; press any key to stop flickering;

3)

When the charging/discharging time control is not turned on, the

product will record a complete time. When entering the time display

interface,

flashing

shows the charging time, then exiting the time display interface or

clearing the next time the charging is turned on (relay is turned on).

3.2 Automatic parameter detection:

When

the parameters are set and exit, if the lower voltage limit DN is

larger than the upper voltage up, the system will flicker to display

"ERR" as a reminder.

3.3 Delayed turn-on function (0-999 seconds):

Completion of a charge/discharge, the interval between re-opening;

3.4 Discharge Conduction Forced Start Time (0-10S):

After

satisfying the relay conduction condition, the relay is forced to turn

on (0-10S) to detect the battery voltage again. This function is mainly

aimed at discharging function. Some test loads will pull down the lower

limit voltage instantaneously at the moment of conduction, which will

lead to the disconnection of the relay and the failure of normal

discharge process.

Analysis of Common Faults:

Question 1: How many V levels are suitable for use? How many V voltage does this module fit?

Answer

1: This model is suitable for use in the range of minimum 6V, maximum

60V voltage and maximum expenditure level 48V, because 48V battery is

full of electricity at about 60V, and then burns at a higher level. If

your battery is higher than 48V, please choose another one.

Q2: The relay clicks after power-on! Does the light flicker?

A2:

This is because your charging current is too large or the battery

capacity is too small. Once the battery is powered up, it immediately

reaches the upper voltage limit. The relay is disconnected. After

disconnection, the voltage quickly drops to the lower voltage limit and

starts charging again. At this time, you need to reduce the charging

current. Usually, the charging current is 10% of the battery capacity.

From 1 to 1.5, the charging current of 20AH batteries is generally about

2-3A. Note that high current charging can cause battery heating,

accelerated aging, bulging and even explosion!

Q3: What control method? Can it be recharged automatically? Can you fill it while you use it? Can we limit the current?

A3:

This is voltage control, such as setting the lower limit of voltage

12.0V, the upper limit of voltage 14.5V, when the voltage is charged to

14.5V, the power is cut off, the voltage is lowered to 12.0V and the

relay is closed to start charging; while charging, the voltage control

mode can only switch on and off, not limit the current, the charging

current depends entirely on your charger!

Q4: Can I charge a 24V battery with 12V input, or can I charge a 12V battery with 48V input?

A4:

This is a simple voltage controller. It only plays a switching role. It

can't change the voltage to charge the battery. So what kind of charger

should you prepare to charge the battery? Necessary!
