Термо камера 256 x 192 USB за телефон термокамера → Обява 53428161

• Mobile Thermal ImagerHigh-Resolution Infrared Detector:Equipped with a high-resolution industrial-grade infrared detector for precise thermal imaging.

• Plug-and-Play Connectivity:Effortless plug-and-play connectivity with a customized professional thermal imaging app for Android.

• Wide Temperature Measurement Range:Captures temperatures from -15°C to 600°C, making it suitable for various thermal analysis scenarios.

• Advanced Temperature Tracking:Features automatic high and low-temperature tracking for precise area temperature measurement.

• Portable and Lightweight Design:At just 17g, this thermal imager is designed for easy portability and on-the-go thermal imaging.


• Battery Included


  No

  High-concerned chemical


  None

• Thermal pixels


  256*192

  Minimum temperature


  -15 ℃

• Maximum temperature


  600 ℃

  Is Smart Device


  No

• Style


  Embedded

  Brand Name


  HABOTEST

• Origin


  Mainland China

  Brand


  HABOTEST

• Product Name


  Mobile Infrared Thermal Imager

  Color


  Black

• Resolution


  256x192

  Working Wavelength


  8-14 μm

• Frame Rate


  25Hz

  NETD


  <50mK @25℃

• Lens


  3.2mm

  Field of View


  56°x42°

• Temperature Measurement Range


  -15°C to 600°C

  Accuracy


  ±2°C or ±2% of the reading

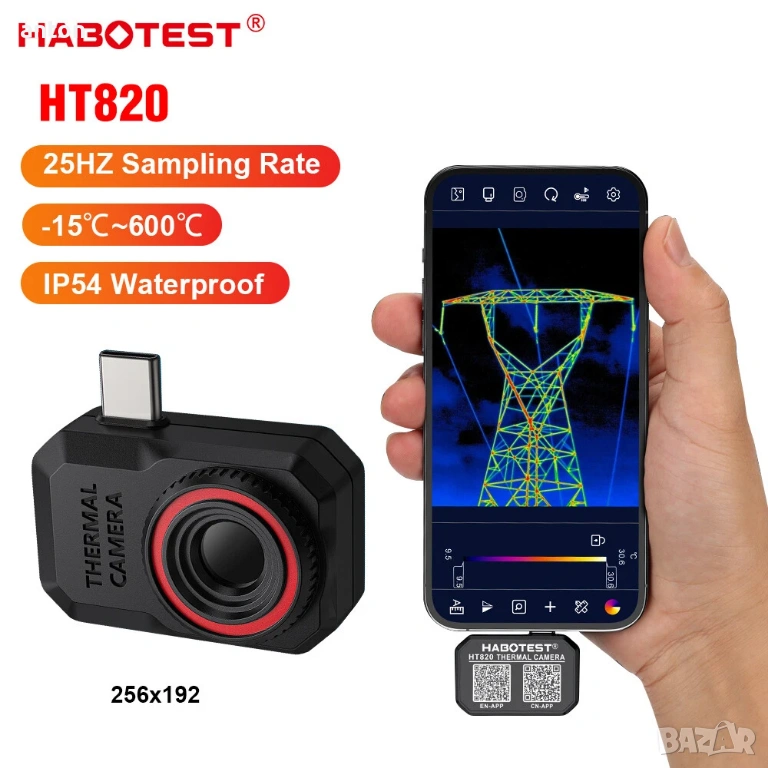

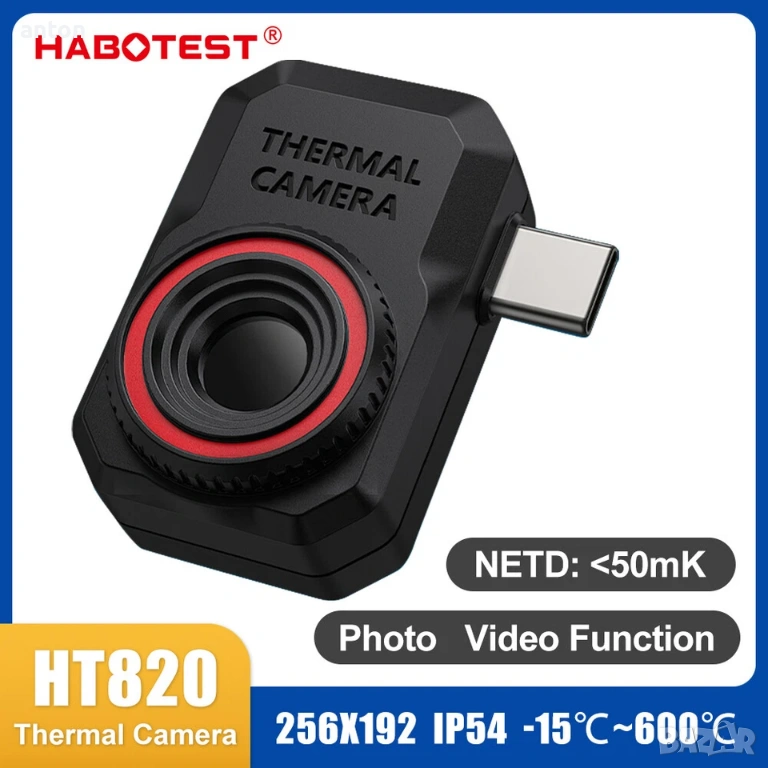

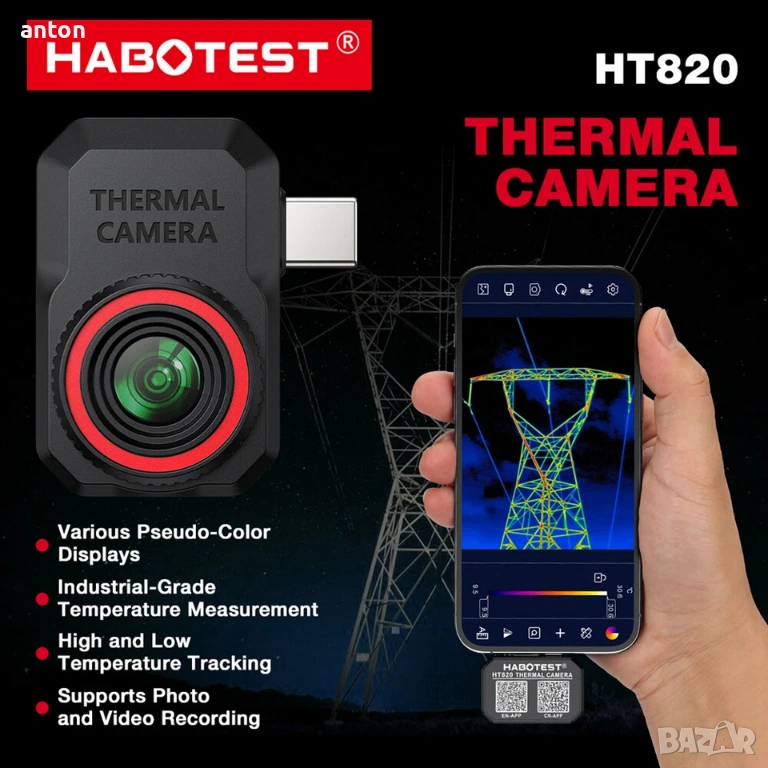

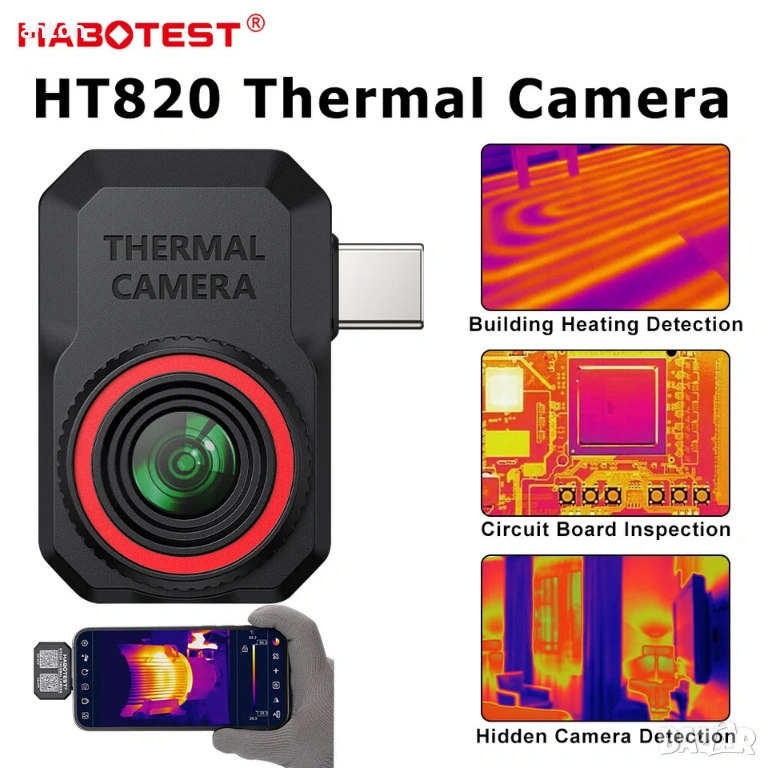

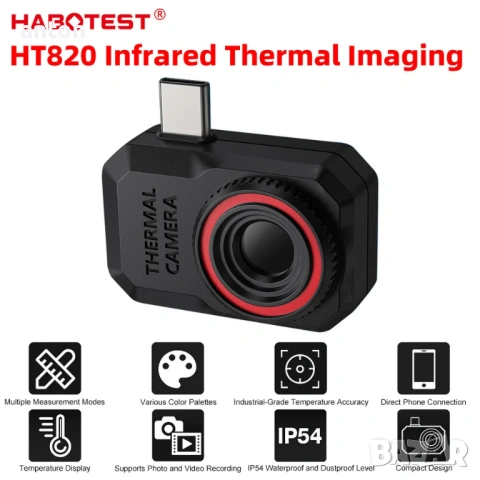

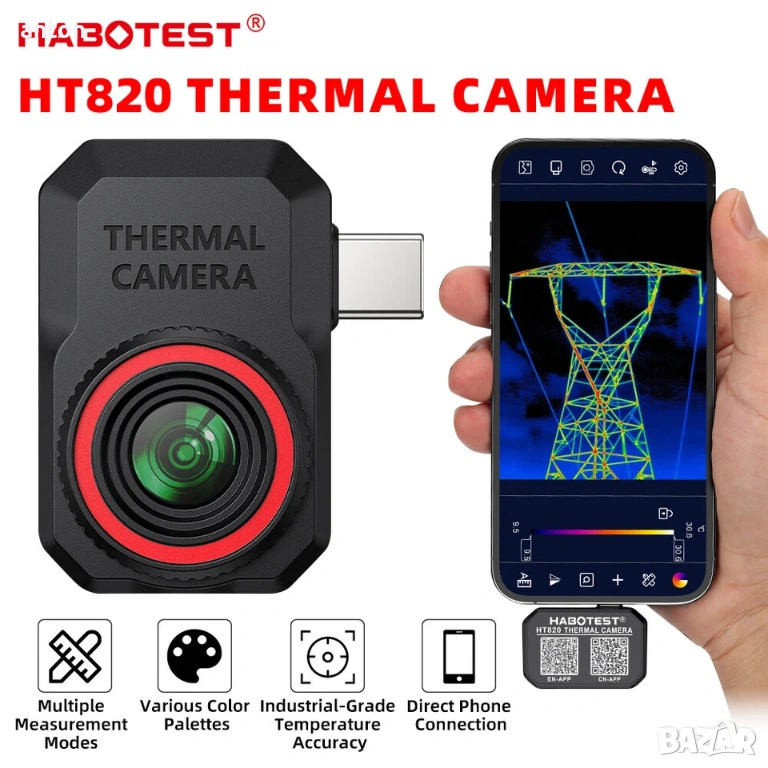

HABOTEST HT820 Thermal Camera 256x192 Resolution 25HZ IP54 Waterproof -15℃~600℃ Six Modes 3.2mm Lens Indusrial-Grade Infrared Thermal Imaging

Features:

1. Direct phone connection,plug and play(Note: You need to scan the QRcode to download the APP USB Type-C Direct Phone ConnectionTemperatureMonitoring at Anytime, Anywhere)
2. 25HZ high sampling rate smooth display, low latency,fast temperature refresh
3. Photo and video functions can record temperature distribution in image or videoformat for subsequent analysis and research

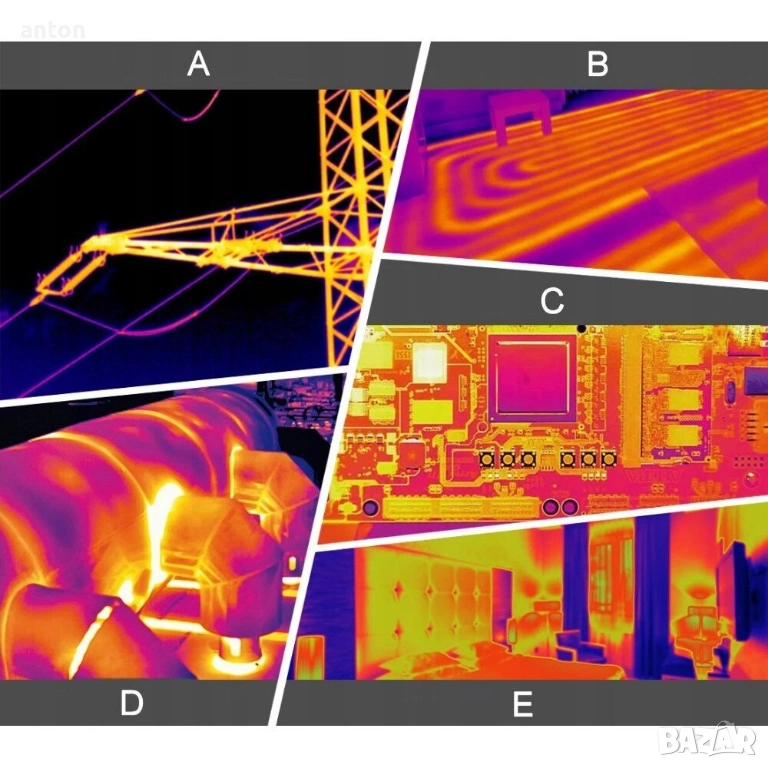

4. Six thermal imaging modes,Color Palettes: lron Red, White Hot,Black Hot, Rainbow, Red Hot, Cold Blue
5. Indusrial-grade temperature measurement,wide temperature range:-15°C~600°C,accuracy: ±2°C
6. Over-temperarure alarm,Once the high-temperature alarmthreshold is set, when the highesttemperature in the image exceedsthe alarm limit,thesystem will sound an alarm and thevideo screen will flash red
7. Automatic Hot and Cold SpotDetection.This improves temperature measurement accuracy and efficiency
8. Temperature tracking,It can track the current highest, lowest,and center point temperatures in thedetection screen
9. 3.2MM lens,The field of view reaches 56° X 42°with a wide range of vision, strongdetail capture capability, highflexibility, portability
10. IP54 Waterproof and Dustproof Level

Description:
HT820 thermal camera,adoption of aluminum alloy housing compact body, beautiful,appearance, sturdy and durable, IP54 waterproof and dustproof Level 25HZ high sampling rate smooth display,Type-C port irect phone connection,Indusrial-grade Infrared thermal imaging.

Specifications:
Product: Infrared thermal imaging
Resolution: 256x192
Operating wavelength: 8-14 um
Frame rate: 25Hz
NETD: <50mK @25℃
Lens: 3.2mm
Field Angle: 56° x 42°/35° x27°
Temperature range: -15℃~600℃
Temperature measurement accary: ±2 °C or ±2% of the reading
Temperature measurement: Supports high and low temperature automatic tracking, central point temperature measurement,point temperature measurement, area temperature measurement,line temperature measurement, temperature range viewing
Interval display temperature: support
Real-time image flipping: support
lmage palette: lron red, white hot, black hot, rainbow, red hot, cold blue
Take a picture: Photo support
Video recording: Support recording
lmage editing: Support picture graffiti and text remarks
Settings: Thermal imaging professional parameter configuration,temperature unit, language, high temperature alarm Settings
Operating temperature: -10°C~75°C
Storage temperature: 45°C~85°C
Waterproof and dustproof: IP54
Product size: 43mm x36mm x18mm
Net weight: 17g

notice:
1. Do not let strong light such assunlight or lasers directly shine onthe lens to avoid permanentphysical damage to the lens;
2. Do not immerse the thermalimager in water;
3.Avoid using organic cleaningagents such as alcohol anddetergents to clean the lens

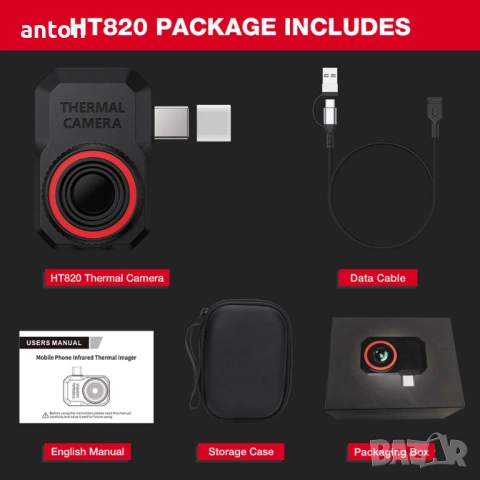

Package contents:
1*HT820 Thermal Camera
1*Data Cable
1*English Manual
1*Storage Case
1*Packaging Box

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!

Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
