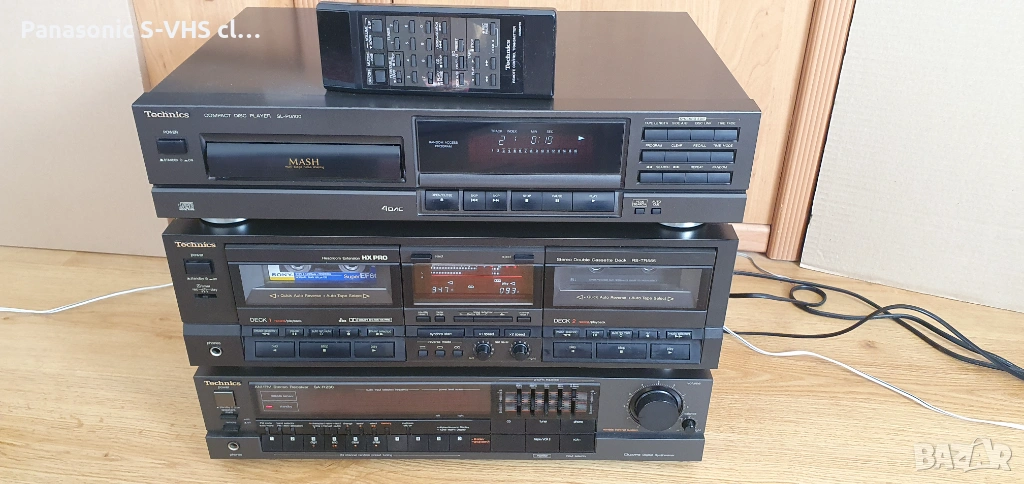

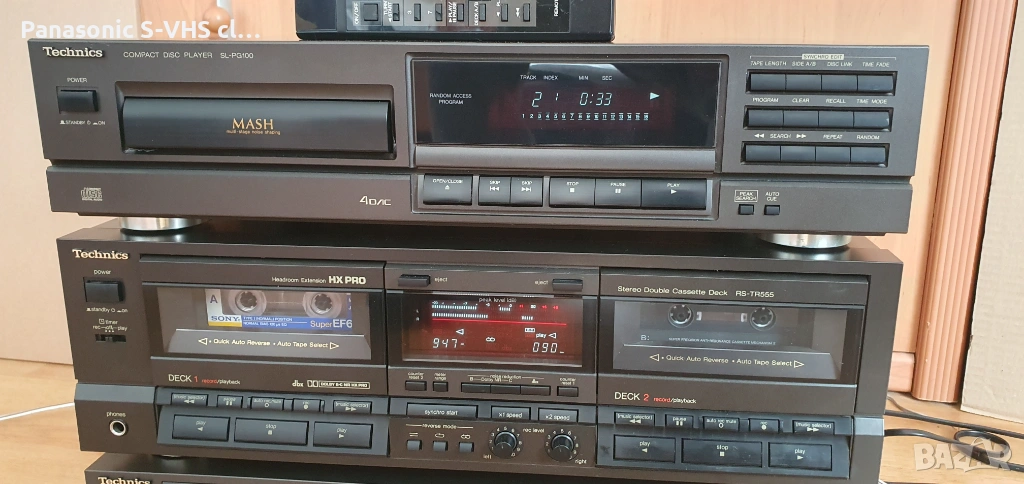

Technics cassette deck RS-TR555,CD-player SL-PG100,Recivier SA-R230 → Обява 53582225

General:

Manufacturer: Technics

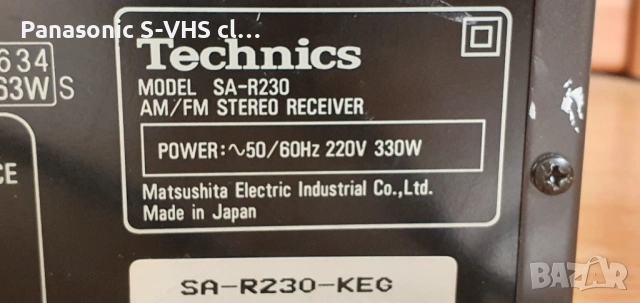

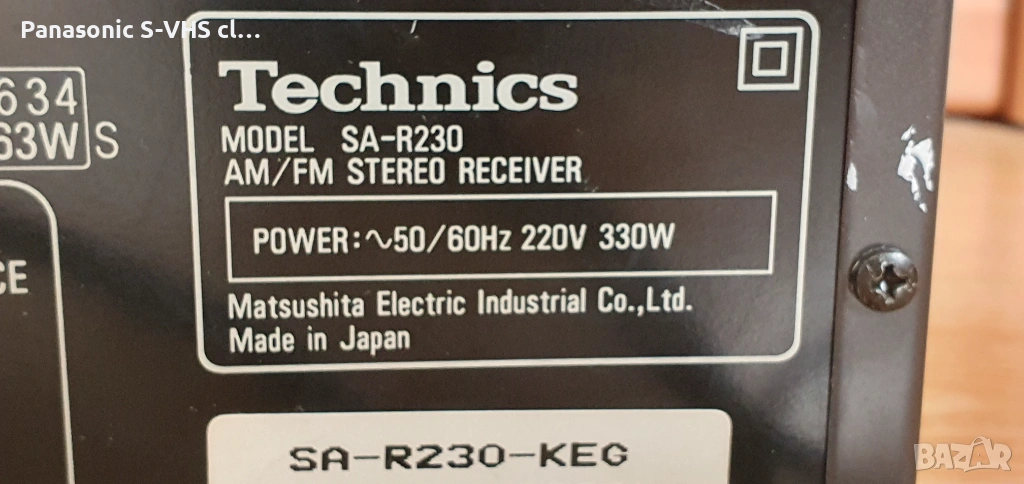

Model: SA-R230

Year of manufacture: 1989

Made in: Japan

Color: brown

Remote control: yes

Power consumption: 220-230V, 50-60Hz / 340W

Dimensions: 430 x 102 x 290 mm (WxHxD)

Weight: approx. 6 kg

Original price approx:

Technical data:

Amplifier:

Circuitry: New-Class-A circuit; with cooling fan, switches on at high load.

Power : 2 x 50W at 8 Ohm (sine wave)

Total harmonic distortion: 0,003% (8 Ohm, half nominal power, 20-20.000 Hz)

Frequency response: Phono: RIAA ±0.8 dB (30Hz - 15,000 Hz), CD/Tuner/Tape(VCR2)/VCR1: 7Hz - 70kHz, -3db

Signal-to-noise ratio: (IHF-A) Phono: 70 dB (80db), CD/Tuner/Tape(VCR2)/VCR1: 80 dB (90db)

Speaker output: 4 - 16 Ohm, MAIN and REMOTE.

Loundess switch.

Tuner:

AM & FM-stereo/mono, Quartz digital synthesizer with auto. station search, 24 station speicer positions (AM&FM!).

Reception: FM, MW (LW only with SA-R330L)

Frequency response: FM: 20 - 15,000 Hz (+1/-2 dB)

Input sensitivity: FM: 1.3 µV (75 Ohm, 26 dB S/R) MW: 20 µV (20 dB S/R)

Distortion factor: FM: 0.2% (stereo)

Signal-to-noise ratio: FM: 60 dB (stereo), 75 dB (IHF-A)

Selectivity: FM: 65 dB MW: 55 dB

RDS: no, station memory: 24

Equalizer : Graphic-EQ, 5-fold, +/- 10db.

Display : Tuner matrix for signal source, station frequency, EQ spectrum analyzer.

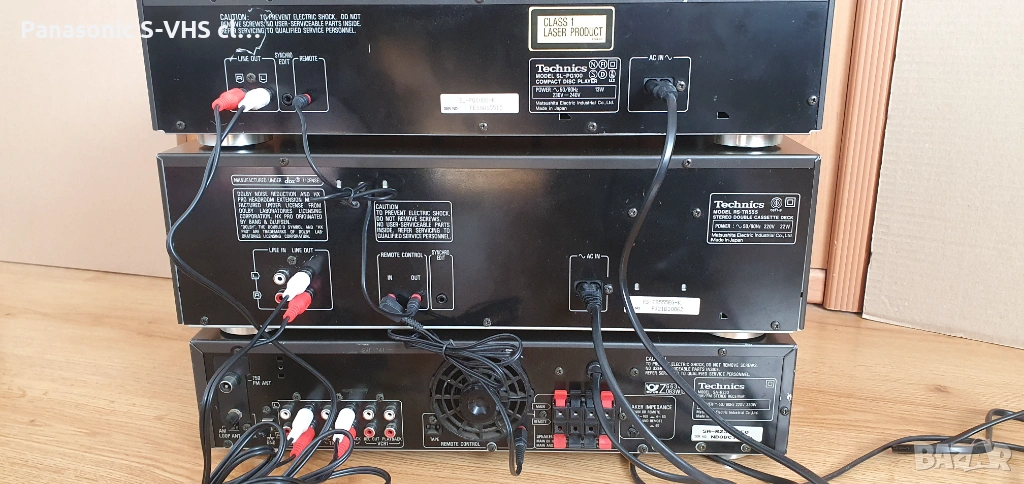

Connections:

- RCA inputs : Phono, CD, VCR2, VCR1.

- Antenna : 75 Ohm FM coaxial pluggable & screwable, AM loop connector.

- Remote & Tape-Remote - Control.

- Headphone output.

- Speakers : 2x, MAIN and REMOTE

General

• Manufacturer: Technics

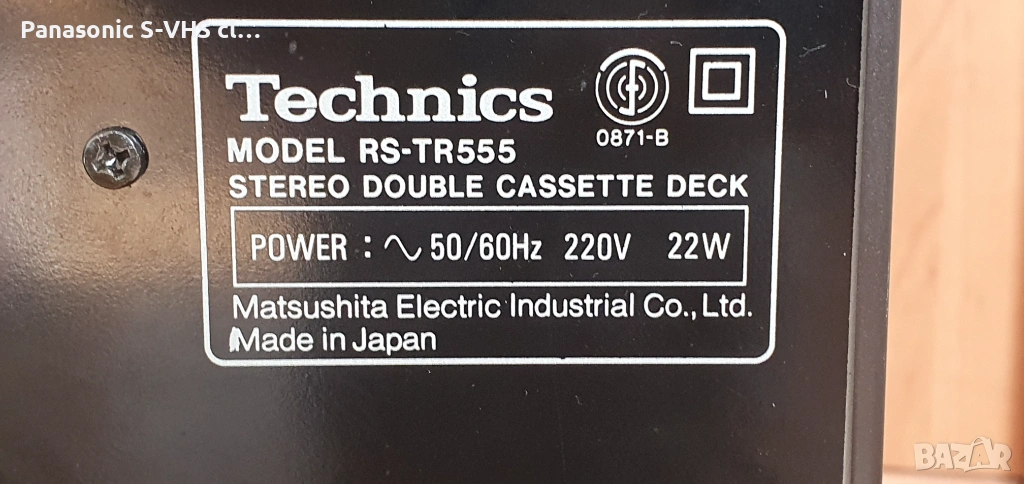

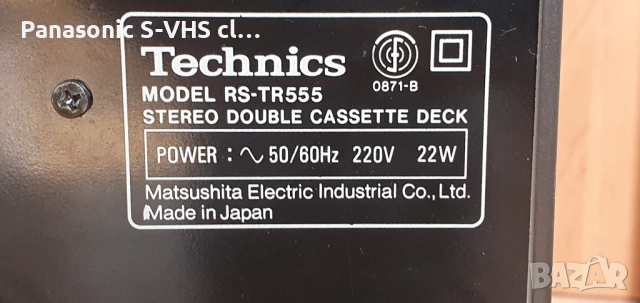

• Model: RS-TR 555

• Type: Double cassette tape deck

• Years of manufacture: 1989 - 1993

• Made in: Japan

• Color: Black

• Remote control: -

• Power consumption: 22 W

• Dimensions (WxHxD): 430 x 136 x 290 mm

• Weight: 5.5 kg

• Original price approx.: 998 DM

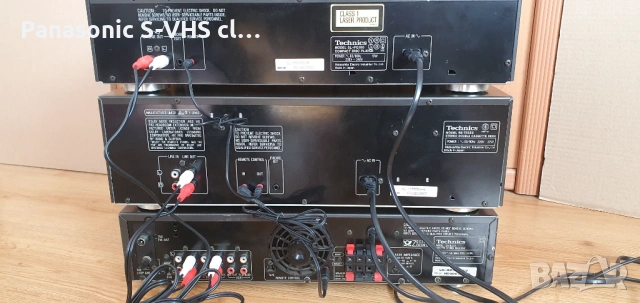

Connections

• Number of inputs:

  • Line in (Cinch): 60 mV / 47 kOhm


Remote Control in

• Number of outputs:

  • Line out (Cinch): 400 mV / 800 Ohm


Remote Control out

• • Headphone output 30 mV / 8 Ohm


Technical data

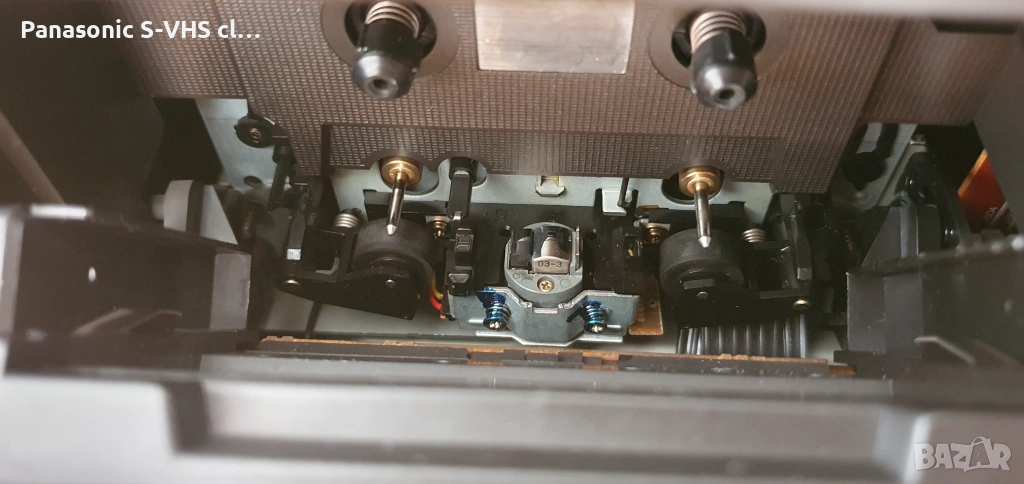

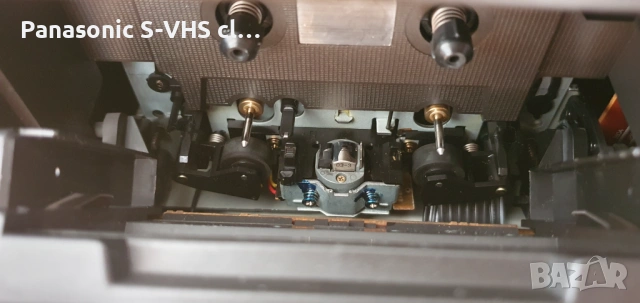

• Audio heads: 2

• Premagnetization frequency: 80 kHz (alternating current premagnetization)

• Motors:

• Tape speeds:

  • 4.8 cm/s

  • 9.6 cm/s (when dubbing at 2x speed)

• Synchronisation fluctuations: 0.07% (WRMS) / ± 0.2% (DIN)

• Tape types:

• Frequency response:

• Distortion factor:

• Signal-to-noise ratio:

• Auto Reverse:

• Track search: yes (Tape Program Sensor / TPS).

• Dolby: Dolby B, C and HX Pro

• MPX filters:

• Fader:

• Pitch Control:

• CD Synchro Recording: yes


Special Features

• Noise reduction system: Dolyby NR B, Dolyby NR V, dbx

• Recording balance control (balance)

• Reverse switch (one side, continuous playback, serial playback)

• Rec Level

• Synchro Start

• 1x and 2x speed dubbing

• Dual Record (both drives with recording function)

• Timer controlled recording

• 3-digit tape counter per deck

• Synchro Edit function

•

• И компакд диск плеара CD player Technics -SL-PG100

• Спецификация:
• Number of Transistors

• Semiconductors present.

• Semiconductors

•


• Main principle

• Audio-Amplification


• Wave bands

• - without


• Details

• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)


• Power type and voltage

• Alternating Current supply (AC) / 120; 230-240; 110; 127; 220; 240 Volt


• Loudspeaker

• - For headphones or amp.


• Material

• Metal case


• from Radiomuseum.org

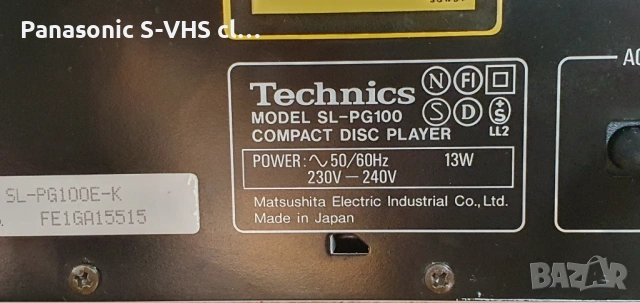

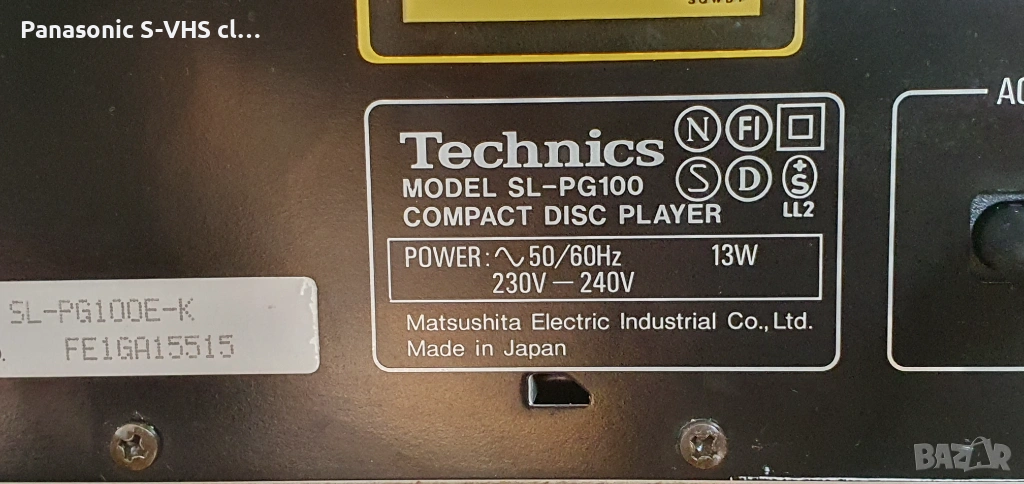

• Model: Compact Disc Player SL-PG100 - Technics brand


• Shape

• Book-shelf unit.


• Dimensions (WHD)

• 430 x 102.6 x 280 mm / 16.9 x 4 x 11 inch


• Notes


• A stereo hi-fi compact disc player housed in a black metal case. RCA phono Line Out sockets, terminals for Synchro Edit and Remote control.


  Specification





  Audio





  No. of channels:


  2 (left and right, stereo)


  Frequency response:


  2-20,000Hz ±1dB


  Output voltage:


  2V (at 0dB)


  Dynamic range:


  92dB


  S/N ratio:


  100dB


  Total harmonic distortion


  0.007% (1 kHz, 0dB)


  Wow and flutter:


  below measurable limit


  DA Converter:


  MASH (1 bit)


  Output impedance:


  Approx. 1kΩ


  Load impedance:


  More than 10kΩ


  Pickup





  Wavelength:


  780 nm

  Versions/Power Requirements

  USA / 120V AC 60Hz

  Canada / 120V AC 60Hz

  Continental Europe / 230-240V AC 50/60Hz

  Australia / 230-240V AC 50/60Hz

  Others / 110/127/220/240V AC 50/60Hz


  Power Consumption: 14W (USA & Canada), 13W (Europe & Australia), 12W (Others)


  Made in Japan


• Net weight (2.2 lb = 1 kg)

• 3.4 kg / 7 lb 7.8 oz (7.489 lb)


• Price in first year of sale

• 160.00 $
