Ресийвър Pioneer SX-626 → Обява 54131205

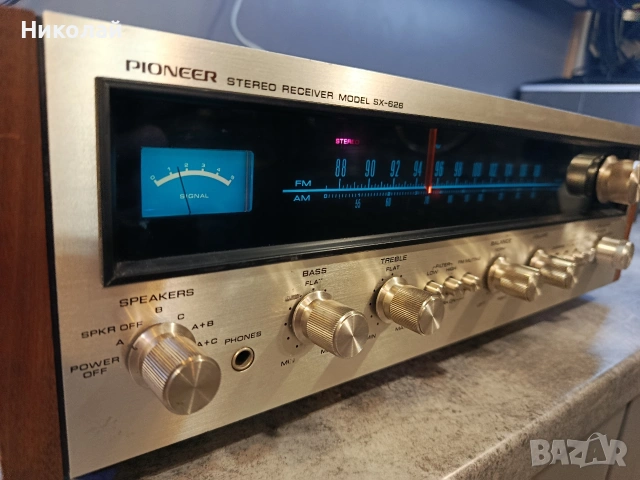

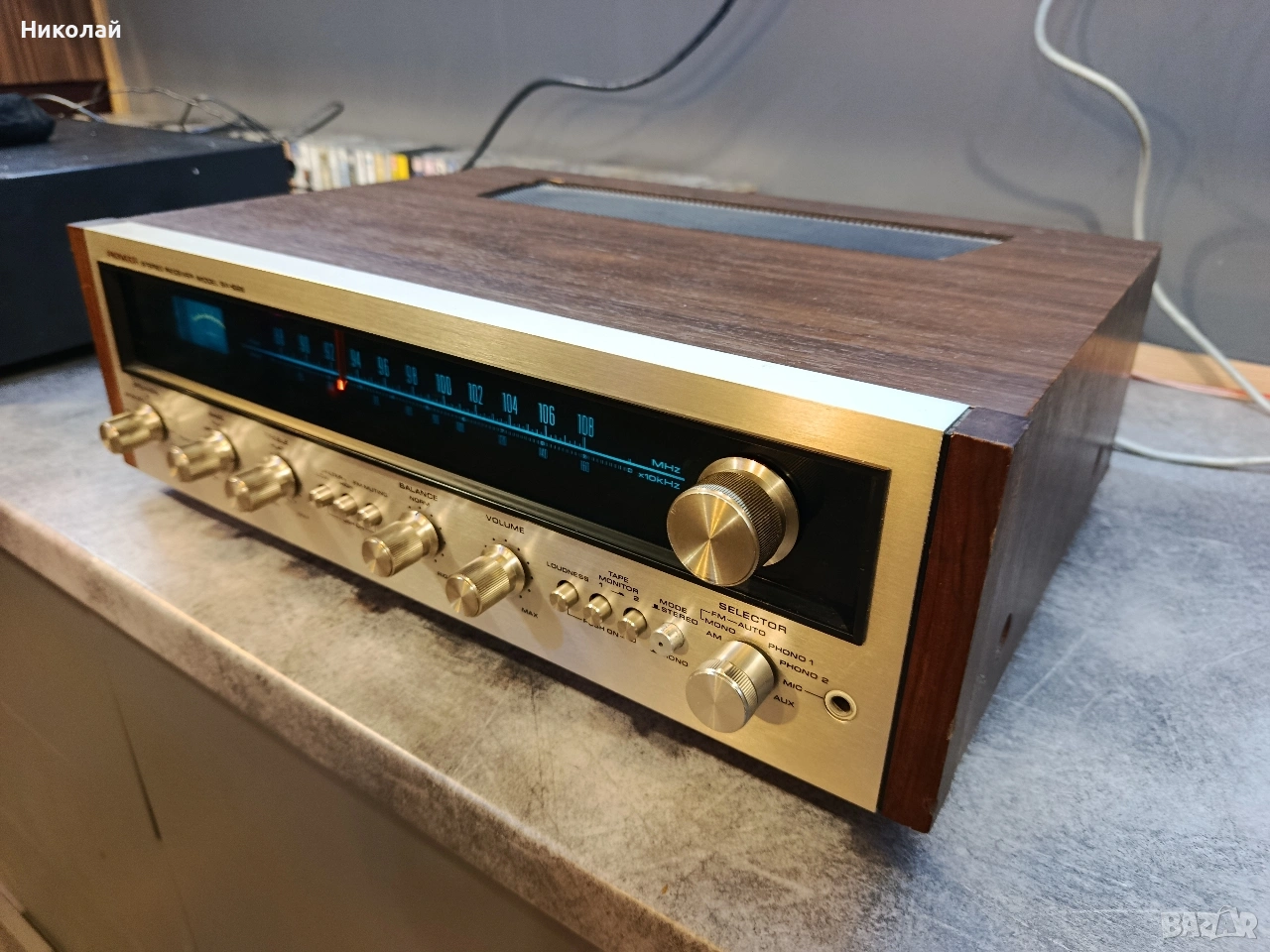

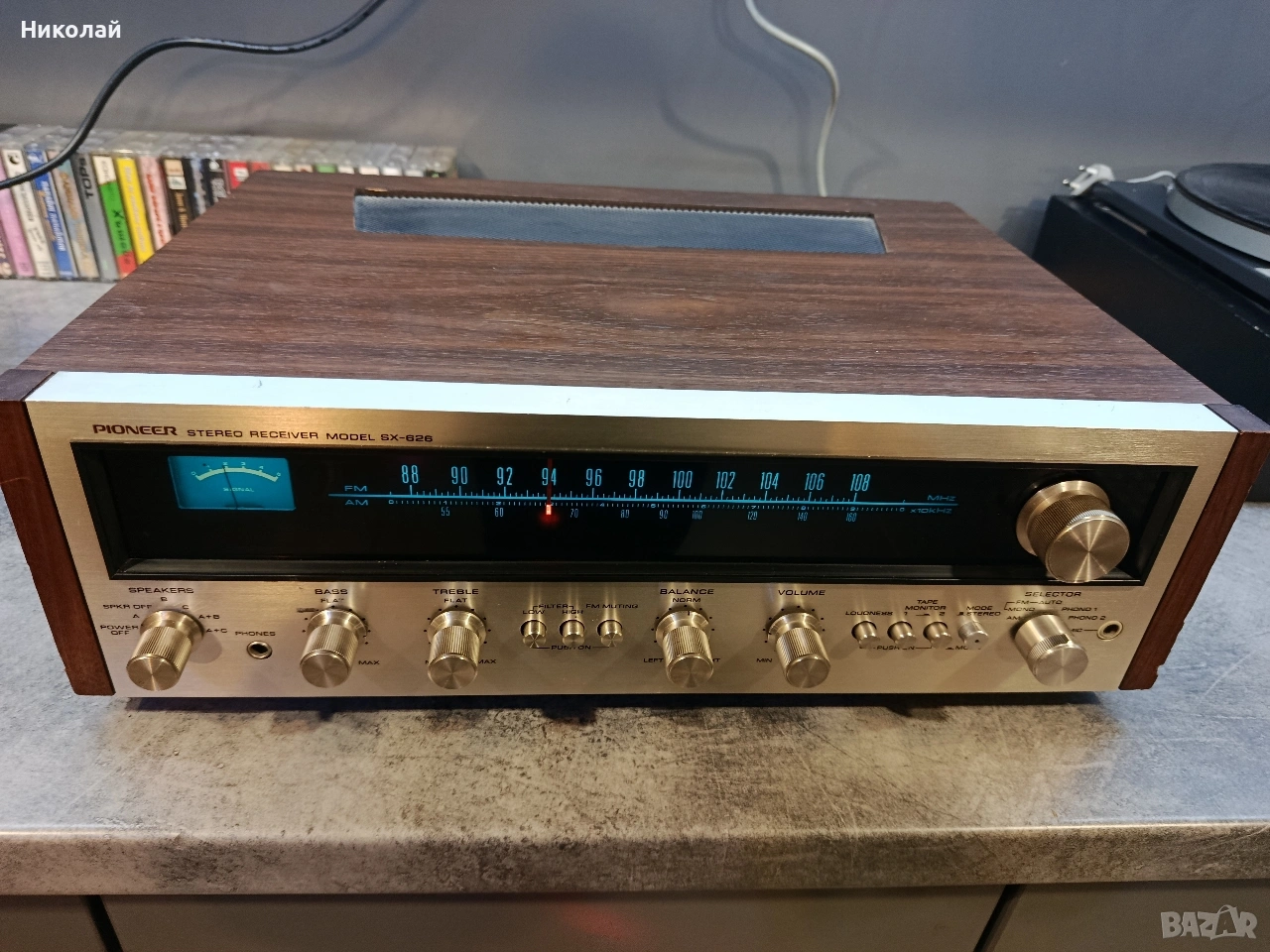

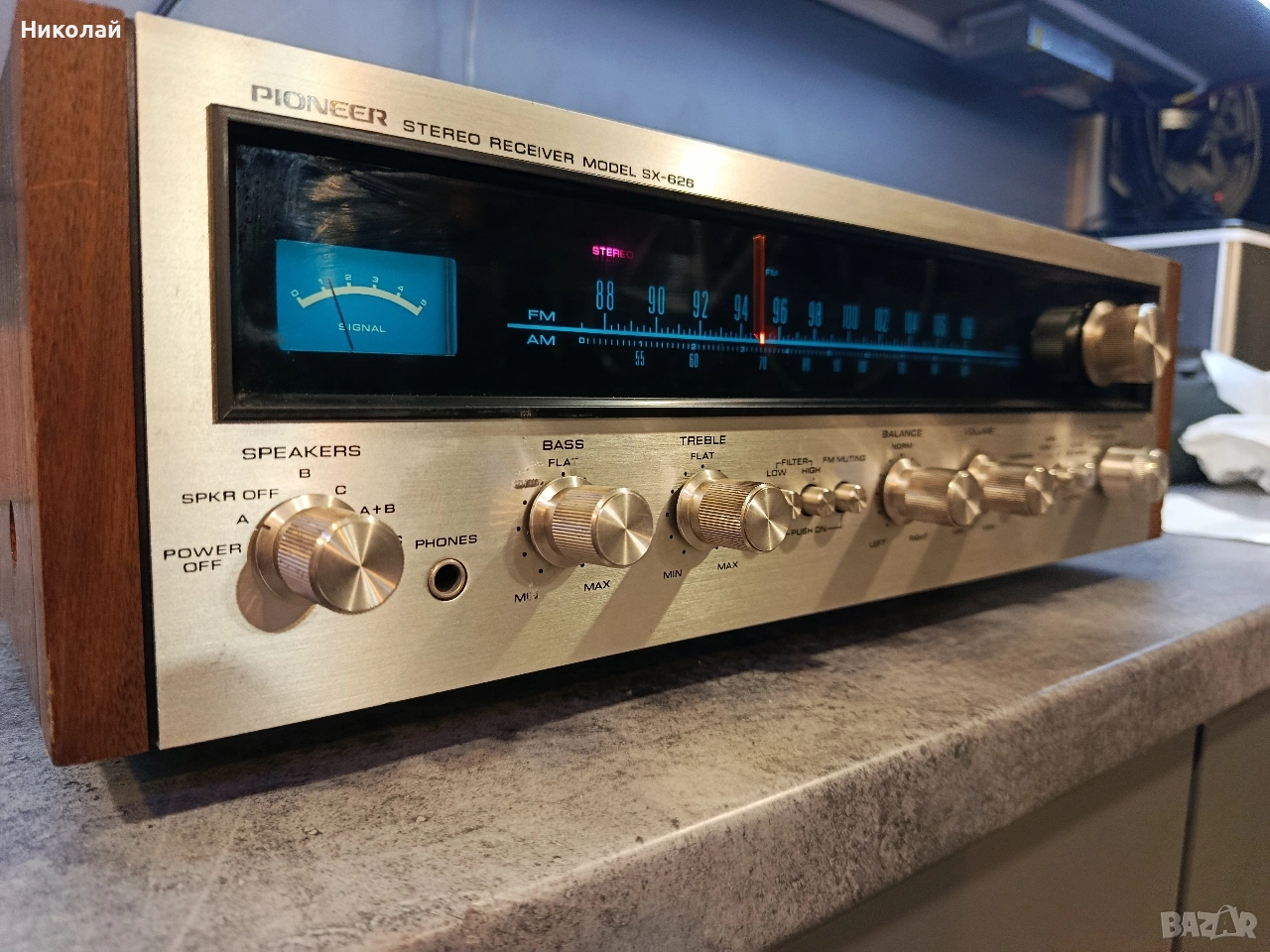

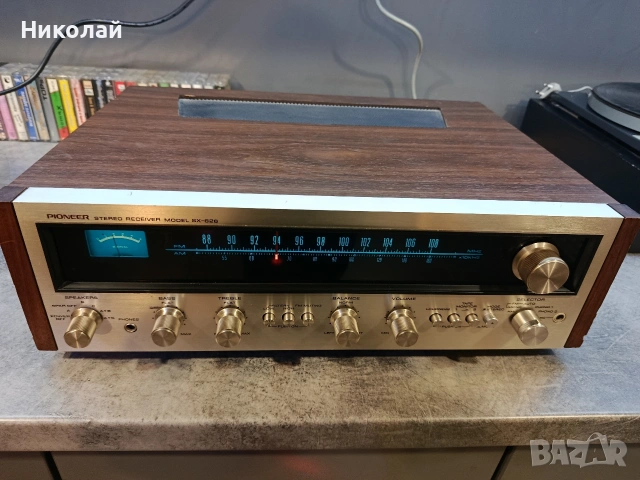

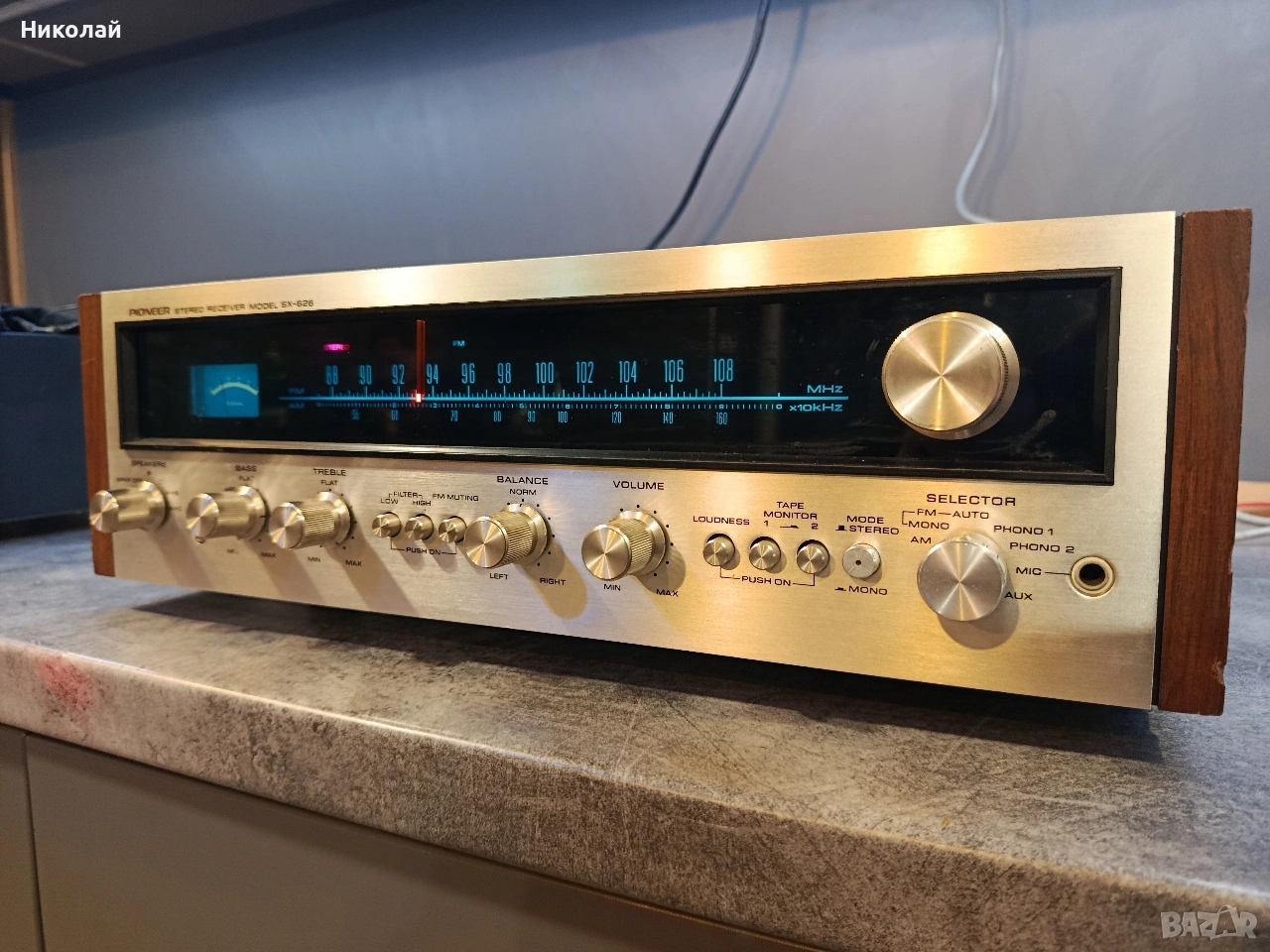

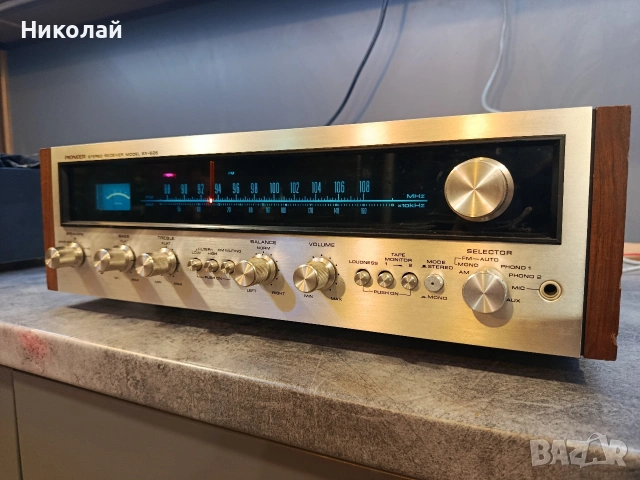

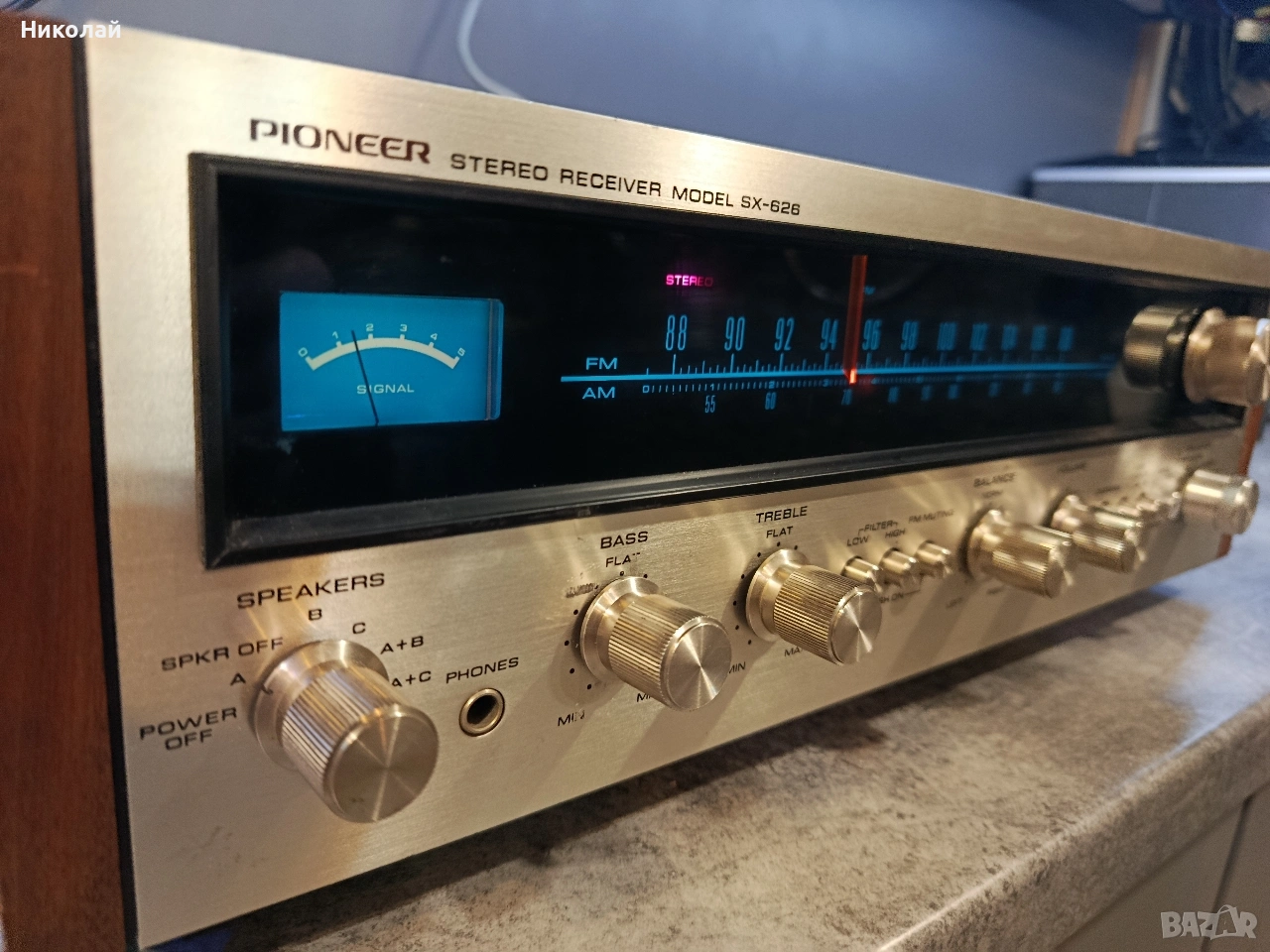

Ресийвър Pioneer SX-626
Състояние
Използвано
Доставка
Лично предаване; Купувача
Висок клас ресийвър.Страхотна визия, съчетана с невероятен звук.Две от копчета не са оригинални,цената е съобразена с това.
Manufacturer: Pioneer
Model: SX-626
Type: Receiver
Years of manufacture: 1972 - 1974
Made in: Japan
Color: front silver, wooden cabinet
Remote control: no
Power consumption: 170 W
Dimensions: 450 x 145 x 360 mm (WxHxD)
Weight: 9,9 kg
Original price approx.: 1'320 DM
Connections
Number of inputs:
Phono MM 1, 2: 2.5 mV / 45 kOhm.
Microphone (6,3mm jack): 2,2 mV / 22 kOhm
Aux: 200 mV, 100 kOhm
Tape 1, 2 Play: 200 mV / 70 kOhm
Tape Play (DIN): 200 mV / 70 kOhm
Main In: 500 mV / 60 kOhm (1 kHz, sine)
Antenna (FM: 75, 300 Ohm, MW: 300 Ohm).
Number of outputs:
Tape Rec 1, 2: 200 mV
Tape (DIN): 35 mV Pre Out: 500 mV, 3 V max.
Headphones (6.3mm jack)
3 pairs of speakers
Technical Data
Amplifier
Continuous power (at distortion):
8 Ohm: 2x 27 W
4 Ohm: 2x 30 W
dynamic power:
8 Ohm: 76 W
4 Ohm: 110 W
Total harmonic distortion: < 1%
Attenuation factor: 40 (8 Ohm, 1 kHz)
Frequency response:
Phono, RIAA: 20 - 20'000 Hz
High level: 7 - 80'000 Hz, ± 1 dB
Signal-to-noise ratio:
Phono, RIAA: 85 dB
High level: 95 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 10 dB at 100 Hz, +6 dB at 10 kHz
Subsonic: - 8 dB at 50 Hz, - 6 dB / octave
High Filter: - 9 dB at 10 kHz, - 6 dB / octave
Mute:
Tuner
Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 2.0µV
MW: 10µV
All other specifications for VHF
Frequency response: 20 - 15'000 Hz, + 0 dB, - 1 dB
Distortion factor:
FM: < 0.4% (mono), < 0.5% (stereo)
Signal-to-noise ratio: 70 dB (FM), > 50 dB (AM)
Channel separation: > 40 dB (1 kHz)
Selectivity:
FM: > 70 dB
AM: > 30 dB
Common mode selection: 2.5 dB
spurious attenuation: > 90 dB (98 MHz)
Image frequency attenuation:
FM: > 80 dB (98 MHz)
AM: > 80 dB (1,000 kHz)
IF attenuation:
FM: > 100 dB (90 MHz)
AM: > 70 dB
AM suppression: 50 dB
Special Features
Pre- and power amplifier separable (Main In/Pre Out)
Manufacturer: Pioneer
Model: SX-626
Type: Receiver
Years of manufacture: 1972 - 1974
Made in: Japan
Color: front silver, wooden cabinet
Remote control: no
Power consumption: 170 W
Dimensions: 450 x 145 x 360 mm (WxHxD)
Weight: 9,9 kg
Original price approx.: 1'320 DM
Connections
Number of inputs:
Phono MM 1, 2: 2.5 mV / 45 kOhm.
Microphone (6,3mm jack): 2,2 mV / 22 kOhm
Aux: 200 mV, 100 kOhm
Tape 1, 2 Play: 200 mV / 70 kOhm
Tape Play (DIN): 200 mV / 70 kOhm
Main In: 500 mV / 60 kOhm (1 kHz, sine)
Antenna (FM: 75, 300 Ohm, MW: 300 Ohm).
Number of outputs:
Tape Rec 1, 2: 200 mV
Tape (DIN): 35 mV Pre Out: 500 mV, 3 V max.
Headphones (6.3mm jack)
3 pairs of speakers
Technical Data
Amplifier
Continuous power (at distortion):
8 Ohm: 2x 27 W
4 Ohm: 2x 30 W
dynamic power:
8 Ohm: 76 W
4 Ohm: 110 W
Total harmonic distortion: < 1%
Attenuation factor: 40 (8 Ohm, 1 kHz)
Frequency response:
Phono, RIAA: 20 - 20'000 Hz
High level: 7 - 80'000 Hz, ± 1 dB
Signal-to-noise ratio:
Phono, RIAA: 85 dB
High level: 95 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 10 dB at 100 Hz, +6 dB at 10 kHz
Subsonic: - 8 dB at 50 Hz, - 6 dB / octave
High Filter: - 9 dB at 10 kHz, - 6 dB / octave
Mute:
Tuner
Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 2.0µV
MW: 10µV
All other specifications for VHF
Frequency response: 20 - 15'000 Hz, + 0 dB, - 1 dB
Distortion factor:
FM: < 0.4% (mono), < 0.5% (stereo)
Signal-to-noise ratio: 70 dB (FM), > 50 dB (AM)
Channel separation: > 40 dB (1 kHz)
Selectivity:
FM: > 70 dB
AM: > 30 dB
Common mode selection: 2.5 dB
spurious attenuation: > 90 dB (98 MHz)
Image frequency attenuation:
FM: > 80 dB (98 MHz)
AM: > 80 dB (1,000 kHz)
IF attenuation:
FM: > 100 dB (90 MHz)
AM: > 70 dB
AM suppression: 50 dB
Special Features
Pre- and power amplifier separable (Main In/Pre Out)
