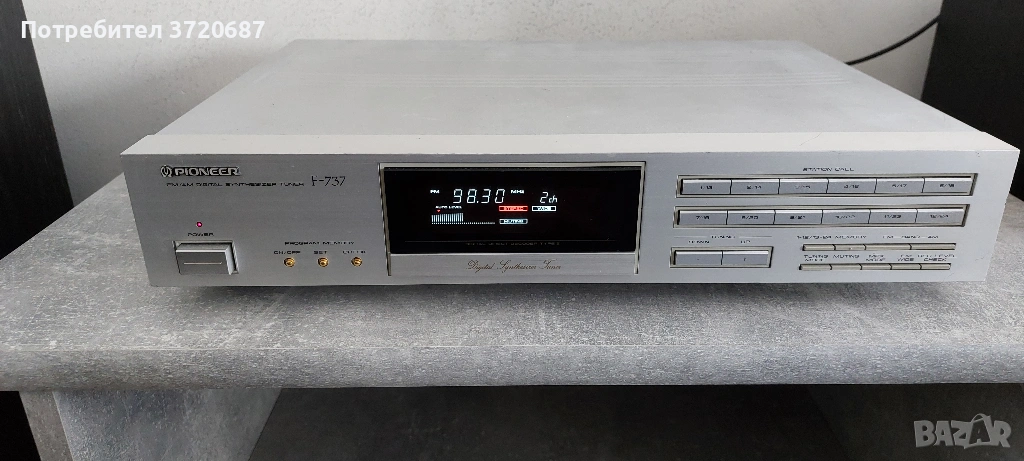

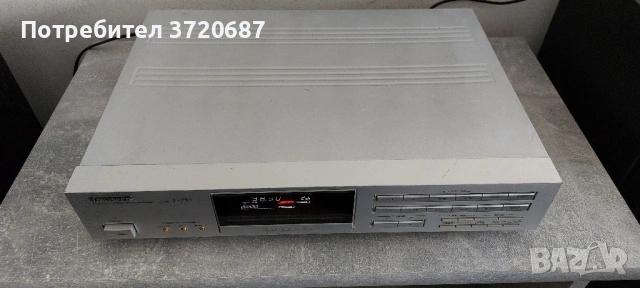

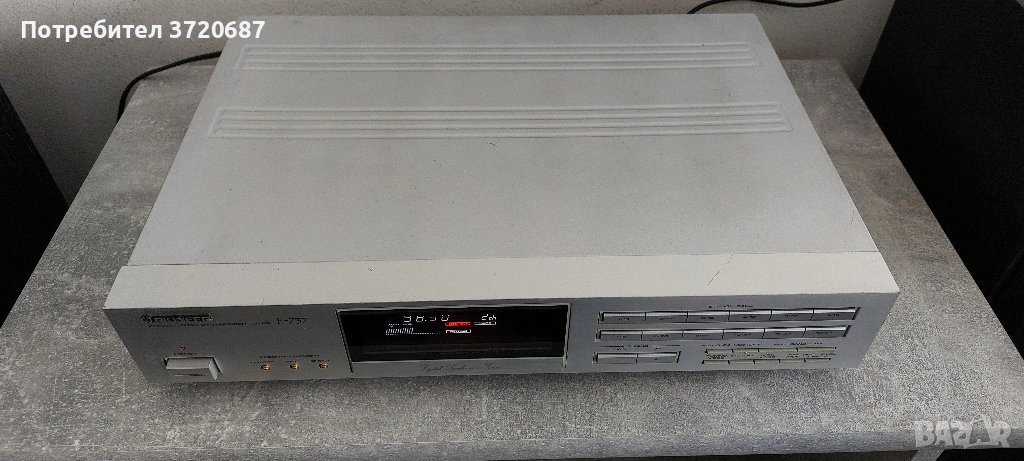

Цифров тунер Pioneer F-737
Доставка
Лично предаване; Купувача
General
Manufacturer: Pioneer
Model: F-737
Type: Tuner
Years of manufacture: 1988 - 1989
Made in: Japan
Colors: Silver, Black
Remote control: no
Power consumption: 10 W
Dimensions: 420 x 86 x 316 mm (WxHxD)
Weight: 4.1 kg
Original price approx.: 700 DM
Technical data
Frequency response: 20 Hz - 15 kHz (FM)
Output: 650 mV (FM), 150 mV (MW)
Digital synthesizer with digital direct decoder
Input stage with wide dynamic range: A Pioneer ID MOS FET (P001)
ensures high sensitivity and good reception stability. * A balanced
mixer stage reduces RF intermodulation distortion.
Pioneer digital direct decoder type in: Excellent characteristics
due to digital signal processing with direct conversion of the frequency
modulated IF in the stereo channel components. High impurity spacing
due to detector with phase-locked loop (PLL).
Resonance-damping design: The honeycomb-reinforced chassis,
resin-filled oscillator module, and large damper feet improve sound
quality by effectively damping impact noise.
Fixed station presets for 24 FM/MW stations: Easy memory entry and recall at the touch of a button.
Timer preset: Up to three stations can be preset for timer-switched recording (timer not included).
Switchable muting threshold: Three response thresholds are available for muting inter-station noise.
Switchable bandwidth: WIDE for high quality reception with clean
reception, NARROW for increased selectivity when interference is
present.
Test tone generator: for measuring the recording level when recording to tape
Setting memory: All stations with reception status (bandwidth, muting on/off and MPX on/off) can be preprogrammed
MW antenna with good sensitivity
Clear fluorescent display
