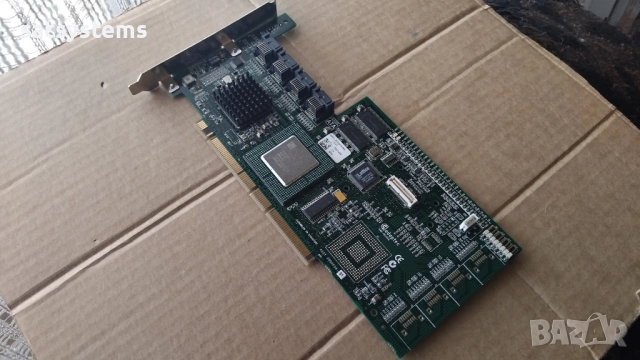

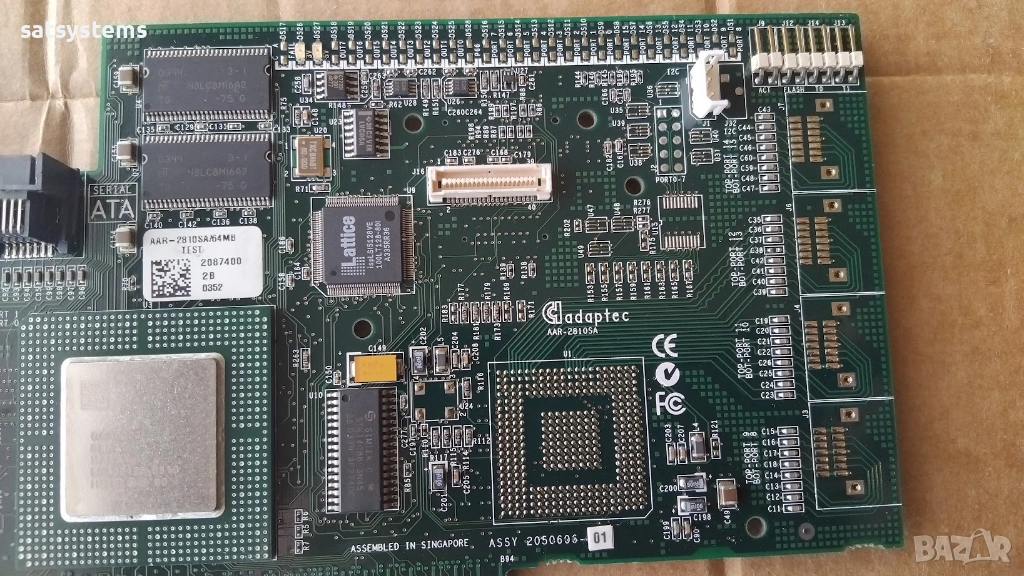

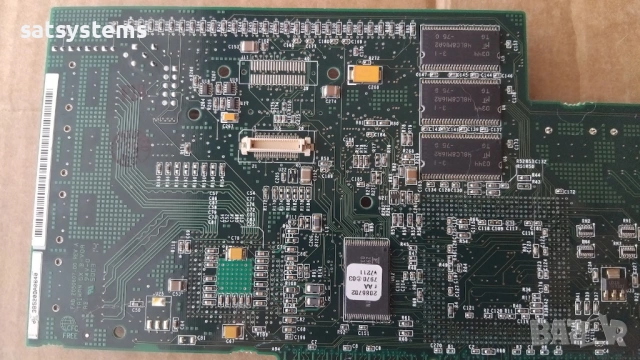

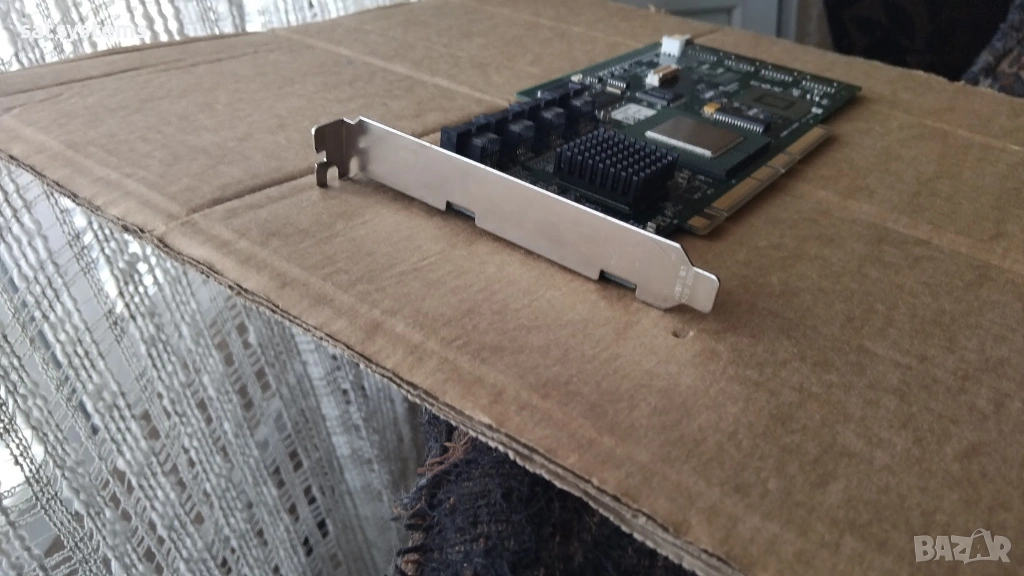

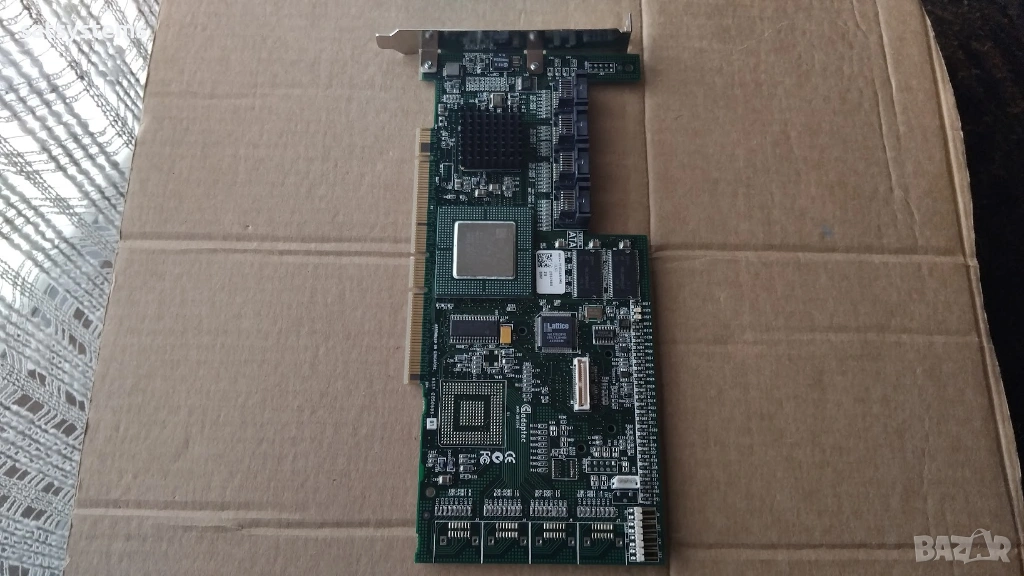

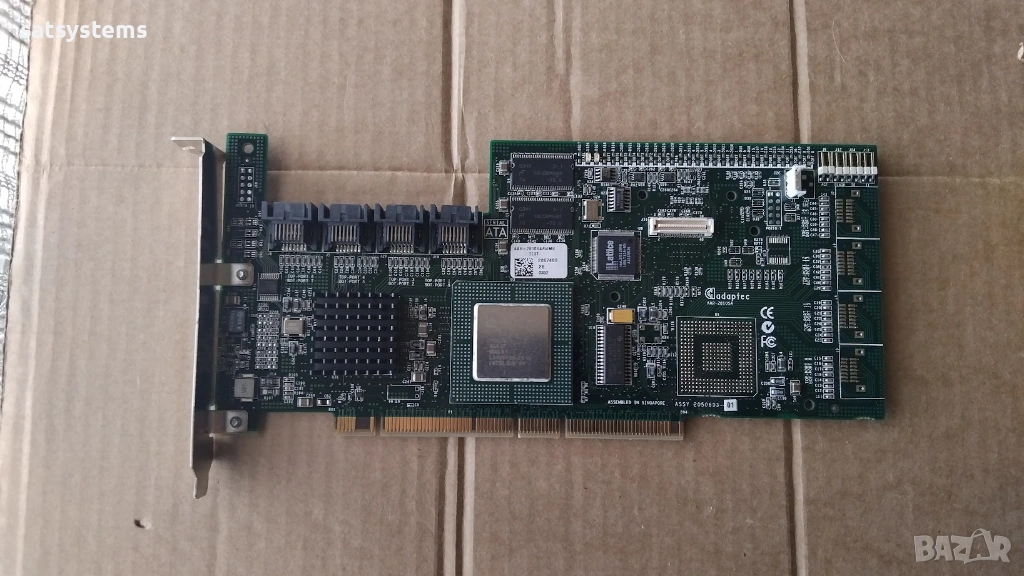

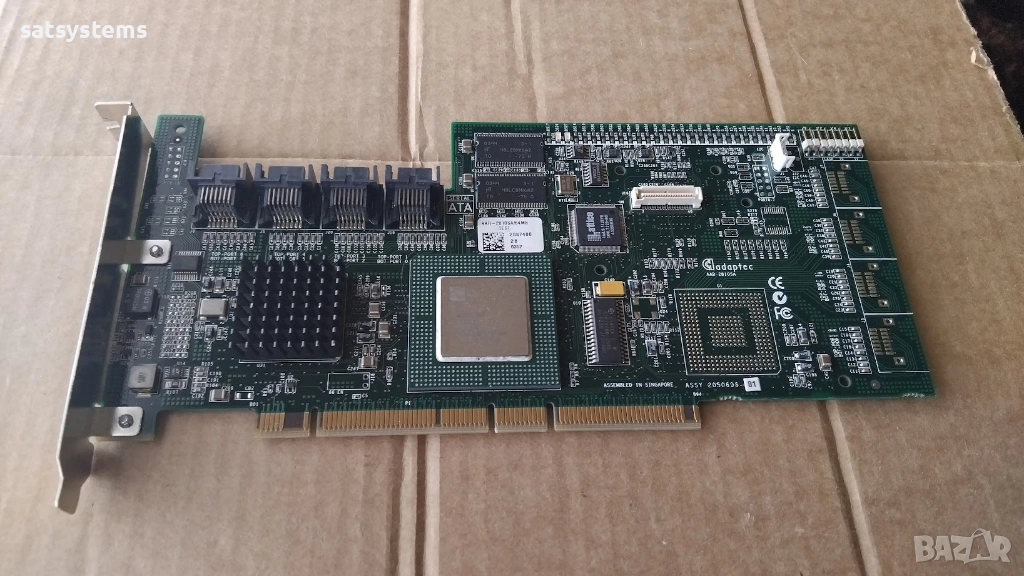

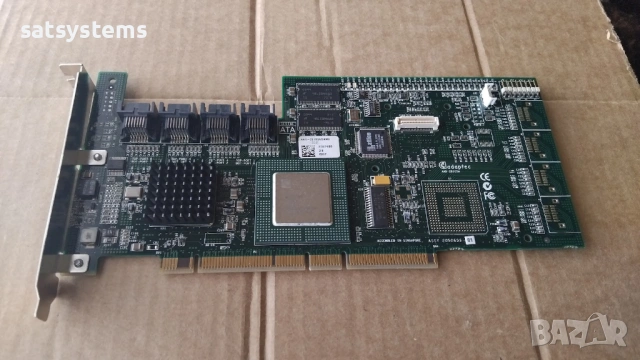

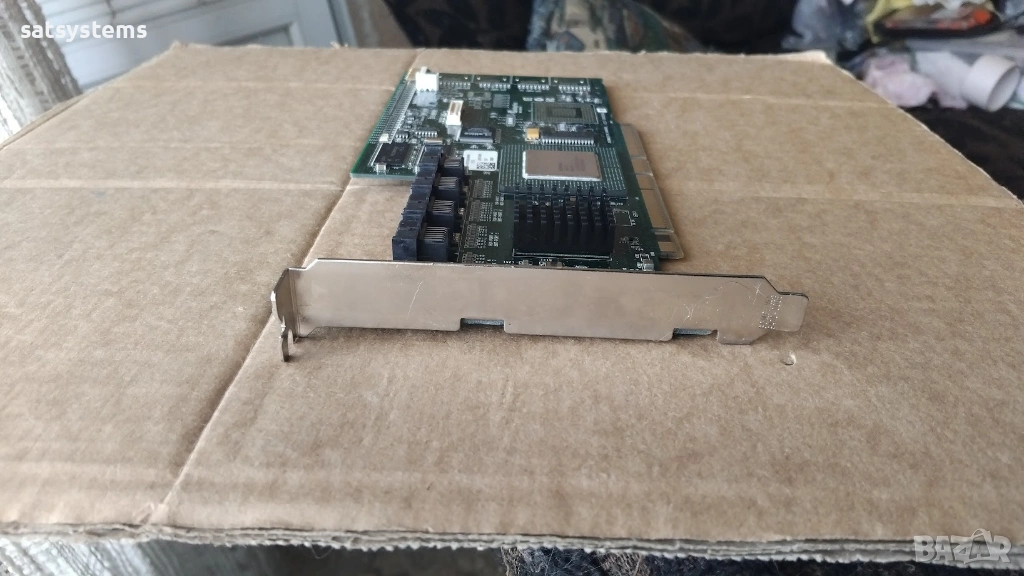

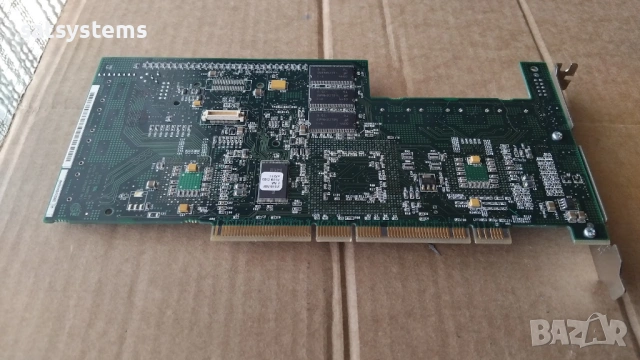

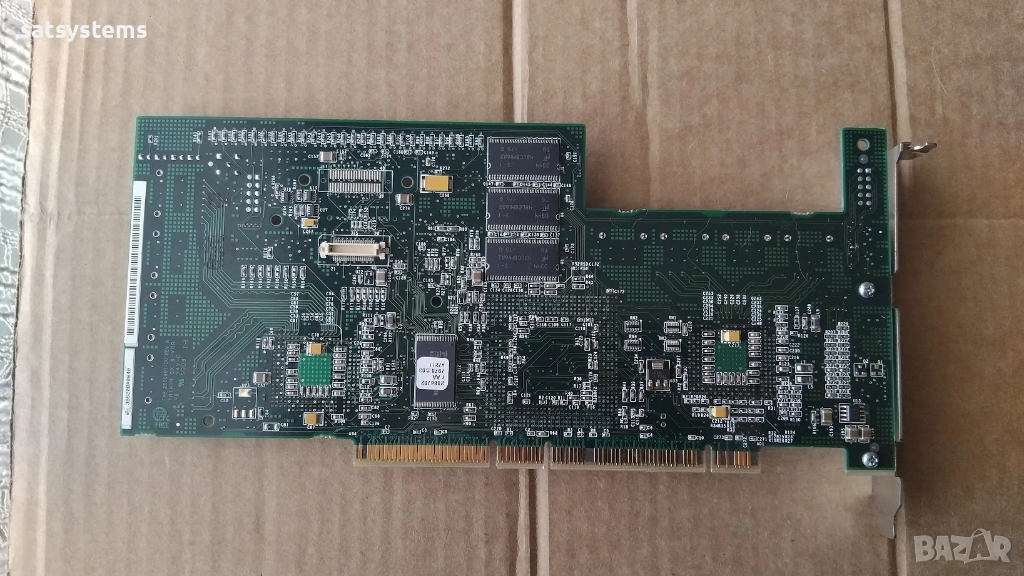

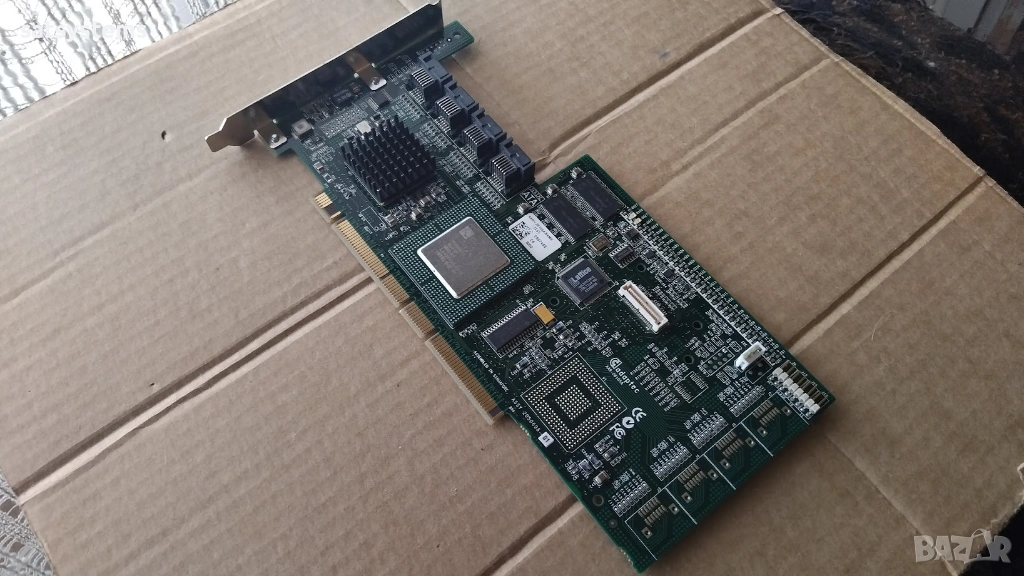

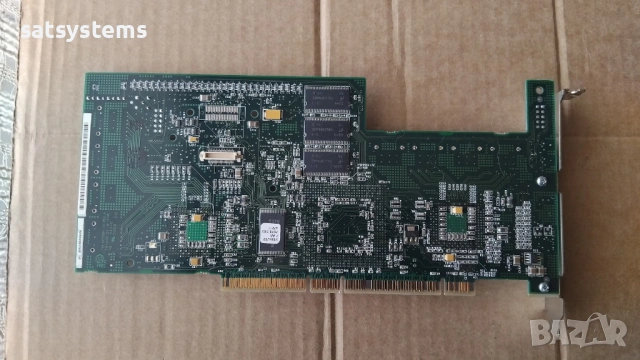

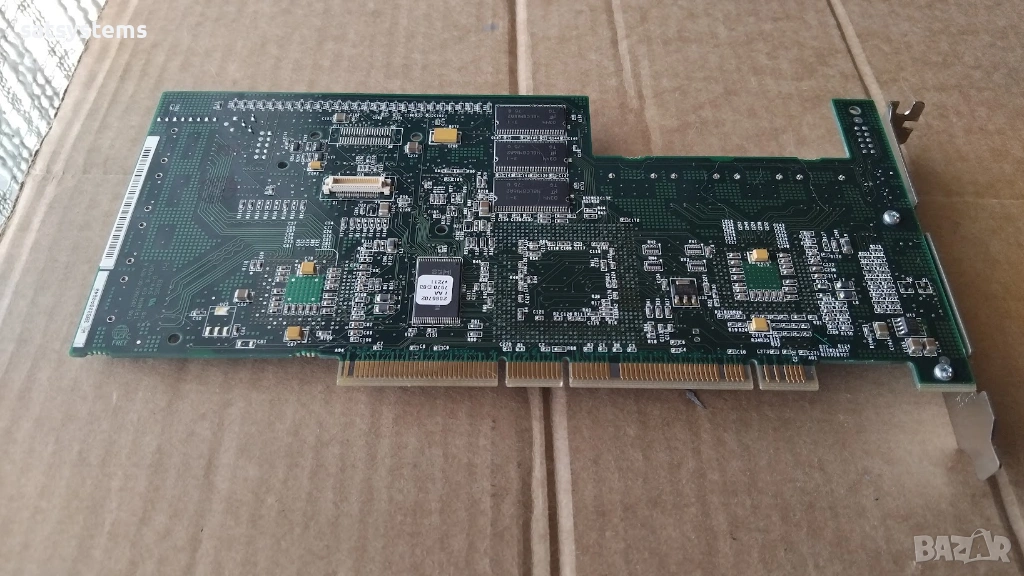

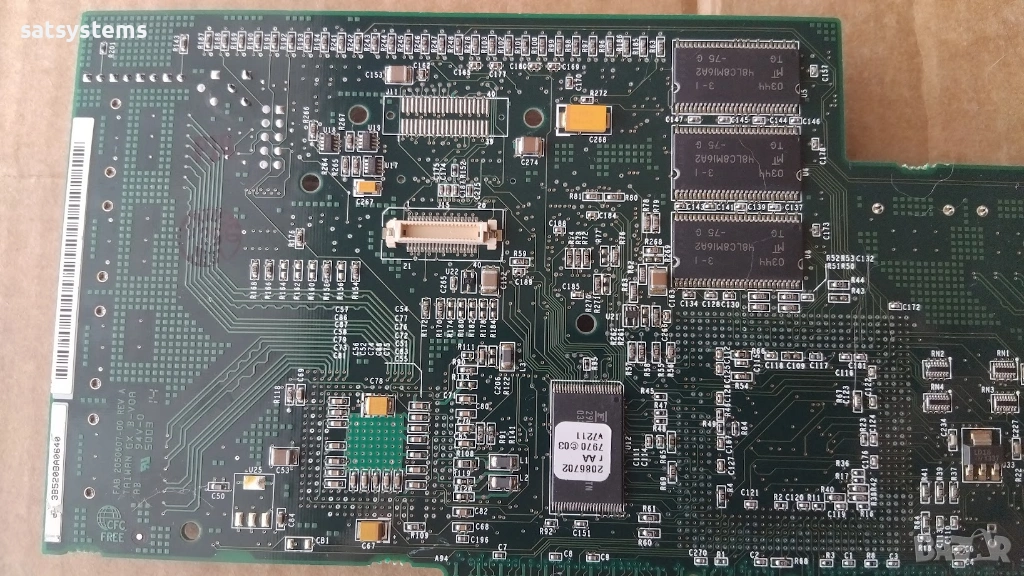

Adaptec AAR-2810SA 8-Port Serial ATA PCI-X RAID Controller Card With 64MB Cache
Продавам Adaptec AAR-2810SA 8-Port Serial ATA PCI-X RAID Controller Card With 64MB Cache
Adaptec AAR-2810SA 8-Port Serial ATA RAID Controller Card
8-Port SATA RAID Controller Card
This is a 8 channel Serial ATA RAID controller card that supports a variety of configurations including 0, 1, 5, 10, and JBOD. It is running the latest firmware, and is supported by both Adaptec 2x10SA drivers, and Dell drivers. All recent versions of Linux natively support this as an "afa" device. Works in Dell & non-Dell systems equally well.
Highlights
★ Octa Serial ATA drive ports
★ Intel 80302 66 MHz Intelligent I/O processor
★ RAID 0, 1, 10, 5 and JBOD
★ Optimized Disk Utilization
★ Online Capacity Expansion
★ RAID Level Migration
★ 48-bit LBA supports large drives
Supported Operating Systems
★ Microsoft Windows
★ Novell NetWare
★ Red Hat Linux
★ SuSE Linux
★ SCO UnixWare
★ Caldera OpenUnix
★ SCO OpenServer
★ FreeBSD
★ VMware ESX Server
Benefits
★ Advanced RAID features for high-end workstations and entry-level SATA servers.
Key Differentiators
★ Optimized Disk Utilization
★ RAID Level Migration
★ Online capacity expansion
★ Background initialization (for immediate RAID availability)
★ Enclosure Management ready
★ Hot-swap disk drive support for easy replacement
★ Hot-spare disk support with automatic rebuild
★ Supports bootable arrays
Customer Needs
★ Ideal for workstations as well as entry-level servers requiring advanced RAID features and supporting up to Six Serial ATA drives
System Environment
★ Desktop
Cache Memory
★ 64 MByte (onboard)
RAID Levels
★ 0, 1, 5, 10 & JBOD
Key RAID Features
★ Optimized disk utilization
★ Online RAID Level Migration
★ Online capacity expansion
★ Immediate RAID availability (background initialization)
★ S.M.A.R.T. support
Number of Devices
★ Up to 8 Serial ATA drives
Bus System Interface Type
★ 64-bit/66MHz PCI (32bit/33MHz compatible)
Internal Connectors
★ Octa Serial ATA ports
Data Transfer Rate
★ Up to 1.5 Gbits/sec
System Requirements
★ Available PCI slot meeting PCI 2.2 specification
Board Dimensions
★ 2.5 in. H x 6.6 in. L 6.4 cm H x 16.8 cm L
Power Consumption
★ 1.6 amps @ +5V
Контролера е в перфектно състояние.
Тестван е и работи отлично.
Пращам с Еконт (преглед и тест )
