JVC VR-5525L → Обява 55053058
JVC VR-5525L
Състояние
Използвано
Доставка
Купувача

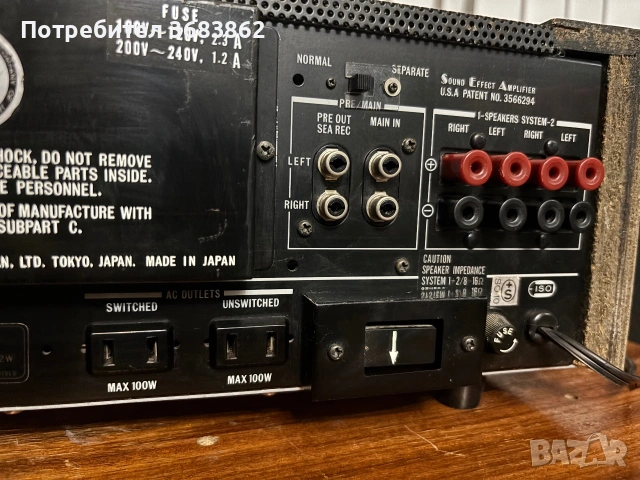

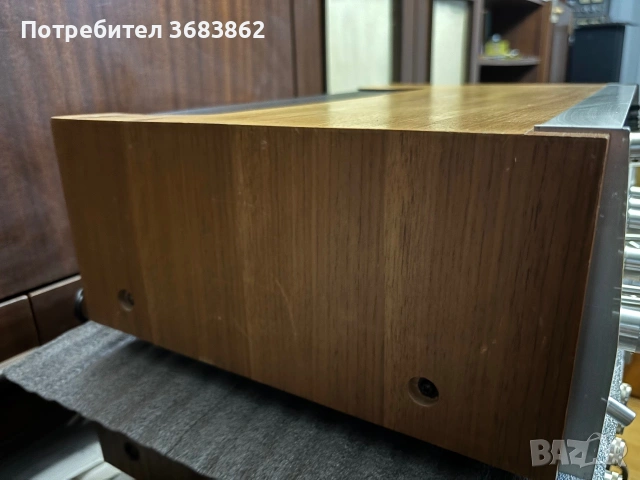

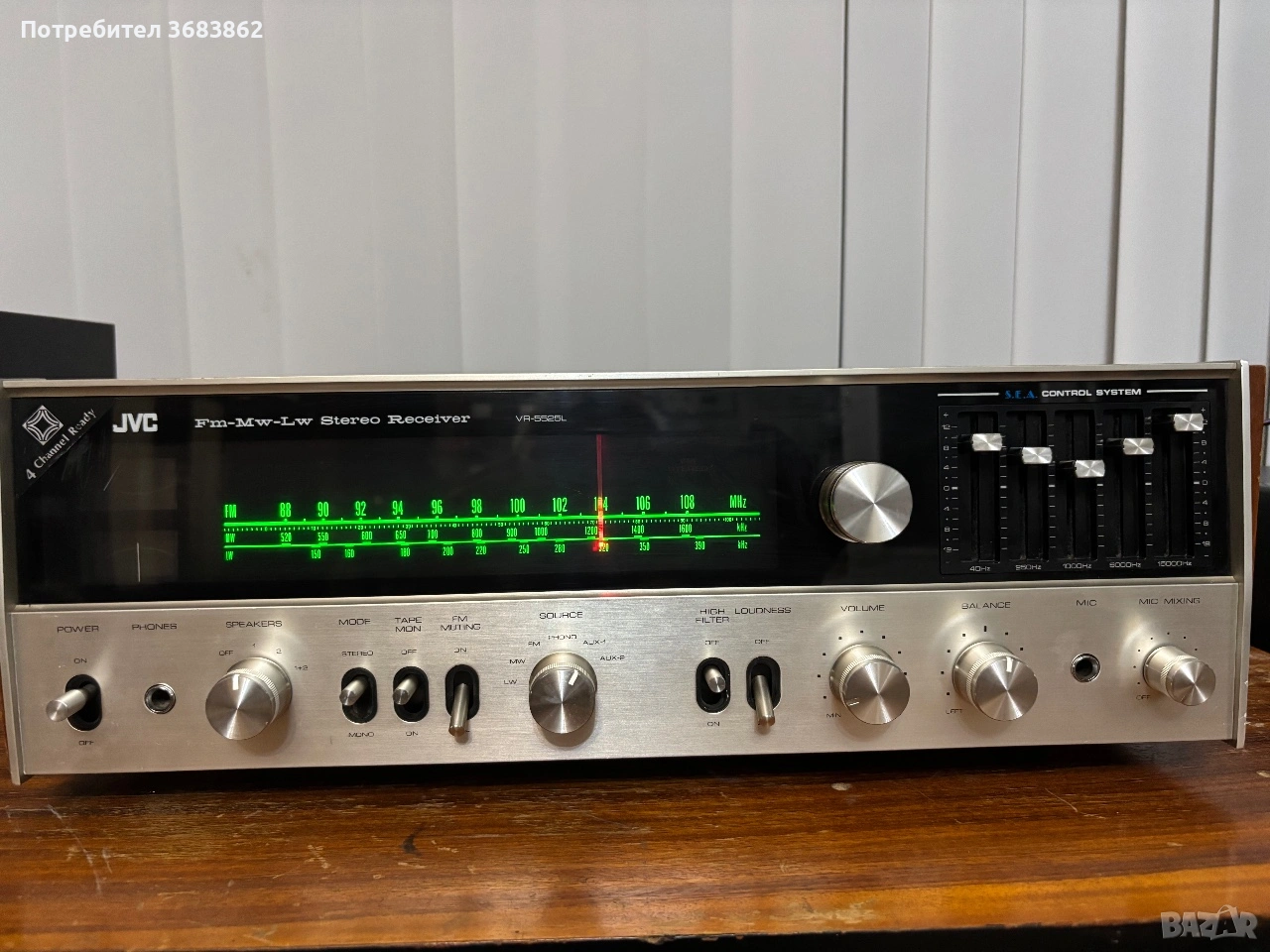

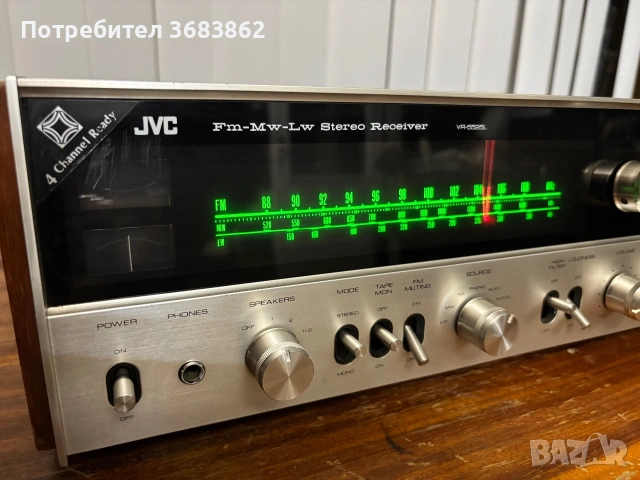

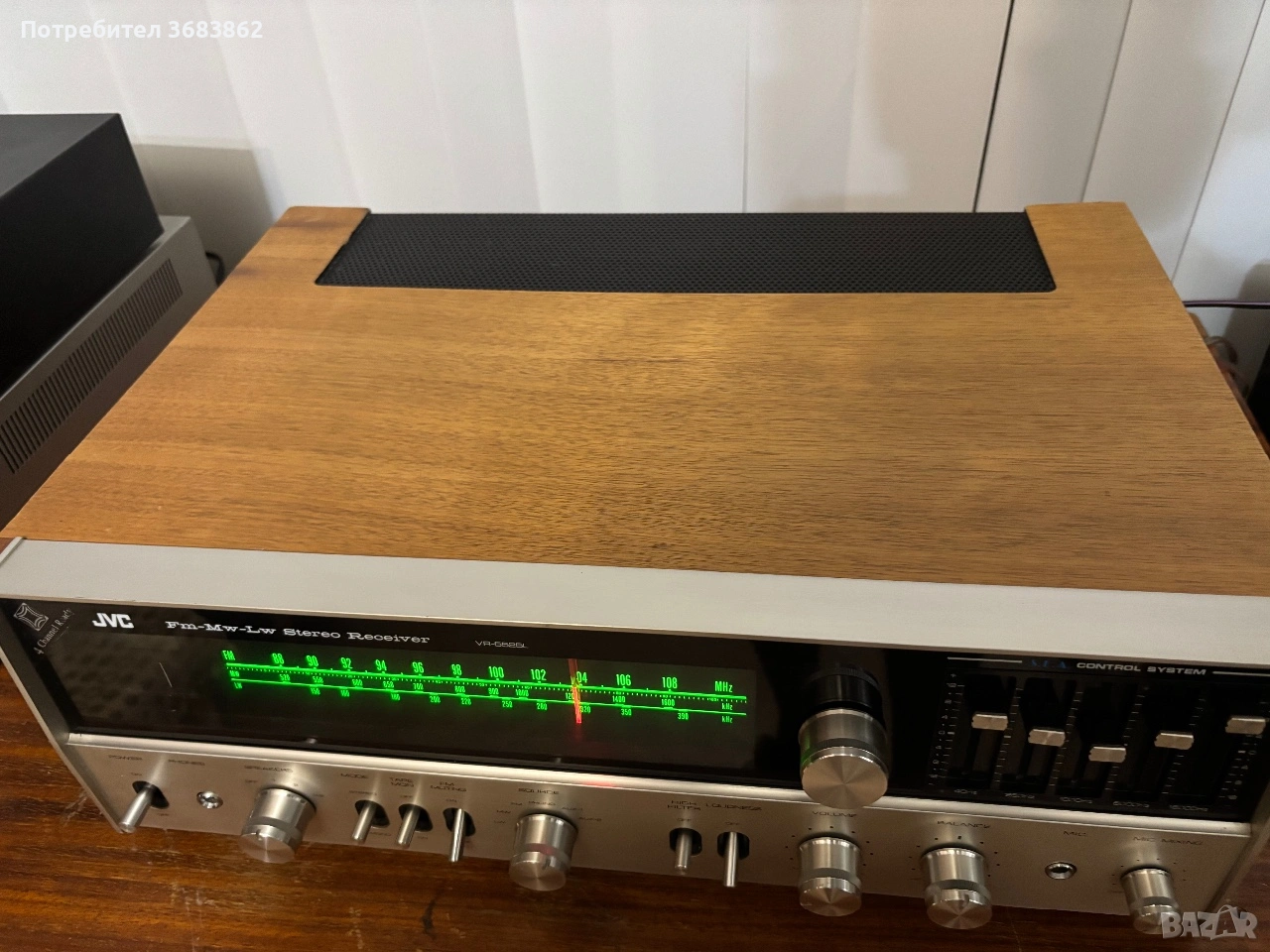

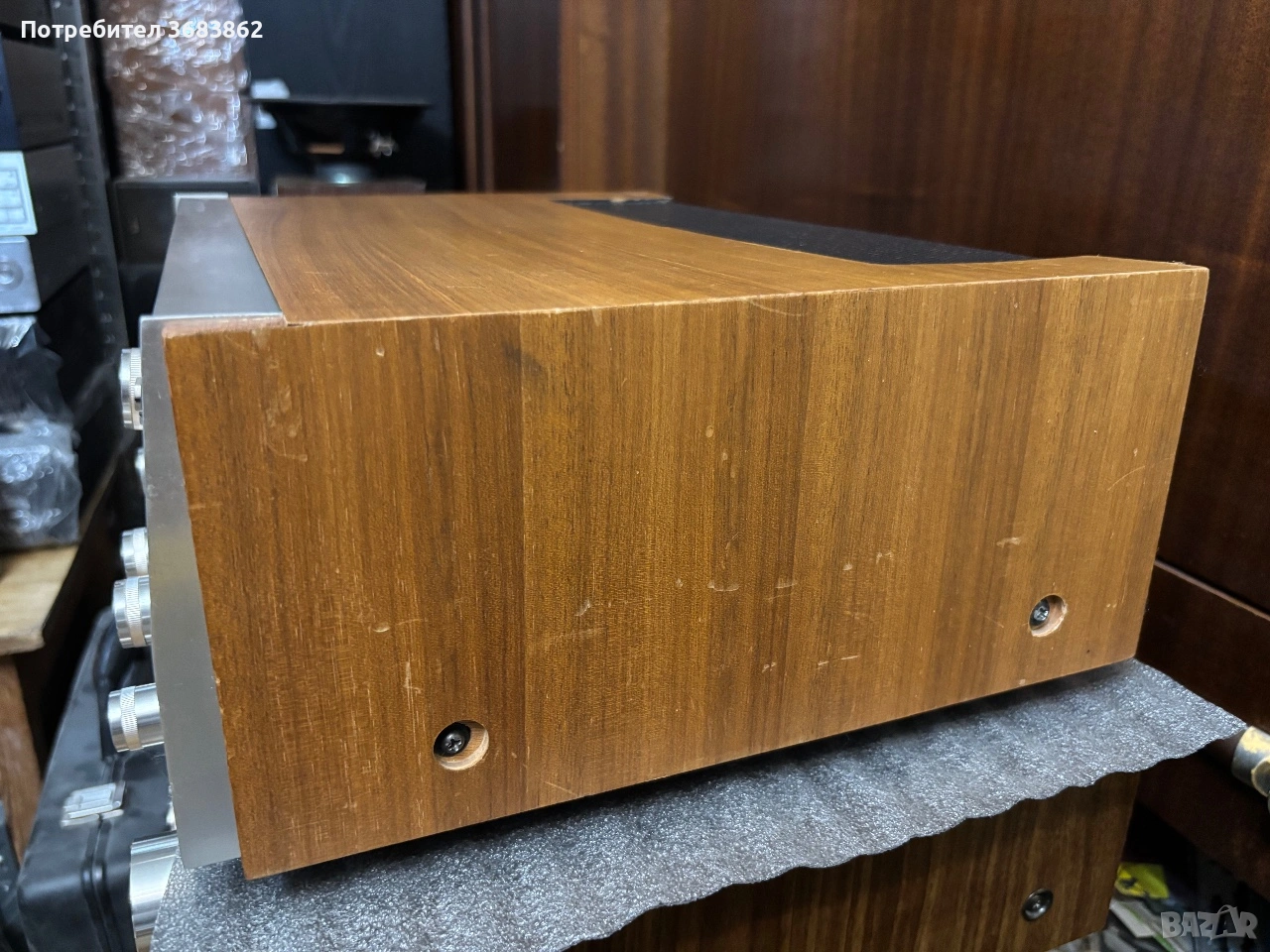

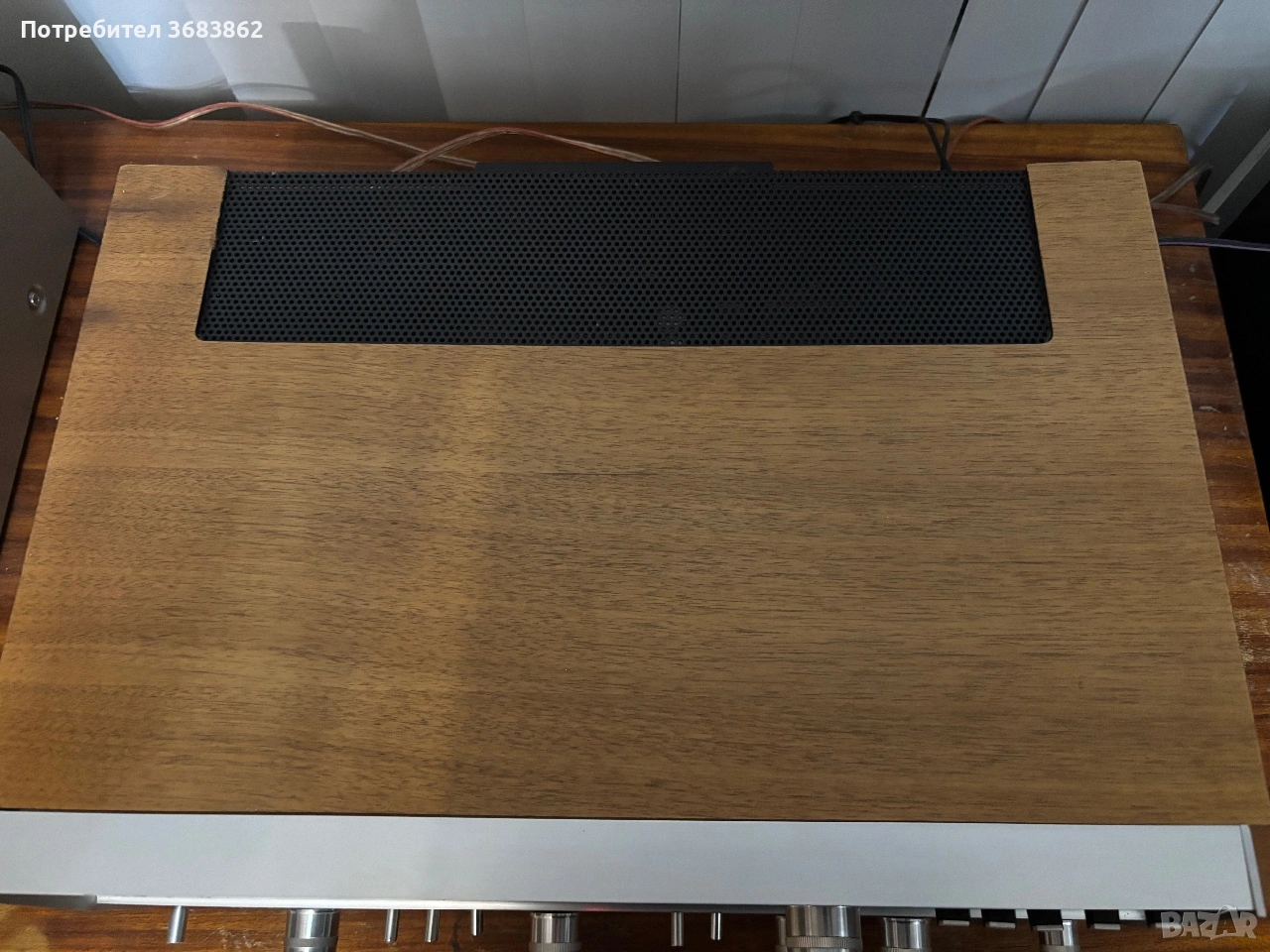

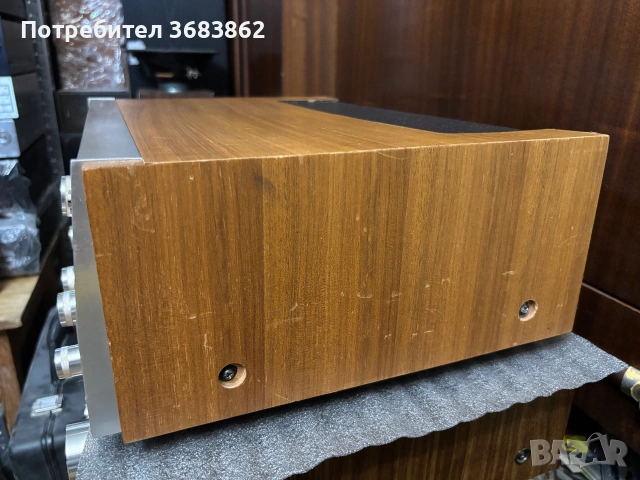

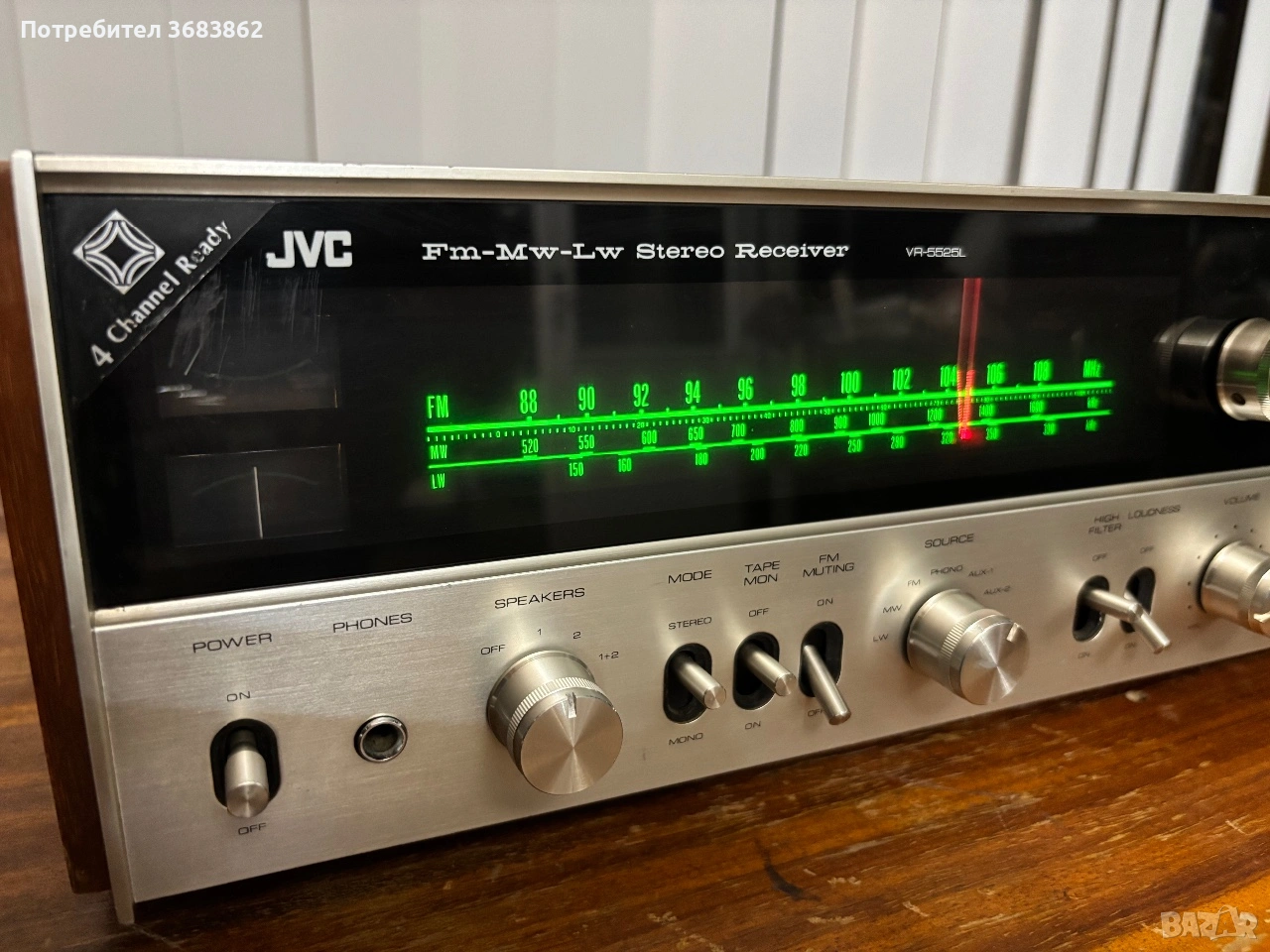

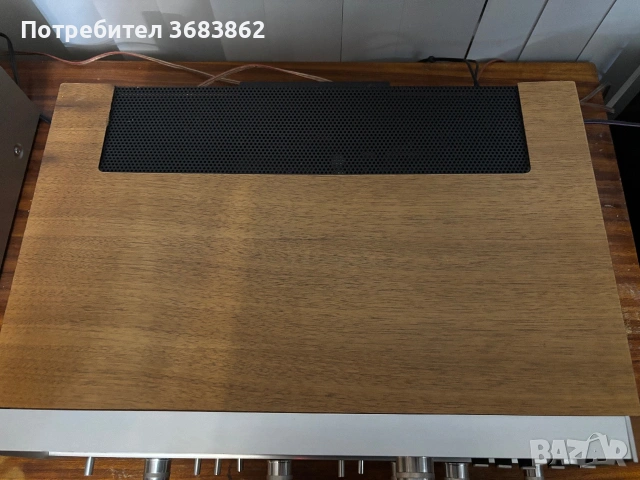

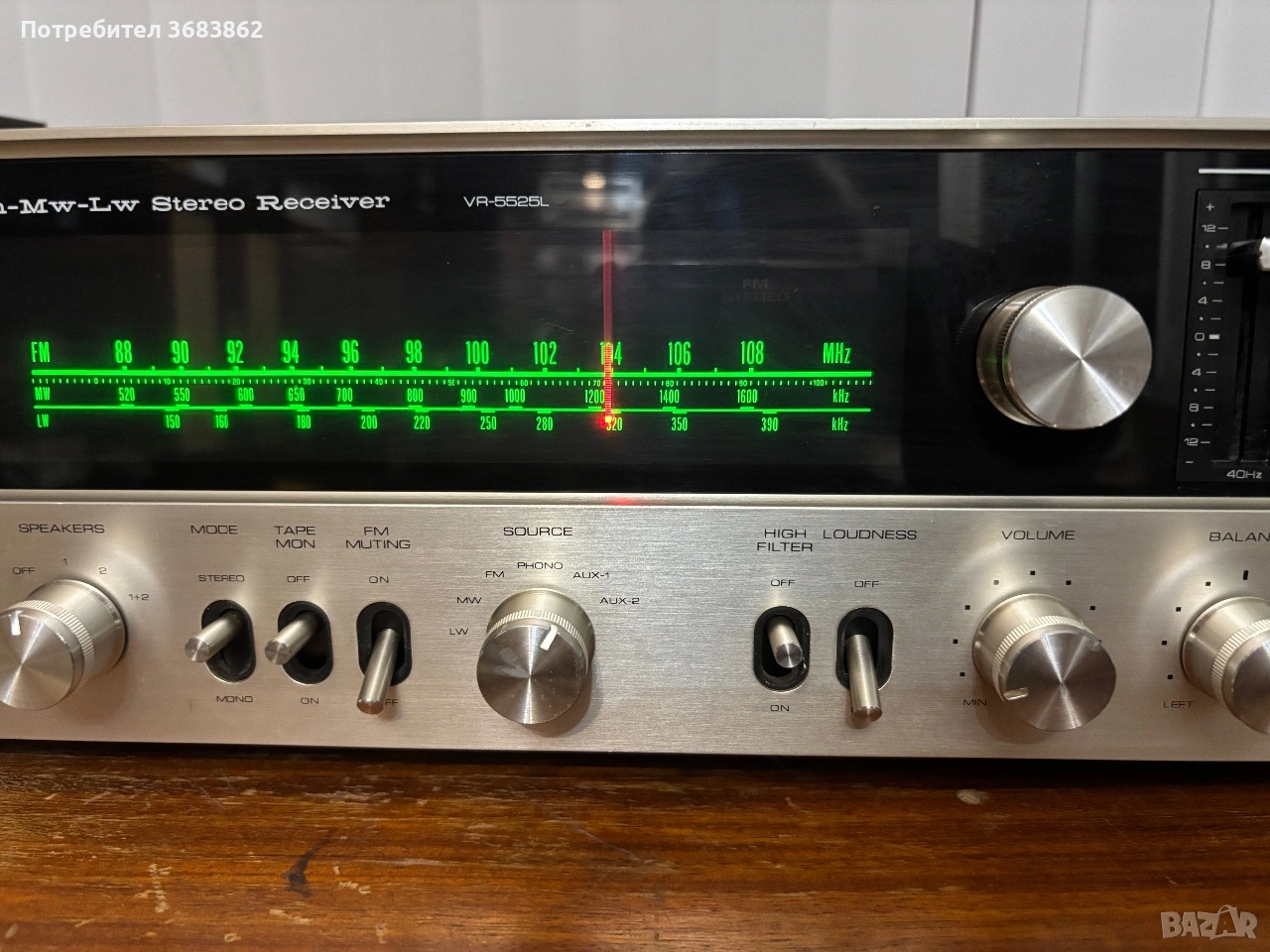

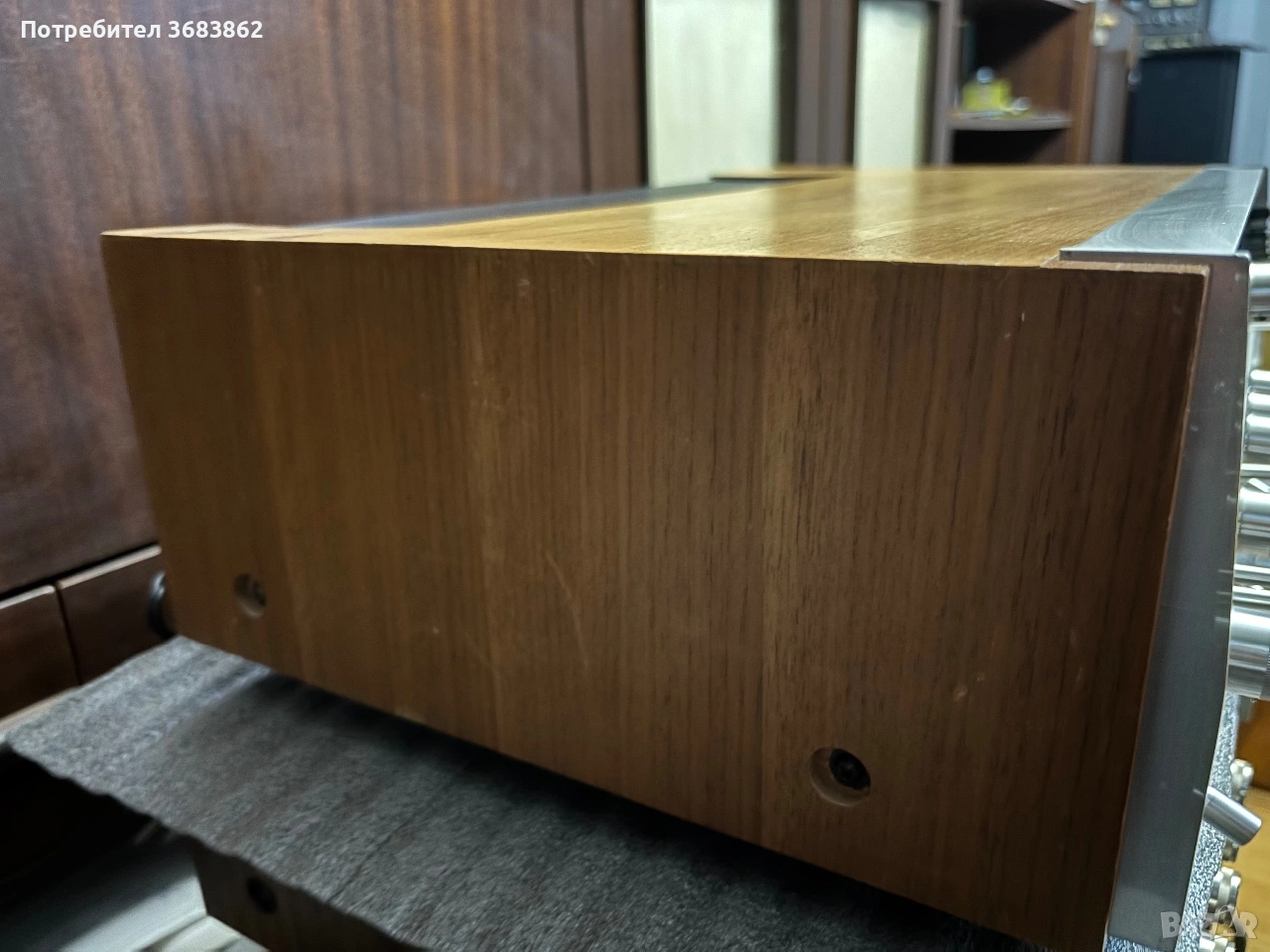

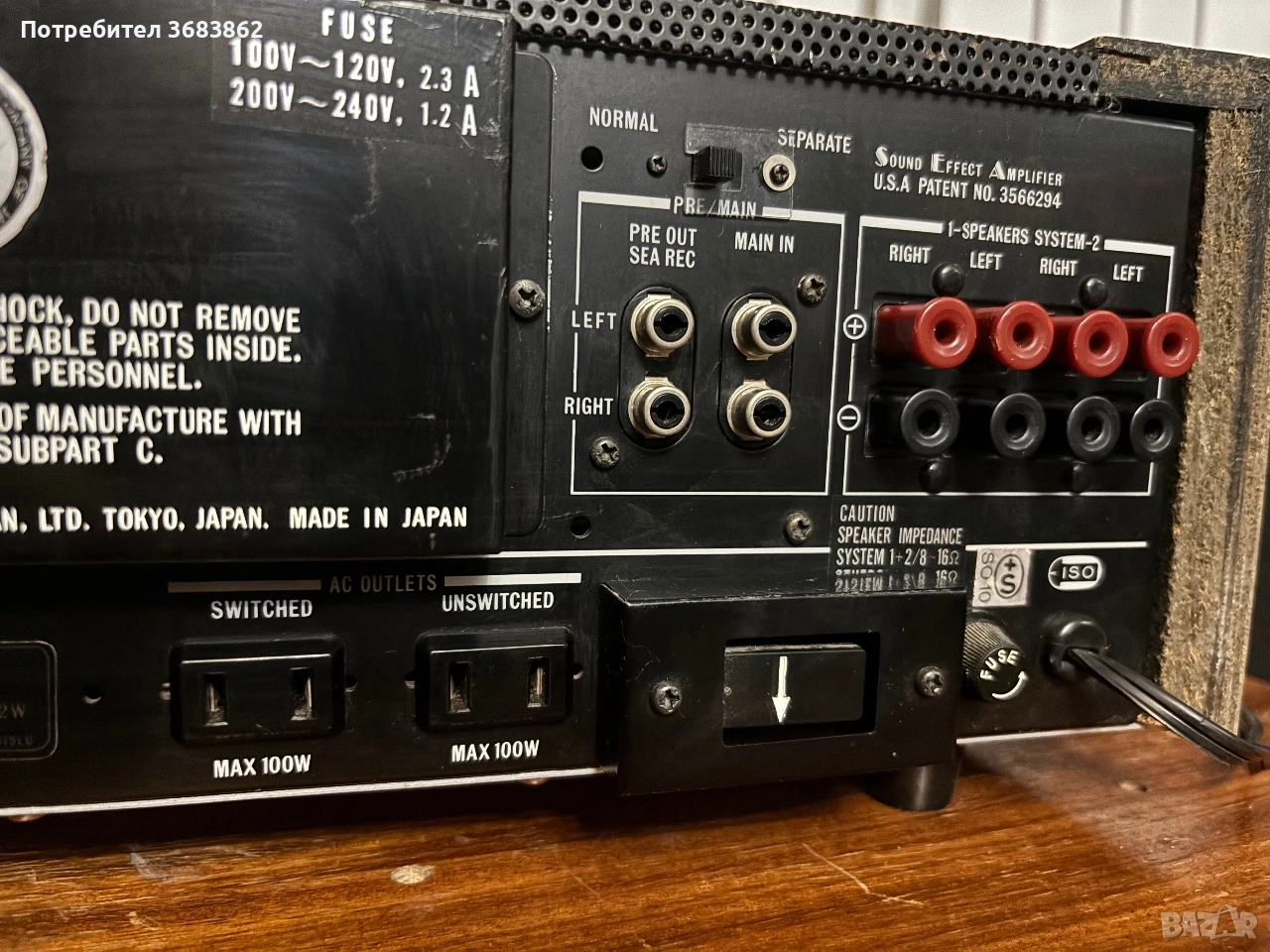

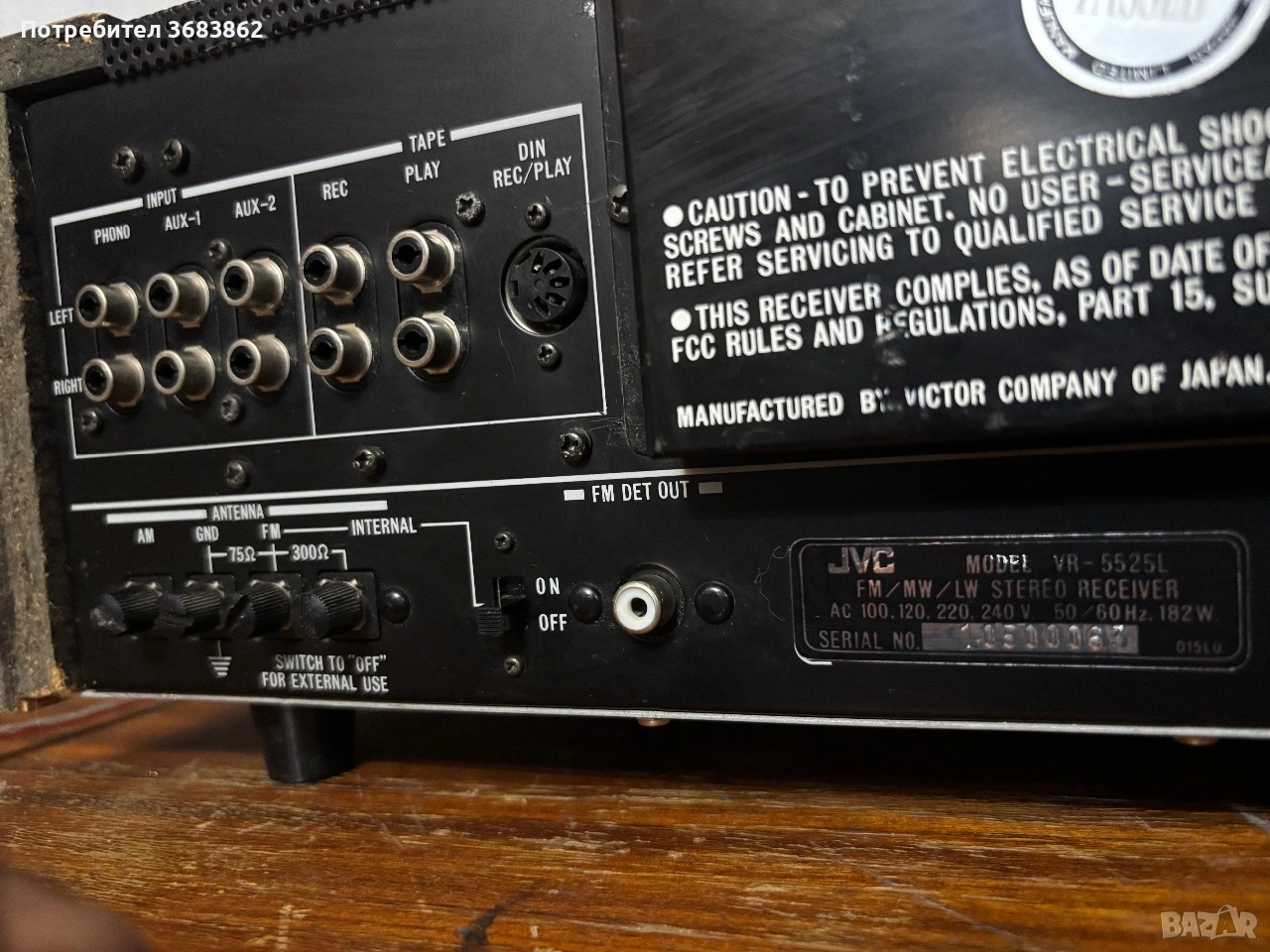

Продавам Stereo Receiver JVC VR-5525 в много добро визуално и техническо състояние. Не работи под сметката за силата на сигнала и фиксирането на станциите - виж снимките.
General
Manufacturer: JVC
Model: VR-5525 L
Type: Receiver
Years of manufacture: 1975 - 1976
Made in: Japan
Color: Front champagne, wood housing walnut
Remote control: -
Power consumption:
Dimensions (WxHxD): 452 x 155 x 324 mm.
Weight: 9 kg
New price approx.: 350 US-$, corresponds to about 1'400 DM

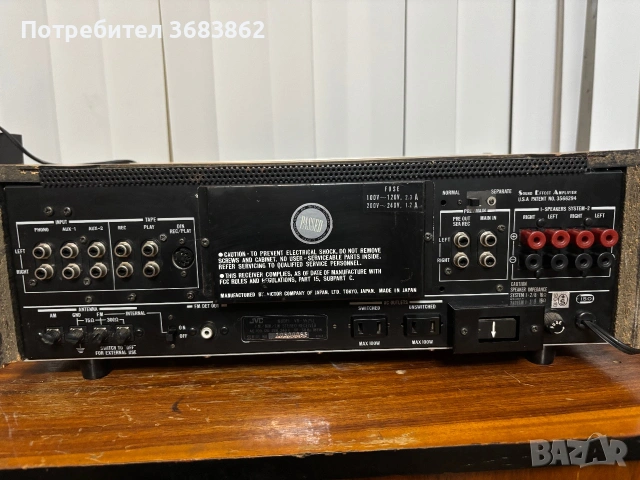

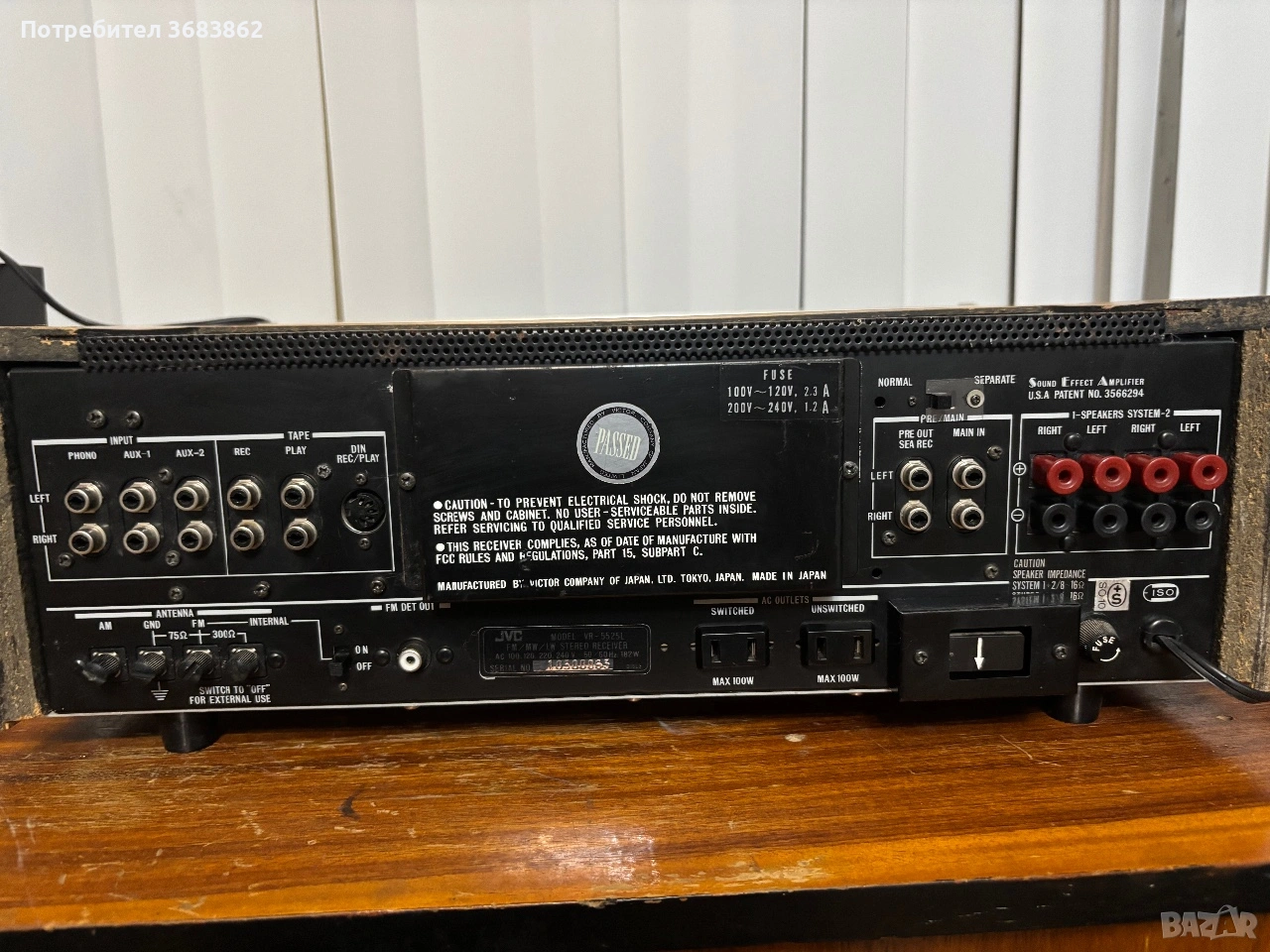

Connections:
Number of inputs:
Phono: 2.5 mV
Microphone: 3 mV
AUX: 120 mV
Tape Play: 120 mV
Tape Play DIN:
Main In:
Coaxial FM antenna connection (75 Ohm, 300 Ohm)
AM antenna connection (300 Ohm)
Number of Outputs:
Tape Rec: 150 mV
Tape Rec DIN: 30 mV Pre Out:
2 pairs of loudspeakers
Headphones: 6.3 mm jack each
Technical Data:
Amplifier:
Continuous power: 20- 20 kHz
8 Ohm: 2 x 15 Watt 4 Ohm: 2 x 15 Watt
Continuous power: 1 kHz
8 Ohm: 2 x 20 Watt
4 Ohm: 2 x 25 Watt
Music power:
8 Ohm: 60 W
4 Ohm: 80 W
Total harmonic distortion: 0.5 % at rated power
Attenuation factor:
Frequency response: 15 - 50'000 Hz
Power bandwidth: 15 - 25'000 Hz
Signal-to-noise ratio:
Phono: 65 dB
High Level: 70 dB

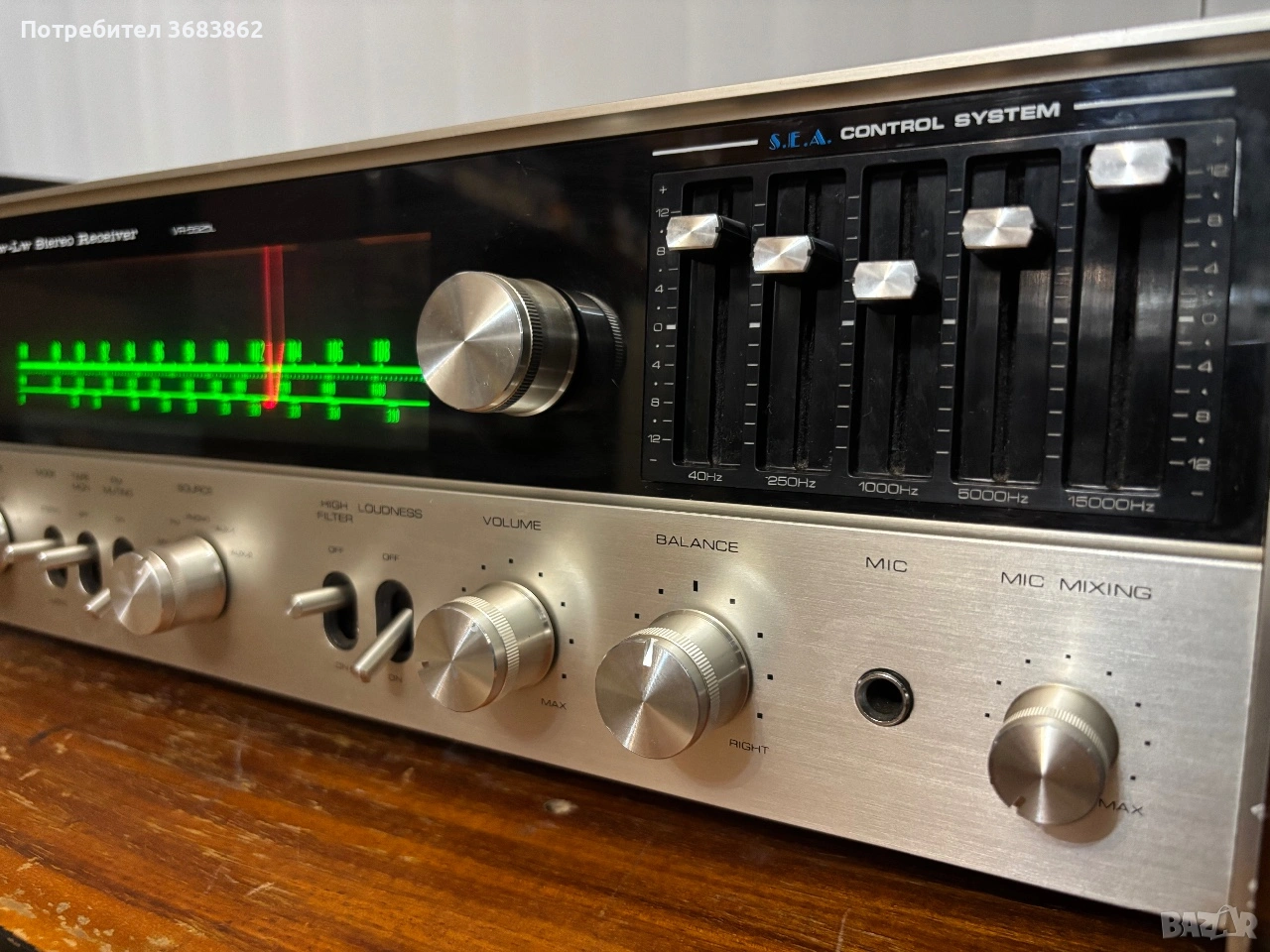

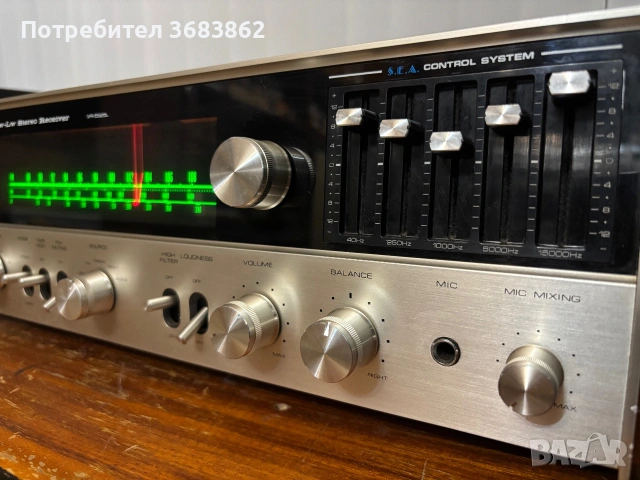

Tone control: Equalizer with 5 sliders
Control range: ± 12 dB
Operating frequencies: 40 Hz, 250 Hz, 1 kHz, 5 kHz, 15 kHz
Loudness: yes, + 12 dB at 50 Hz, + 6 dB at 10 kHz
Low Filter:
High Filter:
Muting:
Tuner:
Reception: FM, MW, LW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1600 kHz LW: 150 - 350 kHz
Input sensitivity:
VHF: 2.2 µV
MW: 30 µV
LW: 50 µV
Frequency response: 20 - 15'000 Hz, ± 1 dB
Distortion factor FM: Mono 0.5 %, Stereo 0.8 %
Signal-to-noise ratio:
FM: 60 dB
AM: 55 dB
Stereo channel separation: > 33 dB at 1 kHz
Selectivity:
FM: 60 dB
AM: 30 dB
Co-wave selection: 2.5 dB
Spurious wave selection: 65 dB
Mirror frequency attenuation:
FM: 55 dB
MW: 45 dB
LW: 35 dB
IF attenuation:
FM: 80 dB
MW: 50 dB
AM suppression: 50 dB
Special Features
Microphone Mixer
6.3 mm jack plug on front panel
4-channel prepared
General
Manufacturer: JVC
Model: VR-5525 L
Type: Receiver
Years of manufacture: 1975 - 1976
Made in: Japan
Color: Front champagne, wood housing walnut
Remote control: -
Power consumption:
Dimensions (WxHxD): 452 x 155 x 324 mm.
Weight: 9 kg
New price approx.: 350 US-$, corresponds to about 1'400 DM
Connections:
Number of inputs:
Phono: 2.5 mV
Microphone: 3 mV
AUX: 120 mV
Tape Play: 120 mV
Tape Play DIN:
Main In:
Coaxial FM antenna connection (75 Ohm, 300 Ohm)
AM antenna connection (300 Ohm)
Number of Outputs:
Tape Rec: 150 mV
Tape Rec DIN: 30 mV Pre Out:
2 pairs of loudspeakers
Headphones: 6.3 mm jack each
Technical Data:
Amplifier:
Continuous power: 20- 20 kHz
8 Ohm: 2 x 15 Watt 4 Ohm: 2 x 15 Watt
Continuous power: 1 kHz
8 Ohm: 2 x 20 Watt
4 Ohm: 2 x 25 Watt
Music power:
8 Ohm: 60 W
4 Ohm: 80 W
Total harmonic distortion: 0.5 % at rated power
Attenuation factor:
Frequency response: 15 - 50'000 Hz
Power bandwidth: 15 - 25'000 Hz
Signal-to-noise ratio:
Phono: 65 dB
High Level: 70 dB
Tone control: Equalizer with 5 sliders
Control range: ± 12 dB
Operating frequencies: 40 Hz, 250 Hz, 1 kHz, 5 kHz, 15 kHz
Loudness: yes, + 12 dB at 50 Hz, + 6 dB at 10 kHz
Low Filter:
High Filter:
Muting:
Tuner:
Reception: FM, MW, LW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1600 kHz LW: 150 - 350 kHz
Input sensitivity:
VHF: 2.2 µV
MW: 30 µV
LW: 50 µV
Frequency response: 20 - 15'000 Hz, ± 1 dB
Distortion factor FM: Mono 0.5 %, Stereo 0.8 %
Signal-to-noise ratio:
FM: 60 dB
AM: 55 dB
Stereo channel separation: > 33 dB at 1 kHz
Selectivity:
FM: 60 dB
AM: 30 dB
Co-wave selection: 2.5 dB
Spurious wave selection: 65 dB
Mirror frequency attenuation:
FM: 55 dB
MW: 45 dB
LW: 35 dB
IF attenuation:
FM: 80 dB
MW: 50 dB
AM suppression: 50 dB
Special Features
Microphone Mixer
6.3 mm jack plug on front panel
4-channel prepared
