Фотоволтаична система за електроенергия → Обява 55335169
Фотоволтаична система за електроенергия
Състояние
Ново
Доставка
Купувача
Най-добри цени, защото ние сме вносители!!!
Цени за система 400КвТ
Панели и стойки : 78 000€
Батерия/инвертори/табла/кабели: 105 000 €
Цена 50квт панели и стойки: 12 000€
Цена 100квт панели и стойки: 20 000 €

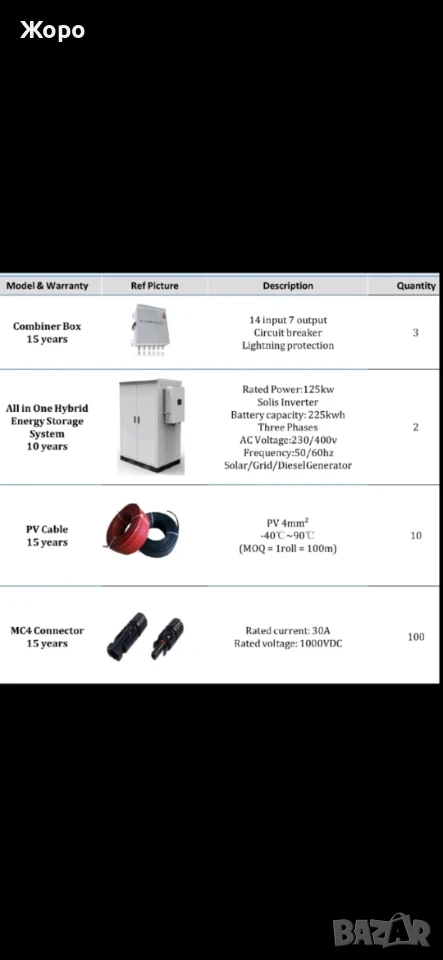

3 × Solis 125 kW хибридни инвертора
450 kWh LFP батерия
Combiner box, кабели, MC4, защити
Пълно оборудване с батерия за 400КвТ система : 105 000€
Panel rating: Tier 1
( JINKO/Trina/Longi/YANGTZE SOLAR )

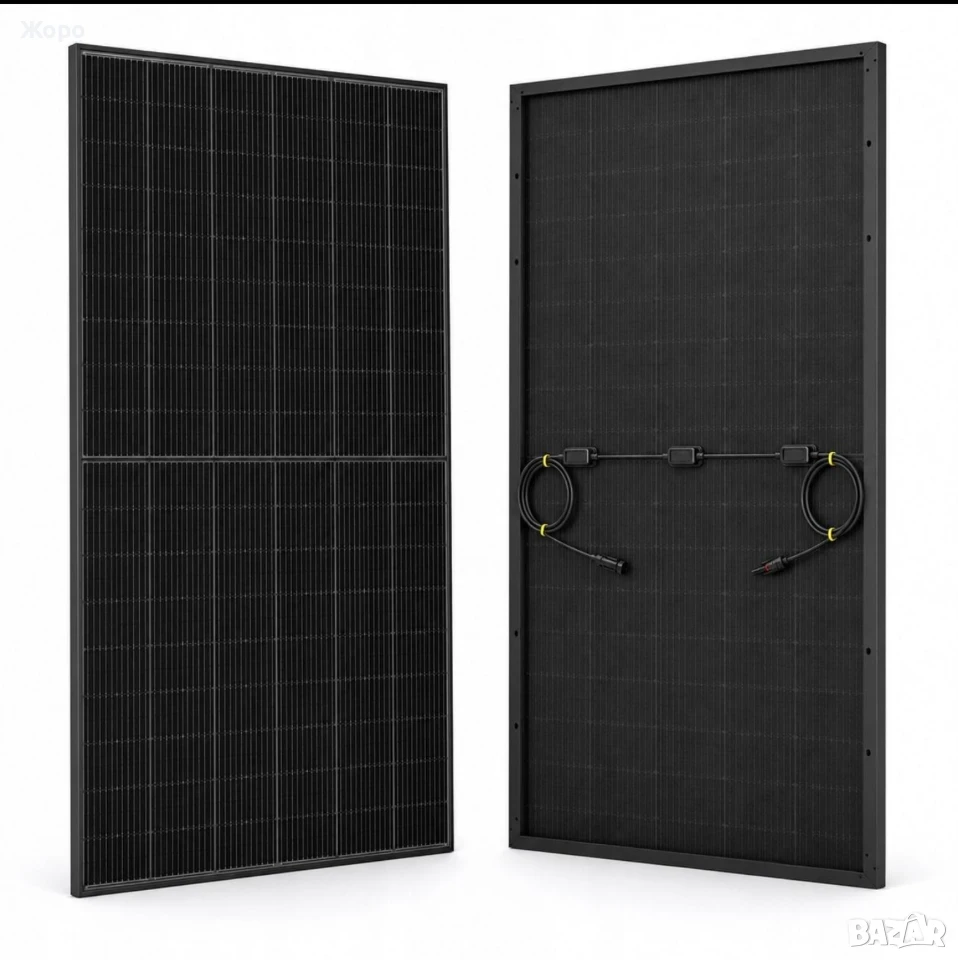

Module type: All-Black Bifacial Dual-Glass Solar Module
Cell technology: N-Type TOPCon
Cell configuration: 108 cells (54 × 2)
SMBB technology: Yes
Bifacial: Yes
Dual glass: Yes
Maximum conversion efficiency: 23.0%
Module efficiency at STC: 22.5%
Electrical Specifications — STC
Maximum power (Pmax): 500 Wp
Maximum power voltage (Vmp): 33.51 V
Maximum power current (Imp): 14.92 A
Open-circuit voltage (Voc): 40.01 V
Short-circuit current (Isc): 15.20 A
Power tolerance: 0 to +3%
STC conditions:
Irradiance: 1000 W/m²
Cell temperature: 25°C
Air mass: AM 1.5
Electrical Specifications — NOCT
Maximum power (Pmax): 333 Wp
Maximum power voltage (Vmp): 30.60 V
Maximum power current (Imp): 10.87 A
Open-circuit voltage (Voc): 37.30 V
Short-circuit current (Isc): 11.30 A
Power tolerance: 0 to +3%
NOCT conditions:
Irradiance: 800 W/m²
Ambient temperature: 20°C
Air mass: AM 1.5
Mechanical Characteristics
Dimensions: 1722 × 1134 × 30 mm
Weight: 24 kg
Cell type: N-Type
Number of cells: 108 (54 × 2)
Front glass: 2.0 mm high-transmission coated glass
Back glass: 2.0 mm semi-tempered glass
Frame: Aluminium alloy frame
Junction box: IP68, 3 bypass diodes
Protection class: Class II
IEC fire rating: Class C
Connector type: MC4
Output cable cross-section: 4.0 mm²
Cable length: 350 mm or customized
Structural and Operating Parameters
Maximum system voltage: 1500 V DC
Operating temperature range: −40°C to +70°C
Nominal operating cell temperature: 45 ± 2°C
Maximum series fuse rating: 25 A
Power tolerance: 0 to +3%
Mechanical Load Capacity
Maximum front-side snow load: 5400 Pa
Maximum front-side wind load: 3600 Pa
Back-side maximum static load stated on page 1: 2400 Pa
Hail resistance: 25 mm diameter hailstones at 23 m/s
Performance and Degradation
Product warranty: 15 years
Linear power warranty: 30 years
First-year degradation: Less than or equal to 1%
Annual degradation from year 2 to year 30: 0.40% per year
Guaranteed power after 30 years: 80.7%
Product Features
N-Type TOPCon technology: Lower LID and LETID degradation and improved low-light performance.
SMBB technology: Improved light utilization, current collection, output power and reliability.
Anti-hot-spot design: Optimized circuit design and lower operating current.
Anti-PID performance: Optimized cell-production technology and material control.
Environmental suitability: Suitable for coastal areas, deserts and lakeside environments.
Positive power tolerance: No negative power tolerance, rated at 0 to +3%.
Certifications
IEC 61215:2021
IEC 61730:2016
ISO 9001:2005 — Quality Management System
ISO 14001:2015 — Environmental Management System
ISO 45001:2018 — Occupational Health and Safety Management System
CE
TÜV
ЦЕНА БЕЗ ДДС ОТ МЯСТО !!!
Цени за система 400КвТ
Панели и стойки : 78 000€
Батерия/инвертори/табла/кабели: 105 000 €
Цена 50квт панели и стойки: 12 000€
Цена 100квт панели и стойки: 20 000 €
3 × Solis 125 kW хибридни инвертора
450 kWh LFP батерия
Combiner box, кабели, MC4, защити
Пълно оборудване с батерия за 400КвТ система : 105 000€
Panel rating: Tier 1
( JINKO/Trina/Longi/YANGTZE SOLAR )
Module type: All-Black Bifacial Dual-Glass Solar Module
Cell technology: N-Type TOPCon
Cell configuration: 108 cells (54 × 2)
SMBB technology: Yes
Bifacial: Yes
Dual glass: Yes
Maximum conversion efficiency: 23.0%
Module efficiency at STC: 22.5%
Electrical Specifications — STC
Maximum power (Pmax): 500 Wp
Maximum power voltage (Vmp): 33.51 V
Maximum power current (Imp): 14.92 A
Open-circuit voltage (Voc): 40.01 V
Short-circuit current (Isc): 15.20 A
Power tolerance: 0 to +3%
STC conditions:
Irradiance: 1000 W/m²
Cell temperature: 25°C
Air mass: AM 1.5
Electrical Specifications — NOCT
Maximum power (Pmax): 333 Wp
Maximum power voltage (Vmp): 30.60 V
Maximum power current (Imp): 10.87 A
Open-circuit voltage (Voc): 37.30 V
Short-circuit current (Isc): 11.30 A
Power tolerance: 0 to +3%
NOCT conditions:
Irradiance: 800 W/m²
Ambient temperature: 20°C
Air mass: AM 1.5
Mechanical Characteristics
Dimensions: 1722 × 1134 × 30 mm
Weight: 24 kg
Cell type: N-Type
Number of cells: 108 (54 × 2)
Front glass: 2.0 mm high-transmission coated glass
Back glass: 2.0 mm semi-tempered glass
Frame: Aluminium alloy frame
Junction box: IP68, 3 bypass diodes
Protection class: Class II
IEC fire rating: Class C
Connector type: MC4
Output cable cross-section: 4.0 mm²
Cable length: 350 mm or customized
Structural and Operating Parameters
Maximum system voltage: 1500 V DC
Operating temperature range: −40°C to +70°C
Nominal operating cell temperature: 45 ± 2°C
Maximum series fuse rating: 25 A
Power tolerance: 0 to +3%
Mechanical Load Capacity
Maximum front-side snow load: 5400 Pa
Maximum front-side wind load: 3600 Pa
Back-side maximum static load stated on page 1: 2400 Pa
Hail resistance: 25 mm diameter hailstones at 23 m/s
Performance and Degradation
Product warranty: 15 years
Linear power warranty: 30 years
First-year degradation: Less than or equal to 1%
Annual degradation from year 2 to year 30: 0.40% per year
Guaranteed power after 30 years: 80.7%
Product Features
N-Type TOPCon technology: Lower LID and LETID degradation and improved low-light performance.
SMBB technology: Improved light utilization, current collection, output power and reliability.
Anti-hot-spot design: Optimized circuit design and lower operating current.
Anti-PID performance: Optimized cell-production technology and material control.
Environmental suitability: Suitable for coastal areas, deserts and lakeside environments.
Positive power tolerance: No negative power tolerance, rated at 0 to +3%.
Certifications
IEC 61215:2021
IEC 61730:2016
ISO 9001:2005 — Quality Management System
ISO 14001:2015 — Environmental Management System
ISO 45001:2018 — Occupational Health and Safety Management System
CE
TÜV
ЦЕНА БЕЗ ДДС ОТ МЯСТО !!!
