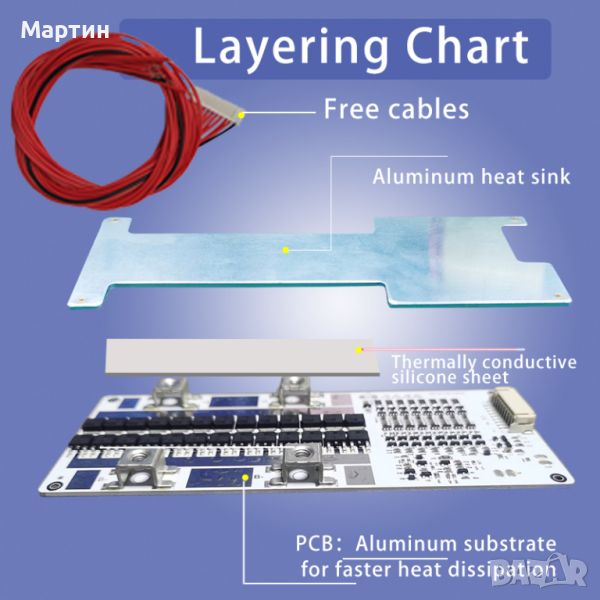

Base Material:Aluminum substrate
Copper Thickness:1oz

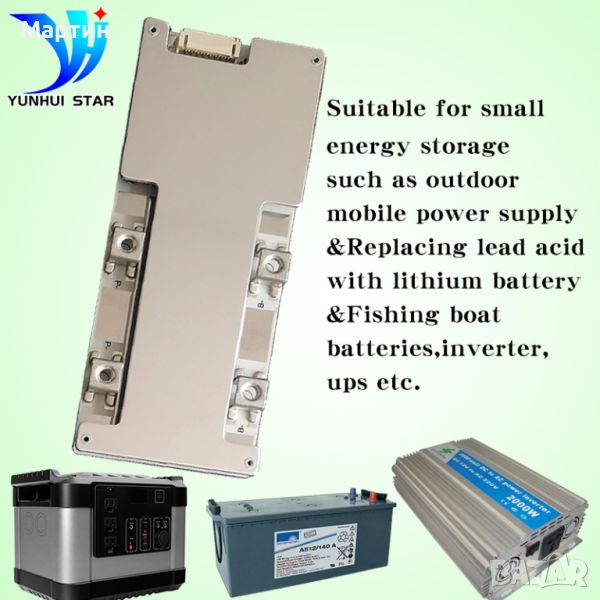

Application:Suitable for small energy storage such as outdoor mobile power supply &Replacing lead acid with lithium battery&Fishing boat batteries,inverter,ups etc.
Type: Electronic Board
PCBA service:SMD SMT DIP Component Assembly
Size:145*60*16mm
common Version :Same port for charge/discharge

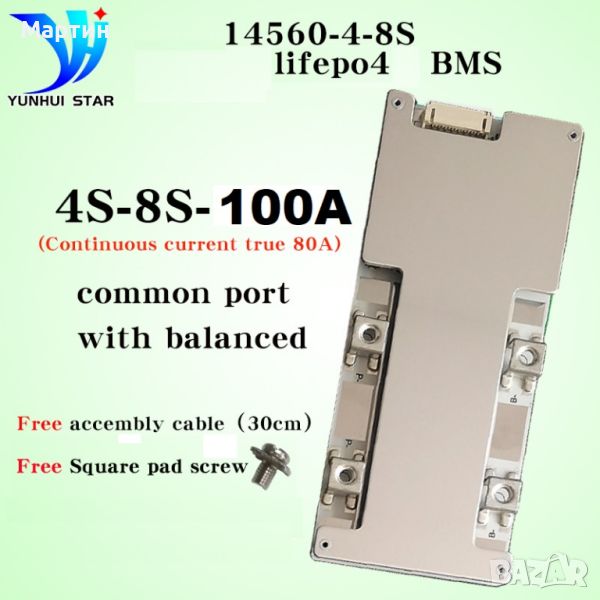

14560-4S-8S- Lifepo4 BMS Electrical parameters
1. Over-charge protection voltage: 3.75±0.025V(Lifepo4);
4.28±0.025V(Li-ion);
2. Over-charge protection delay time:
50-150ms(Li-ion);1000-1600(Lifepo4);
3. Over-charge protection recovery voltage:
3.60±0.05V(Lifepo4);4.08±0.05V(Li-ion);

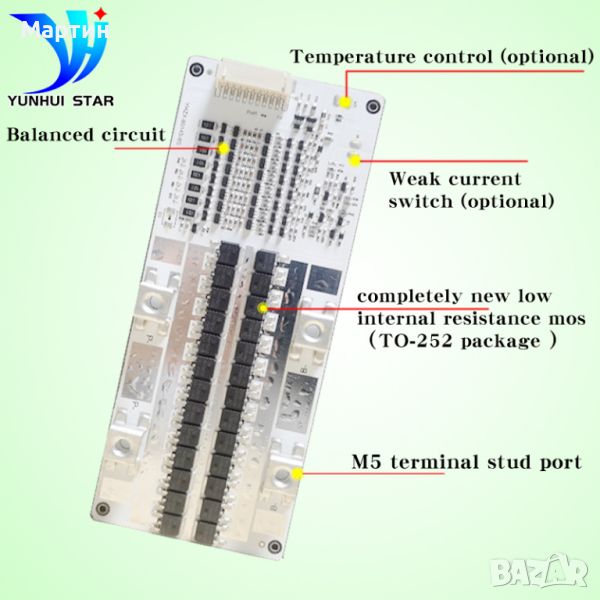

4. Balanced function-Balanced turn-on voltage:
3.60±0.025V(Lifepo4);4.19±0.025V(Li-ion);
5. Balanced current:35±5mA(Lifepo4);40±5mA(Li-ion);
6. Discharge protection -Over-discharge protection voltage:
2.10±0.05V(Lifepo4);2.40±0.10V(Li-ion);
7. Over-discharge protection delay time:
150-250mS(Lifepo4);50-150mS(Li-ion);
8. Over-discharge protection recovery voltage:
2.30±0.05V(Lifepo4);3.00±0.10V(Li-ion);
9. charging current:≤60A;
10. Discharge Working current:≤80A;
11. Discharge Overcurrent 1 protection current value:600±100A;
12. Discharge Overcurrent 1 protection delay time:
5-15mS(Lifepo4);10-30mS(Li-ion);
13. Short circuit protection delay time:
200-400mS(Lifepo4);300-700mS(Li-ion);
14. Short circuit protection recovery:Disconnect load;
15. High temperature protection for Discharging: 70℃(optional);
16. Weak current switch:Can be connected to an external weak current switch to control discharge(optional);
17. Discharge loop internal resistance:≤8mΩ;
18. self-consuming:Operating mode:≤25uA;Sleeping mode:≤10uA;
19. Working temperature:Normal operating range-40-85℃;
