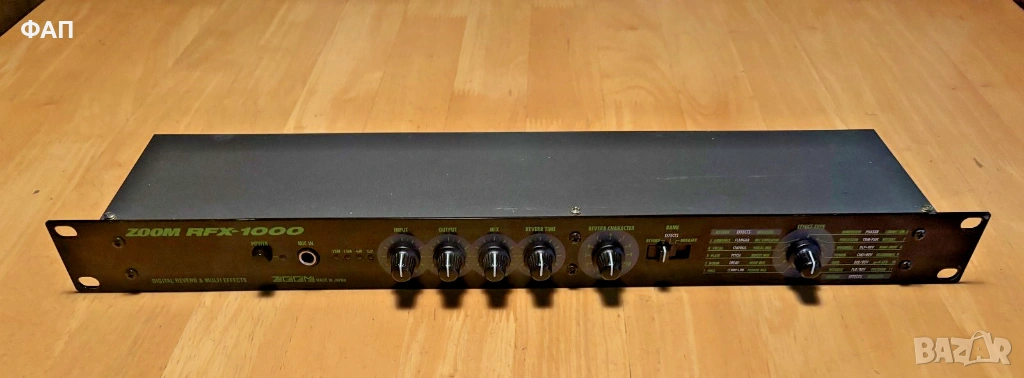

Zoom Rfx 1000 Reverb Multi rack effect
https://www.vintagedigital.com.au/zoom-rfx-1000/
Housed in a standard 1U case and powered from an included mains adaptor, the RFX1000 is a stereo‑in, stereo‑out processor. There is no front‑panel bypass switch — instead a rear‑panel footswitch jack socket is provided for this purpose. Rear‑panel audio connections are via unbalanced jacks operating at a nominal ‑10dBV level, and a further front‑panel jack allows a low‑impedance, unbalanced mic input to be mixed with the line input.
Four rotary pots control input and output levels, wet/dry mix and reverb‑time/parameter adjustment, while input‑level metering is handled by four LEDs. Effects are selected using the Character and Effect Type rotary switches, in combination with a three‑position Bank slide switch. The effects available within the three banks are printed around the Effect Type switch and status LEDs show which bank is active.
ank One offers dedicated reverbs ranging from the usual hall, plate, room and ambience settings to gated and reverse. The Reverb Time knob sets the decay time, while the Character control generally offers variations on the selected reverb type — the exceptions are the gated and reverse settings, where it adjusts the effect's trigger threshold. Next up is the Effects bank, where you'll find a Compressor/Limiter, Delay, Pitch Shifter, Chorus, Flanger, Phaser, Tremolo/Pan, Delay + Reverb, Chorus + Reverb, Delay/Reverb and Flange/Reverb. The last two dual effects provide parallel combinations with the effects on individual channels. Finally comes the Mix & SFX bank, which includes some useful EQ‑based treatments such as cabinet simulation and high‑ or low‑end emphasis. You'll also find rotary‑speaker simulation, ring modulation (with variable modulation oscillator), an envelope‑triggered filter, lo‑fi sound mangling and a rather useful vocoder — 10‑ and 18‑band vocoding is available with options for adding distortion and/or chorus. You can use either the front panel mic input or the right input channel as the vocoder's vocal input, with the synth or other sound being processed going in the left input.
Предлага се без захраващ адаптер. Необходим е 12 волта АЦ.
Има такива приемерно в Amazon - 6 euro.
