Много добър кит контролер с дисплей 24 36 48v 350-500w → Обява 53541952

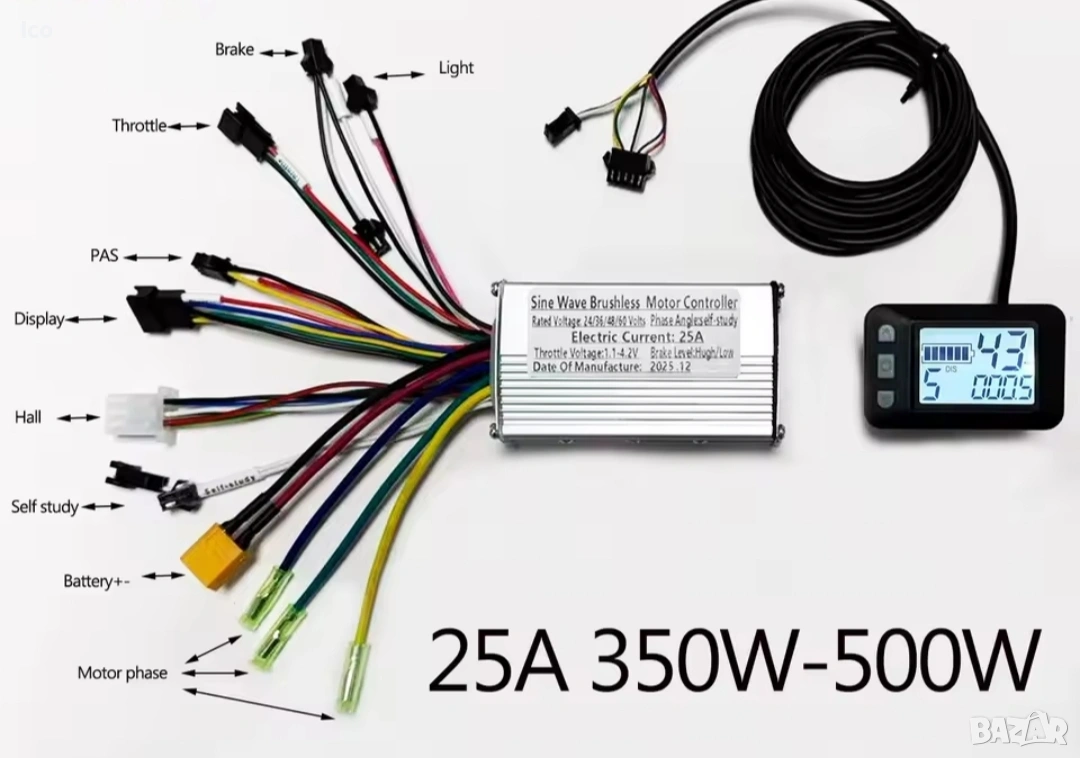

Много добър кит контролер с дисплей 24 36 48v 350-500w
Самообучаващ се,с изключително много настройки в подменю.
Settings
P01: Backlight Brightness, Level 1 is dimmest, Level 3 is brightest;
PO2: Speed Unit, O: km/h; 1: mp/h;
PO3: Voltage Level: 24V, 36V, 48V, default 36V;
PO4: Sleep Time: 0, no sleep; other numbers are sleep time, range: 1-60; unit: minutes;
P05: Assist Levels: 0-3 mode, 0-5 mode;
P06: Wheel Diameter: unit: inch; precision: 0.1;
P07: Speed Measuring Magnet Count: Range: 1-255;
P08: Speed Limit: Range 0-100km/h, 100 indicates no speed limit;
1. Communication Status (Controller Control): Drive speed maintained at the set value,
Error: ±1km/h; (both power assist and throttle spee
PO9: Zero Start/Non-Zero Start Setting, O: Zero Start; 1: Non-Zero Start;
P10: Drive Mode Setting, O: Power Assist Drive (the amount of power assistance is determined by the power assist gear; the throttle is ineffective in this mode).
1: Electric Drive (driven by the throttle; the power assist gear is ineffective in this mode).
2: Power Assist Drive and Electric Drive Coexist (electric drive is ineffective in zero start state).
P11: Assist Sensitivity Setting 1-24
P12: Assist Start Intensity Setting 0-5
P13: Assist Magnet Type Setting: 5, 8, or 12 magnets
P14: Controller Current Limit Setting: Default 12A, Range: 1-20A
P15: Controller Undervoltage Value
P16: Cruise Control Options: 0: Cruise Control Off, 1: Cruise Control On
P17: ODO Reset Setting: Press and hold the up button for 5 seconds to reset ODO.
Settings
P01: Backlight Brightness, Level 1 is dimmest, Level 3 is brightest;
PO2: Speed Unit, O: km/h; 1: mp/h;
PO3: Voltage Level: 24V, 36V, 48V, default 36V;
PO4: Sleep Time: 0, no sleep; other numbers are sleep time, range: 1-60; unit: minutes;
P05: Assist Levels: 0-3 mode, 0-5 mode;
P06: Wheel Diameter: unit: inch; precision: 0.1;
P07: Speed Measuring Magnet Count: Range: 1-255;
P08: Speed Limit: Range 0-100km/h, 100 indicates no speed limit;
1. Communication Status (Controller Control): Drive speed maintained at the set value,
Error: ±1km/h; (both power assist and throttle spee
PO9: Zero Start/Non-Zero Start Setting, O: Zero Start; 1: Non-Zero Start;
P10: Drive Mode Setting, O: Power Assist Drive (the amount of power assistance is determined by the power assist gear; the throttle is ineffective in this mode).
1: Electric Drive (driven by the throttle; the power assist gear is ineffective in this mode).
2: Power Assist Drive and Electric Drive Coexist (electric drive is ineffective in zero start state).
P11: Assist Sensitivity Setting 1-24
P12: Assist Start Intensity Setting 0-5
P13: Assist Magnet Type Setting: 5, 8, or 12 magnets
P14: Controller Current Limit Setting: Default 12A, Range: 1-20A
P15: Controller Undervoltage Value
P16: Cruise Control Options: 0: Cruise Control Off, 1: Cruise Control On
P17: ODO Reset Setting: Press and hold the up button for 5 seconds to reset ODO.
