Name: BMS защитен модул за Li-ion батерии 2S, 8.4V, 25A Balancing version
Brand: Bazar.bg
SKU: 53996350
Price: 6 EUR
Availability: InStock

BMS защитен модул за Li-ion батерии 2S, 8.4V, 25A Balancing version → Обява 53996350

гр. Пловдив, Въстанически Наблюдавай

Публикувана/обновена на 12 октомври в 14:09 ч.

Състояние

Ново

Доставка

Купувача

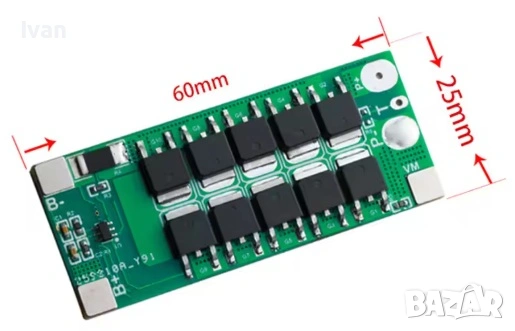

2S 25A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Balancing Version

BMS Specifications:li-ion 2S 25A
Charging voltage:N*4.2V

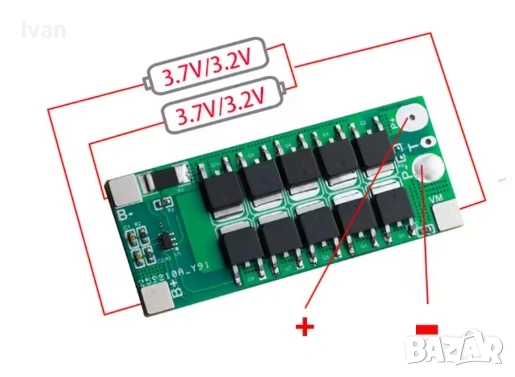

Wiring:Common Port
Discharge current:25A
Charging current:15A
Main circuit conduction internal resistance:≤30mΩ
Discharge overcurrent protection:50A
Product Size:55*26*3mm
cable: /

Overcharge protection
Detection voltage:4.28V±0.025V
Detection delay:100±50MS
Release voltage:4.08±0.05V

Over-discharge voltage protection
Detection voltage:2.25±0.1V
Detection delay:100±50MS
Release voltage:3.0±0.1V

Short circuit protection

Trigger condition:external short circuit
Detection delay:<350us
Release condition:disconnect the load

Disconnection protection
Trigger condition: Any set of battery cables is disconnected,cut off output and input
Release condition: restore the cable connection

Self-consumption
Working power consumption:<20UA

Sleep over-discharge power consumption:<10UA
Working temperature range:-30°~+80°C
